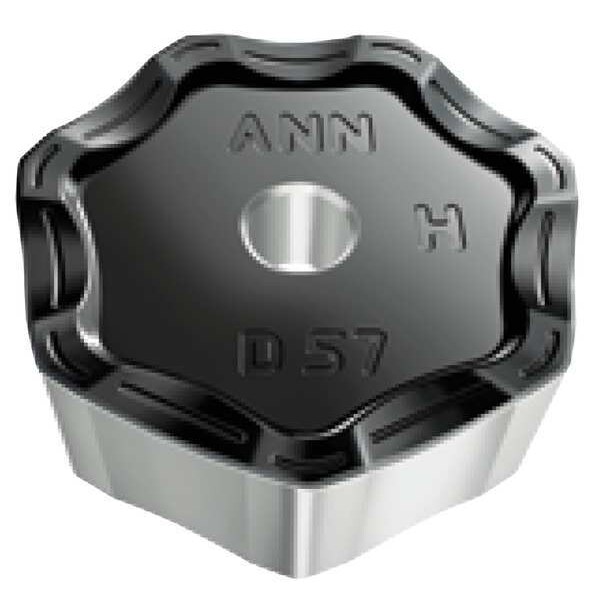

Heptagon XNHF Carbide
| Item | Heptagon Milling Insert |
|---|---|
| Insert Style | XNHF |
| Insert Shape | Heptagon |
| Insert Size | 70,508 |
| Insert Material | Carbide |
| Corner Radius | 0.8 mm |
| Hardened (H) Compatibility | No |
| ANSI Number | XNHF070508-D27 WKP25S |
| No. of Edges | 14 |
| Cast Iron (K) Compatibility | Yes |
| Nose Radius | 0.031 in |
| Coating | CVD |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Grade | WKP25S |
| Rake | Negative |
| Insert Application | Roughing |
| Cutting Direction | Right Hand |
| Steel (P) Compatibility | Yes |
| Insert Thickness | 0.228 in |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | No |
| Mounting Style | Clamp Held |
| Chip-Breaker | Yes |
| For Use With | F4045 Cutter |
| Inscribed Circle | 14.5 mm |
| Super Alloy (S) Compatibility | No |
| ISO Number | XNHF070508-D27 WKP25S |
| Coating Process | CVD |
| Measurement System | Metric |
| Chip-Breaker Style | 10 deg (Chipbreaker Groove) |
| For Toolholder | F4045.B27.063.Z09.04, F4045.B27.080.Z11.04, F4045.B32.100.Z14.04, F4045.B40.125.Z18.04, F4045.B40.160.Z22.04, F4045.B60.200.Z28.04 |
| Insert Holding Type | Clamp |
| Number of Cutting Edges | 14 |
| Primary Material Application ISO Code | P, K |
| Shape | Heptagon |
| ANSI Code | XNHF070508-D27 WKP25S |
| Hole Type | No Hole |
| Clearance Angle | 0 deg |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Material - Machining | Carbide |
| Thickness | 0.228 in |
| Manufacturer Grade | WKP25S |
| Chip-Breaker Code | D27 |
| Cutting Application | Roughing |
| Primary Material Application | Cast Iron, Steel |
| Cutting Edge Length | 7 mm |
| Package Quantity | 1 |
