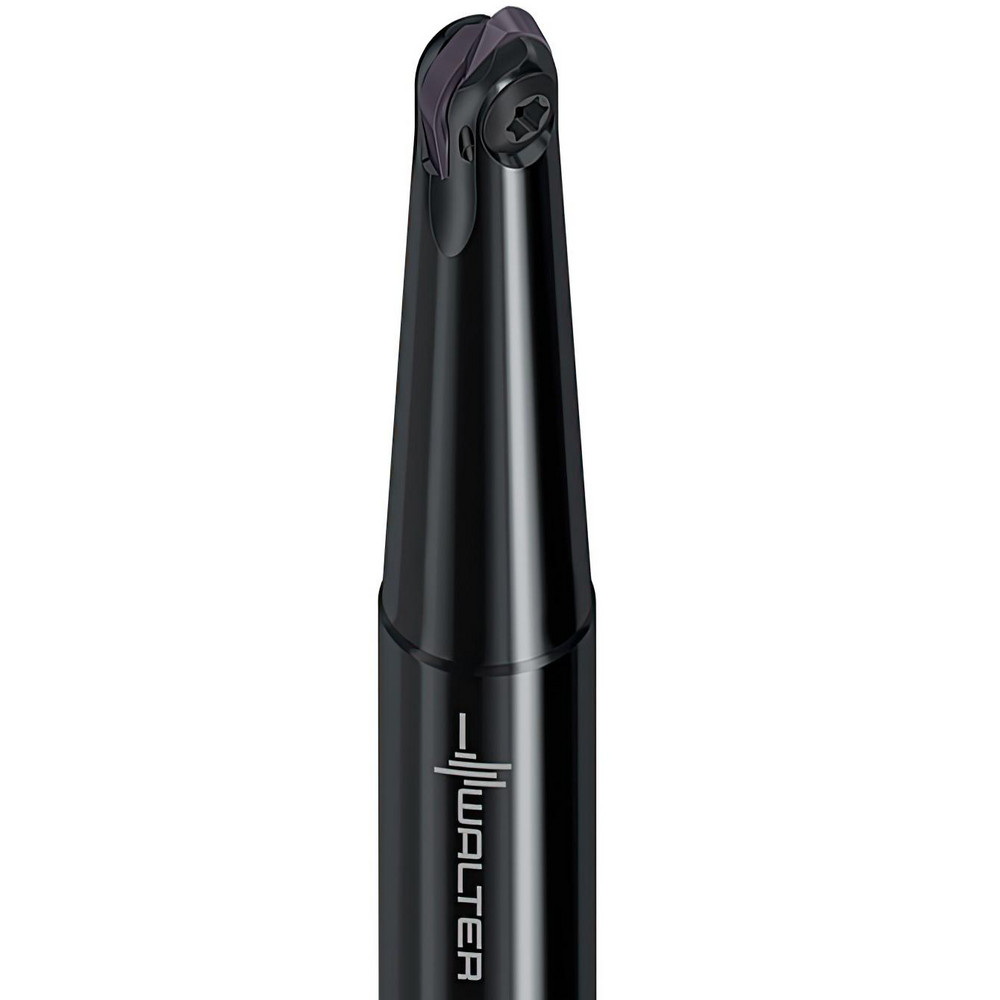

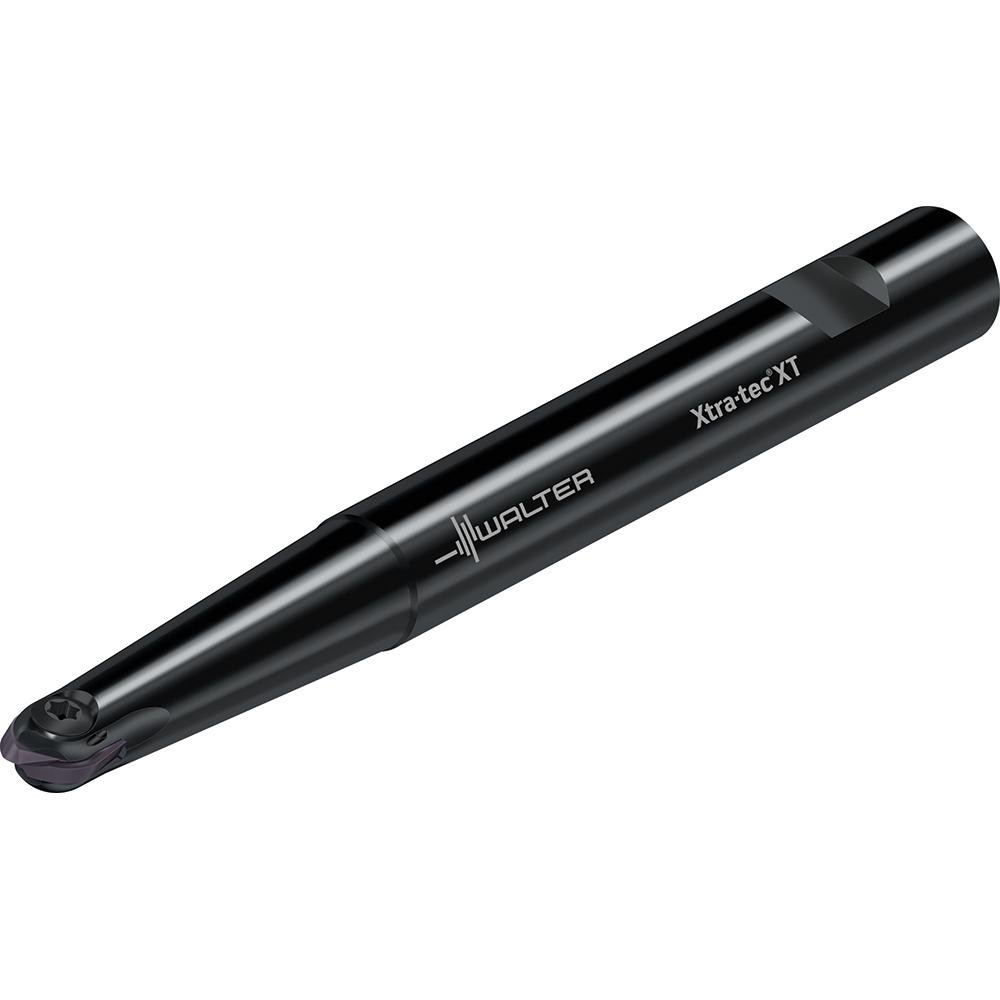

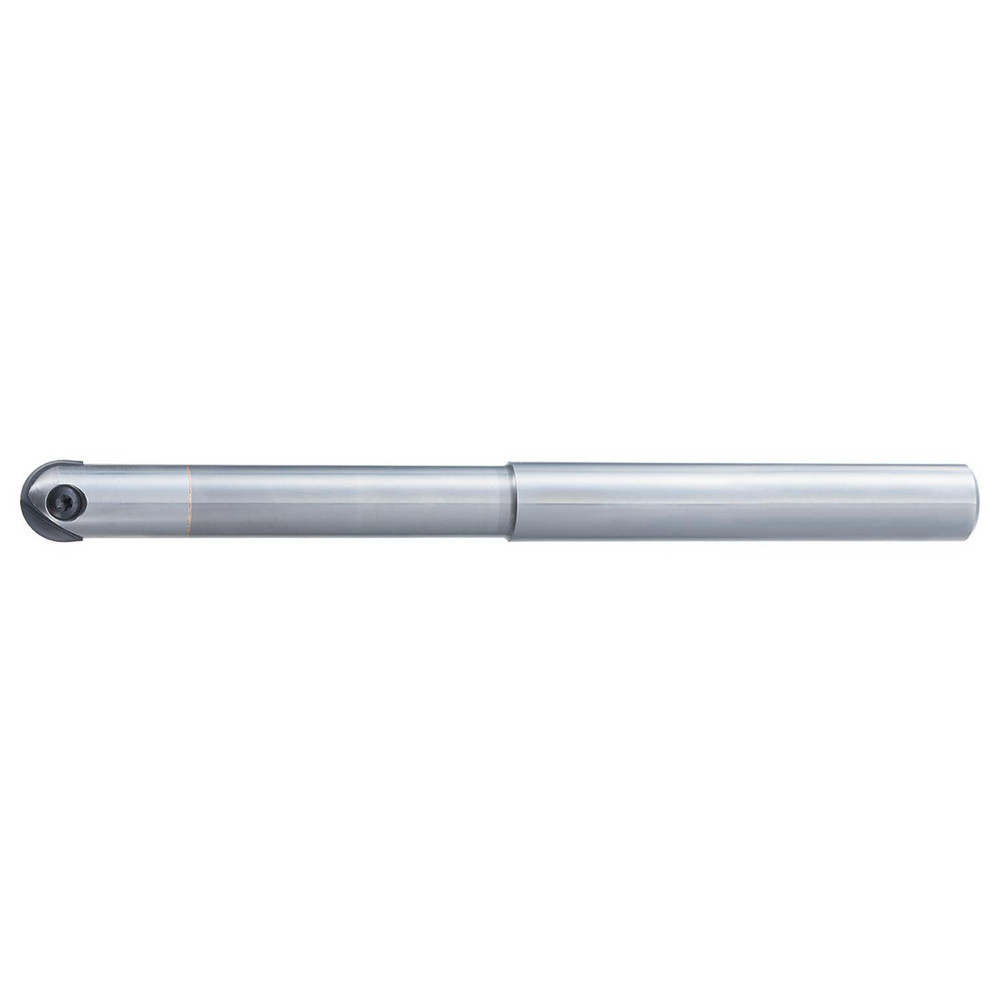

Uses (1) P3201 & P3204 Insert, 1-1/4" Weldon Flat Shank, Through Coolant
| Cutting Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw |
| Compatible Insert Style | P3204; P3201 |
| Compatible Insert Size Code | D25.40 |
| Toolholder Style | M5460 |
| Tapered Neck | Yes |
| Overall Length (Decimal Inch) | 8.2700 |
| Series | M5460-W-INCH |
| Body Half Taper Angle | 3 |
| Tool Application | Profile Milling |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Flutes | 1 |
| Coolant Through | Yes |
| Number Of Inserts | 1 |
| UNSPSC Code | 27112803 |
| Country of Origin | Germany |
| MSC Number | MSC# 80261324 |
