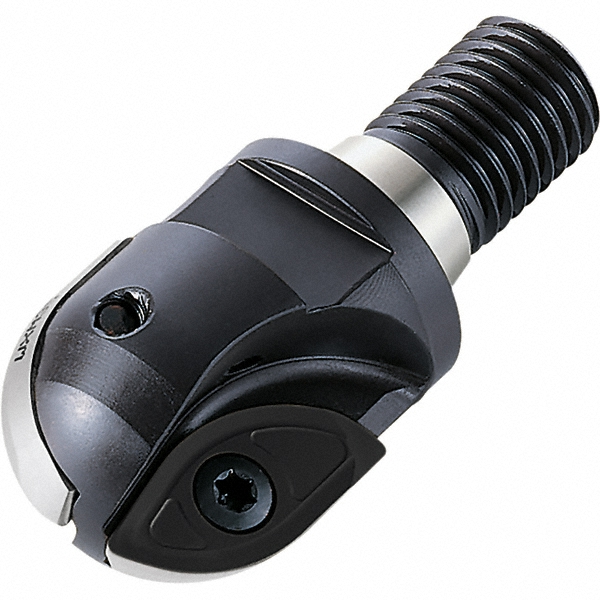

Uses (2) XD . T4009250R Inserts, 1.772" Shank Dia, Through Coolant

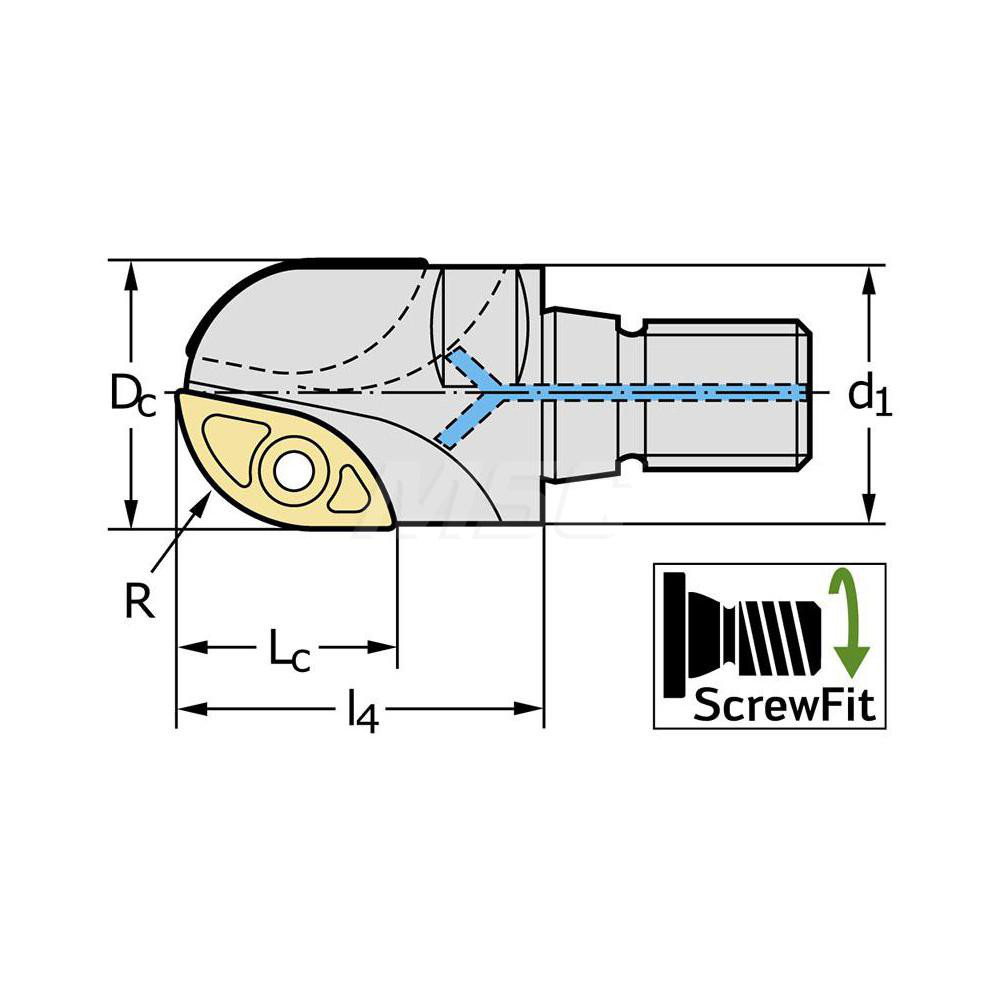

| Cutting Diameter (Decimal Inch) | 1.9690 |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (mm) | 40.00 |
| Shank Diameter (Inch - 0 Decimals) | 1.772 |
| Shank Diameter (Decimal Inch) | 1.7720 |
| Shank Diameter (mm) | 45.00 |
| Insert Holding Method | Screw |
| Compatible Insert Style | XD . T4009250R |
| Toolholder Style | F2339 |
| Overall Length (Decimal Inch) | 3.7400 |
| Overall Length (mm) | 95.00 |
| Series | F2339-T-FORMA |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3620 |
| Maximum RPM | 11900 |
| Tool Application | Milling |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Superalloy; Titanium |
| Secondary Workpiece Material Code | S; H |
| Standards | ISO; ANSI |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number Of Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | China |
| MSC Number | MSC# 41802752 |
