Uses SP120408 P26315R31 Inserts, 2.48" Shank Dia, Through Coolant
| Cutting Diameter (Decimal Inch) | 2.4800 |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 2.0870 |
| Maximum Depth of Cut (mm) | 53.00 |
| Shank Diameter (Inch - 0 Decimals) | 2.480 |
| Shank Diameter (Decimal Inch) | 2.4800 |
| Shank Diameter (mm) | 63.00 |
| Insert Holding Method | Screw |

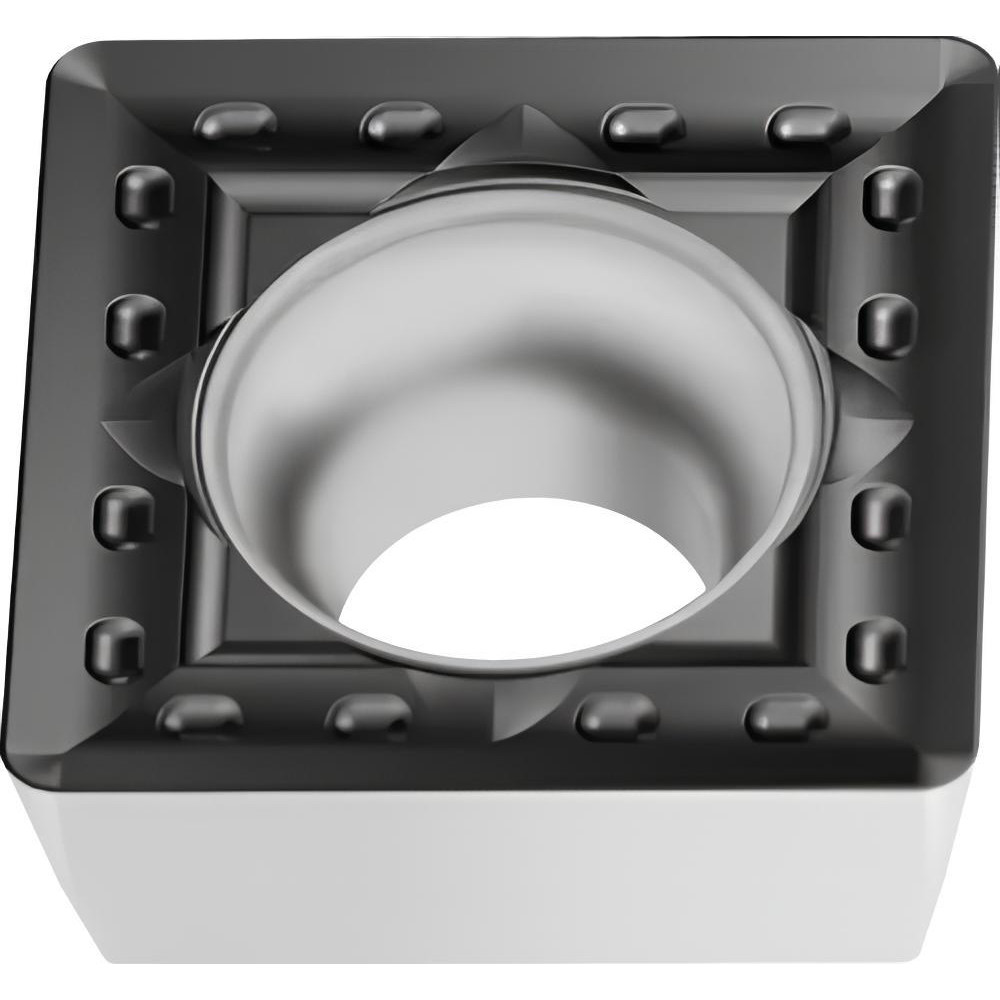

| Compatible Insert Style | SP120408 P26315R31 |
| Toolholder Style | F2239 |
| Overall Length (Decimal Inch) | 3.7800 |
| Overall Length (mm) | 96.00 |
| Series | F2239-N |
| Head Length (mm) | 80.00 |
| Head Length (Decimal Inch) | 3.1500 |
| Maximum RPM | 6000 |
| Tool Application | Milling |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Secondary Workpiece Material Code | S; M |
| Standards | ISO; ANSI |
| Number Of Flutes | 1 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 47277256 |
