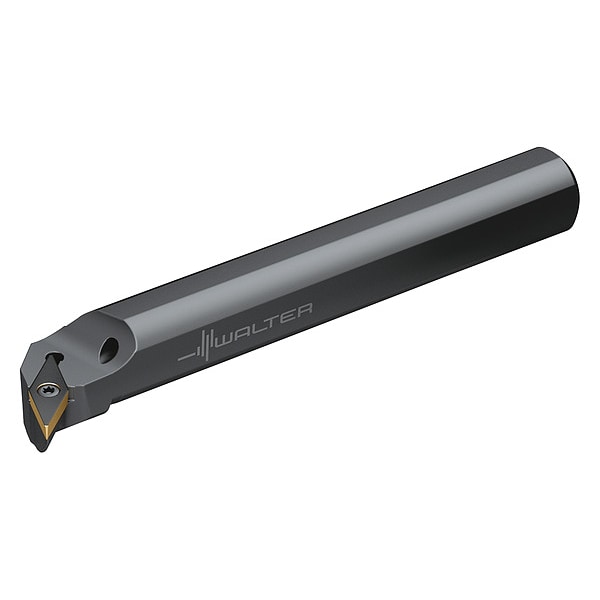

Indexable Boring Bar, 200.00mm L, High Speed Steel, 35 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 200 mm |
| Shank Material | High Speed Steel |
| Insert Shape | 35 Degrees Diamond |
| Mounting Style | Screw Clamp |
| Cutting Edge Type | 0 Degrees |
| Lead Angle | 107 Degrees |
| Style | 107 Degrees Boring and Facing |
| Bar Dia. | 0.63 in |
| Type | Coolant Thru |
| ANSI Number | A16R-SVQBR11 |
| Rake | Positive |
| Min. Bore | 0.787 in |
| For Use With | VB/C1103 Series |
| Left/Right Hand | Right Hand |
| Includes | FS1490 Torx Key, FS2172 Clamping Screw |
| Insert Size | 1,103 |
| Cutting Direction | Right Hand |
| Shank Dia. | 16 mm |
| Number of Coolant Holes | 1 |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Max. Bore Depth | 64 mm |
| Insert Clearance Angle | 5 deg |
| Center to Cutting Tip | 13 mm |
| Secondary Material Application ISO Code | H |
| Secondary Material Application | Hardened Steel |
| Head Material | Steel |
| Primary Material Application | Nickel, Titanium, Cast Iron, Stainless Steel, Steel |
| Insert Style | VB |
| Coolant Fed | Coolant Through |
| Primary Material Application ISO Code | S, N, P, M, K |
| ISO Number | A16R-SVQBR11 |
| Approach Angle | 107.5 deg |
| Insert Holding Type | Screw On |
| Min. Bore Dia. | 22 mm |
| Number of Inserts | 1 |
| Compatible Hardware | FS1490 Torx Key, FS2172 Clamping Screw |
| Package Quantity | 1 |
