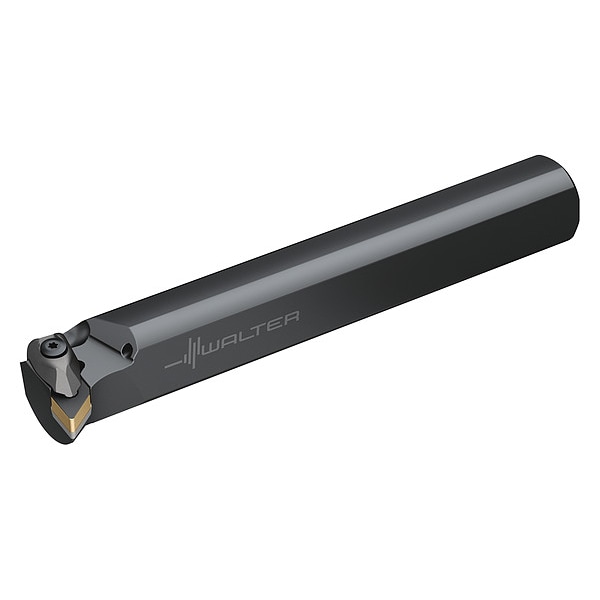

Indexable Boring Bar, 350.00mm L, High Speed Steel, 55 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 350 mm |
| Shank Material | High Speed Steel |
| Insert Shape | 55 Degrees Diamond |
| Style | 93 Degrees Boring and Facing |
| Rake | Negative |
| Left/Right Hand | Right Hand |
| Min. Bore | 2.48 in |
| Cutting Edge Type | -6 Degrees |
| ANSI Number | A50U-DDUNR15 |
| Bar Dia. | 1.968 in |
| Type | Coolant Thru |
| Mounting Style | Top and Hole Clamping |
| Lead Angle | 93 Degrees |
| For Use With | DN1506 Series |
| Cutting Direction | Right Hand |
| Shank Dia. | 50 mm |
| Insert Size | 1,506 |
| Includes | AP304-DN15 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin |
| Side Cutting Edge Angle | -6 deg |
| Min. Bore Dia. | 63 mm |
| Secondary Material Application ISO Code | M |
| ISO Number | A50U-DDUNR15 |
| Insert Holding Type | Clamp |
| Number of Coolant Holes | 1 |
| Compatible Hardware | AP304-DN15 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin |
| Insert Clearance Angle | 0 deg |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Insert Style | DN |
| Primary Material Application ISO Code | S, K, H |
| Number of Inserts | 1 |
| Coolant Fed | Coolant Through |
| Max. Bore Depth | 200 mm |
| Center to Cutting Tip | 35 mm |
| Approach Angle | 93 deg |
| Secondary Material Application | Stainless Steel |
| Head Material | Steel |
| Primary Material Application | Nickel, Titanium, Cast Iron, Hardened Steel, Steel |
| Package Quantity | 1 |
