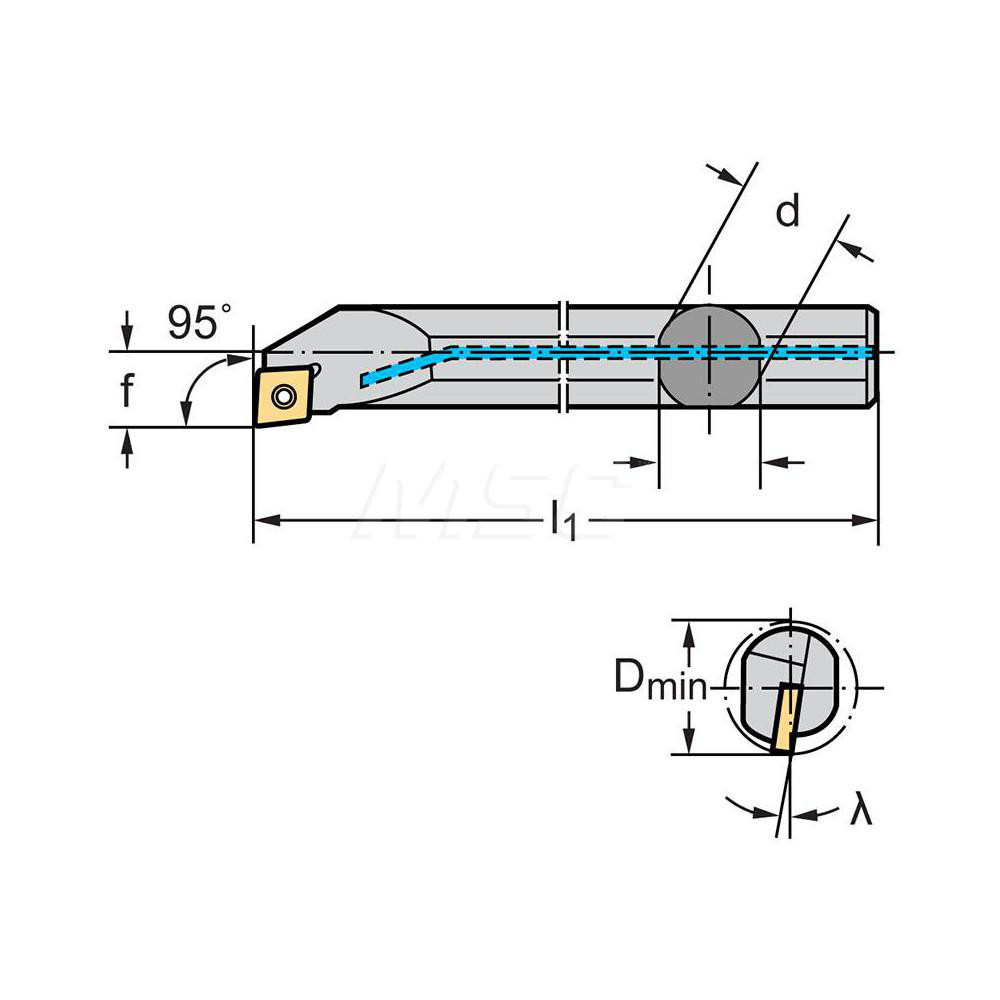

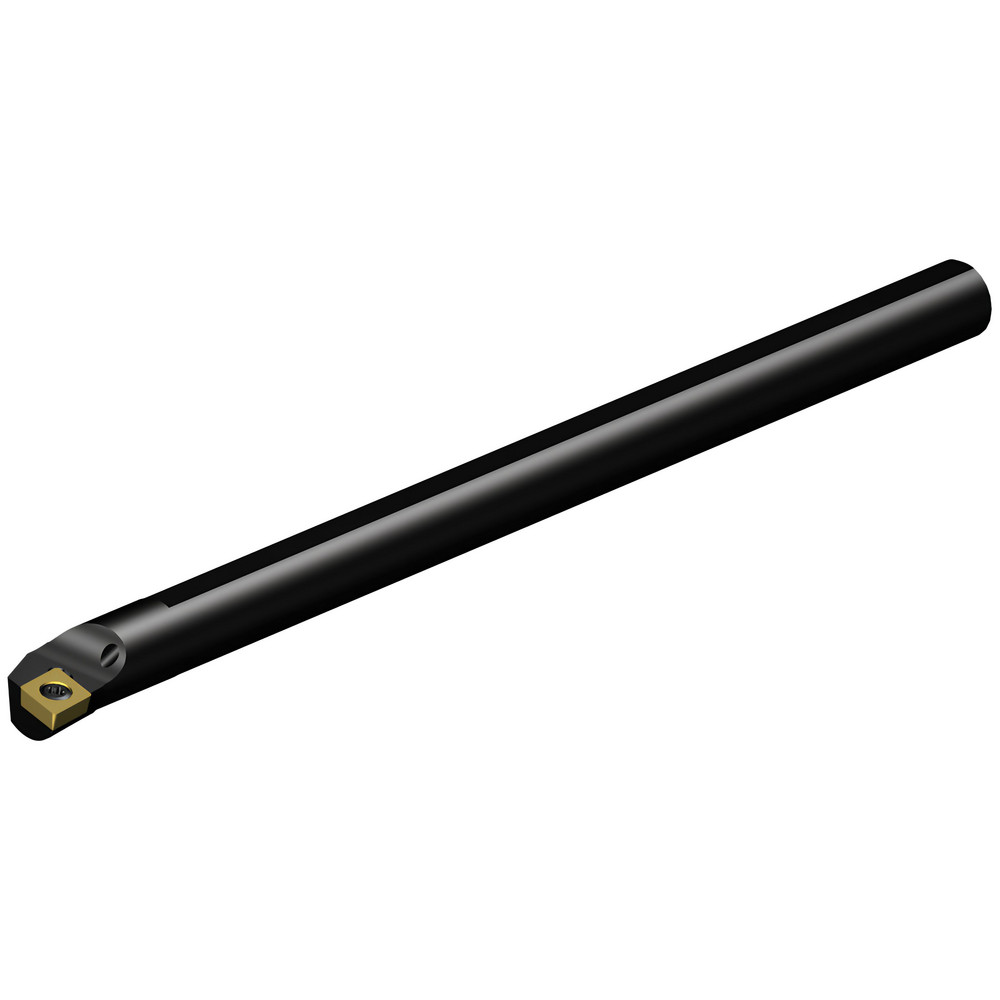

152.40 mm OAL, Screw Clamping
| Minimum Bore Diameter (mm) | 12.20 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.4130 |
| Toolholder Style | A-SCLPL2 |
| Tool Material | Steel |
| Shank Diameter (mm) | 9.53 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |

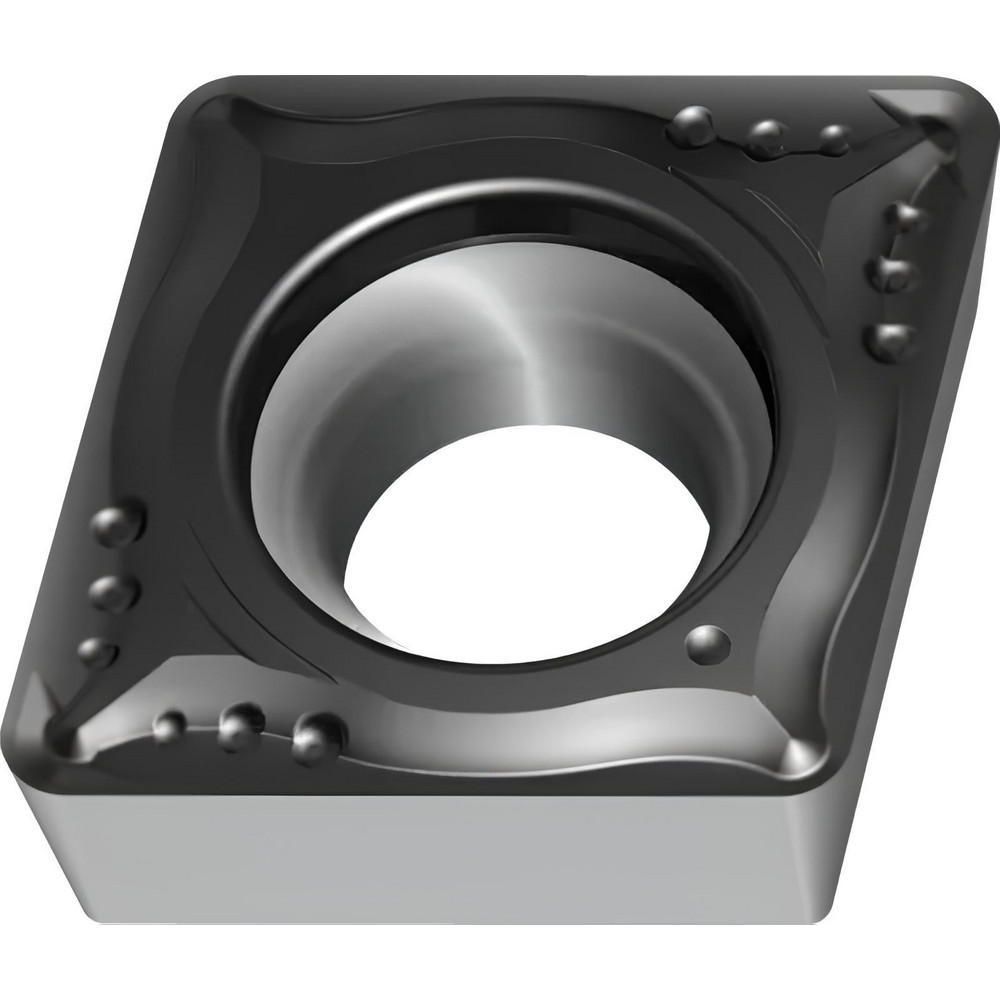

| Compatible Insert Size Code | 060202; 060204; 2(1.5)0.2; 060208; 2(1.5)2; 2(1.5)1 |

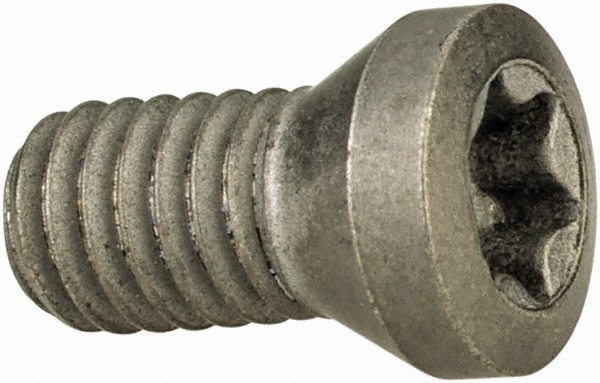

| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Rake | Positive |
| Rake Angle | 4.00 |
| Lead Angle | 95 |
| Series | Walter Turn |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Center to Cutting Edge (Inch) | 1/4 |
| Standards | ISO; ANSI |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 98581150 |
