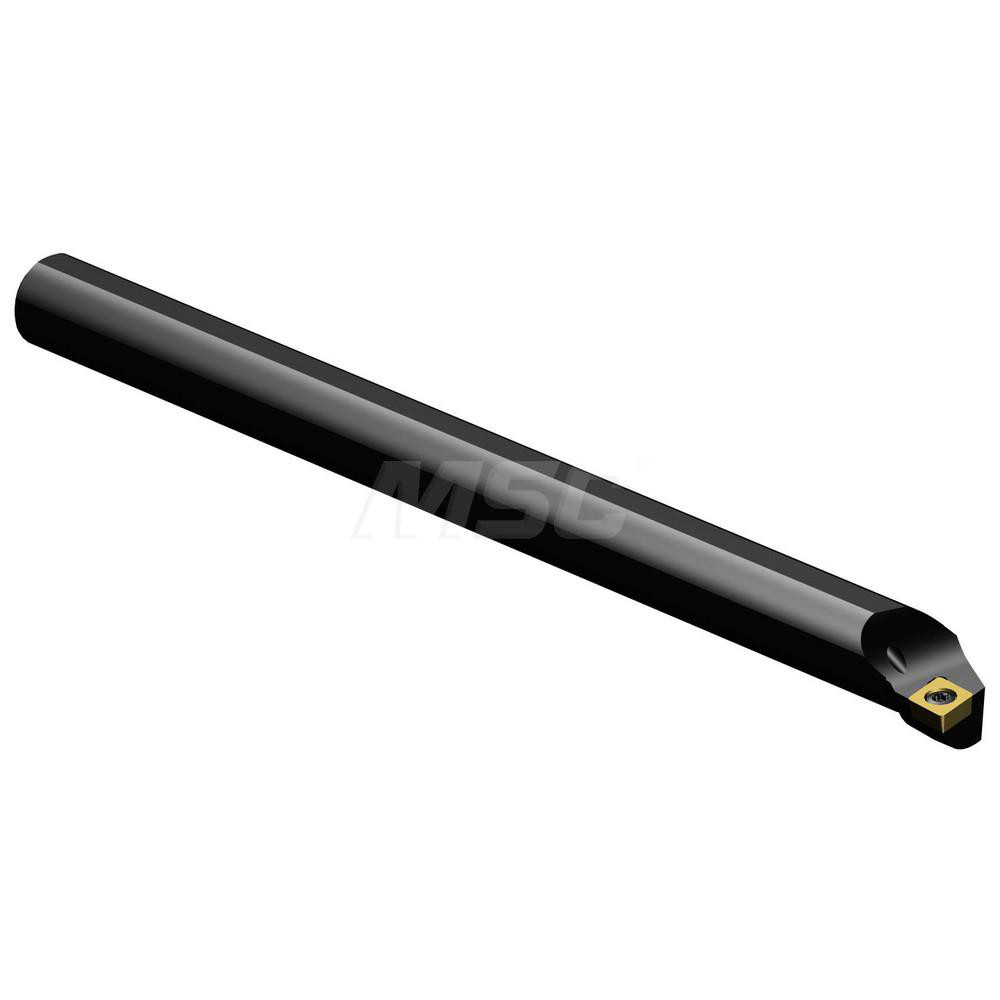

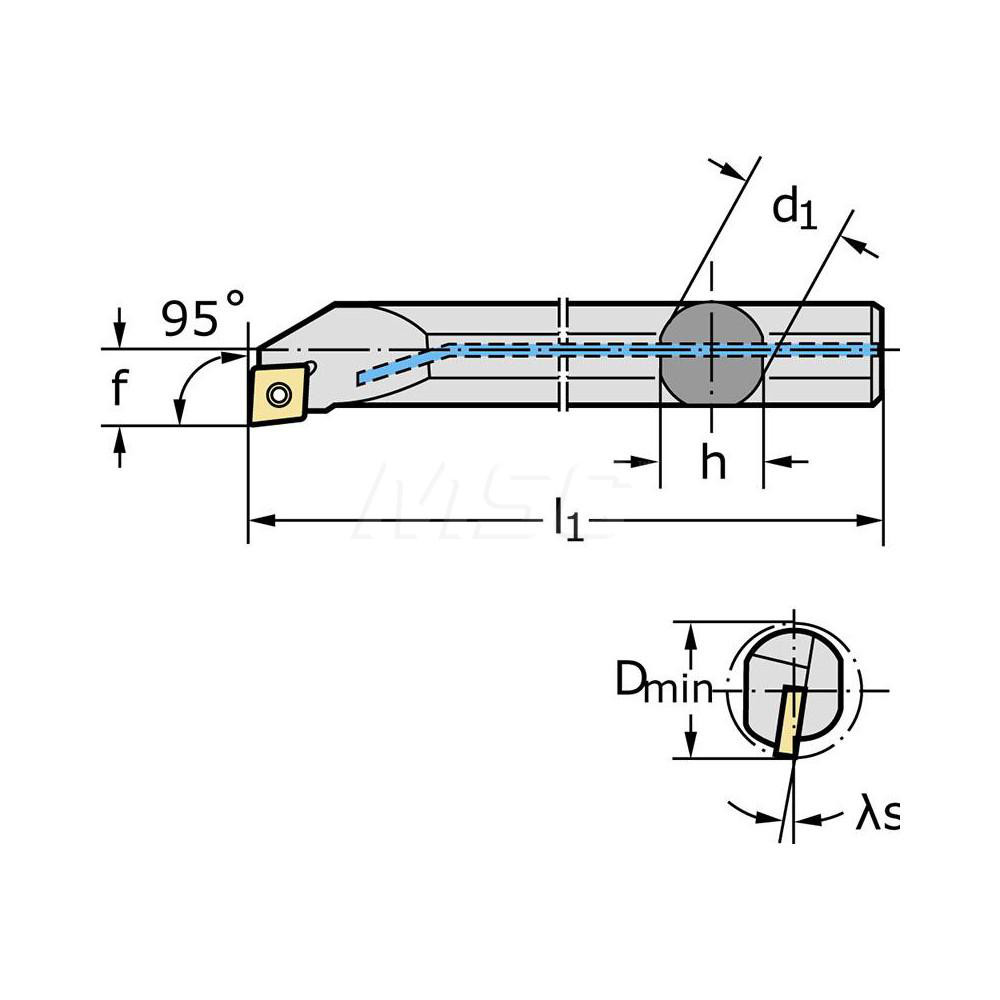

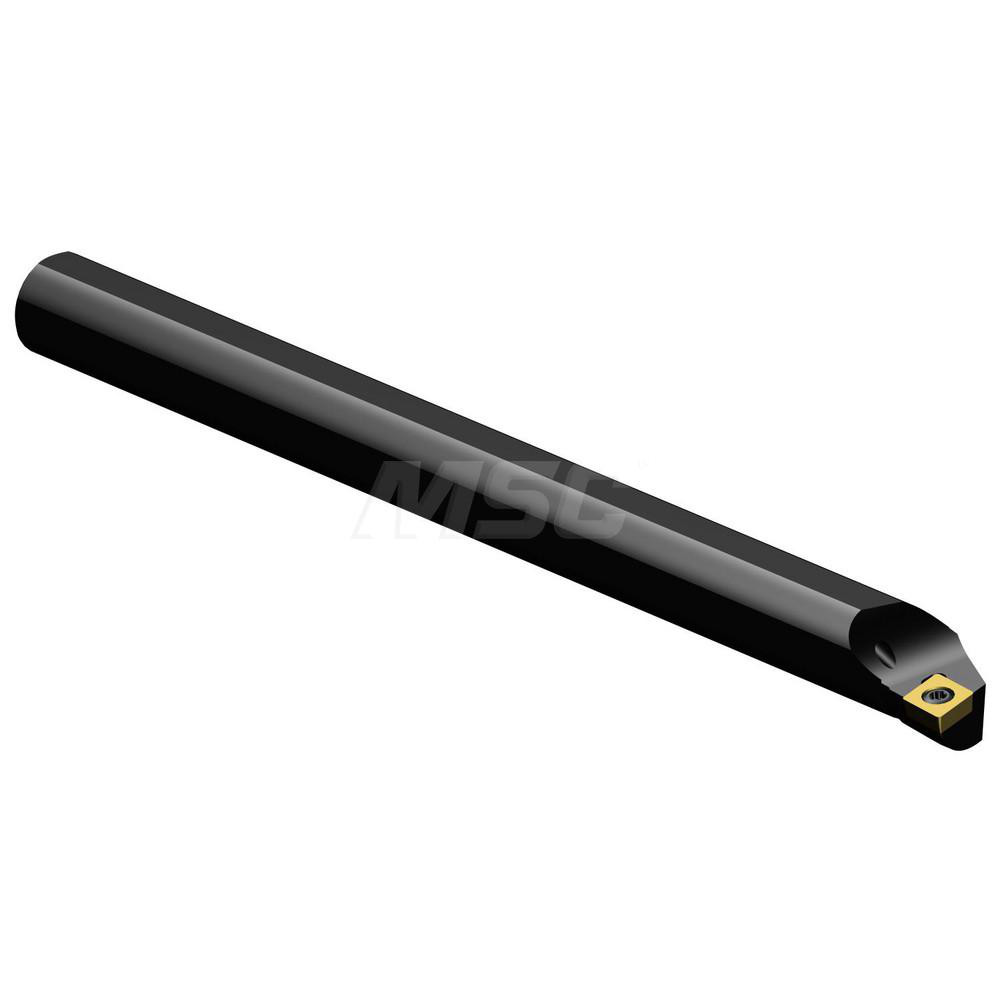

152.40 mm OAL, Screw, Uses CC.. 0602.. & CC.. 21.5.. Inserts
| Minimum Bore Diameter (mm) | 15.19 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.5980 |
| Toolholder Style | A-SCLC |
| Tool Material | Steel |
| Insert Compatibility | CC.. 21.5..; CC.. 0602.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Compatible Insert Size Code | 21.5; 0602 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral |
| Lead Angle | 95 |
| Series | Walter Turn |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3120 |
| Center to Cutting Edge (mm) | 7.92 |
| Standards | ISO; ANSI |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 53041562 |
