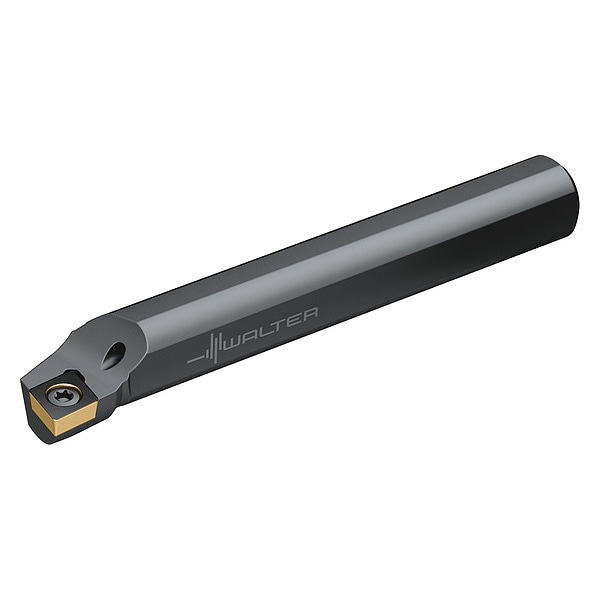

Indexable Boring Bar, A10R-SCLCL3, 8 in L, High Speed Steel, 80 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 8 in |
| Shank Material | High Speed Steel |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | A10R-SCLCL3 |
| Mounting Style | Screw Clamp |
| Lead Angle | 95 Degrees |
| Style | 95 Degrees Boring and Facing |
| Bar Dia. | 0.393 in |
| Min. Bore | 0.77 in |
| Rake | Positive |
| Cutting Edge Type | 0 Degrees |
| For Use With | CC3(25), CC09T3 Series |
| Left/Right Hand | Left Hand |
| Type | Coolant Thru |
| ANSI Number | A10R-SCLCL3 |
| Includes | FS1465 Torx Key, FS2062 Clamping Screw |
| Cutting Direction | Left Hand |
| Shank Dia. | 5/8 in |
| Number of Coolant Holes | 1 |
| Center to Cutting Tip | 13/32 in |
| Coolant Fed | Coolant Through |
| Insert Clearance Angle | 7 deg |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Secondary Material Application | Hardened Steel |
| Approach Angle | 95 deg |
| Head Material | Steel |
| Max. Bore Depth | 2-1/2 in |
| Compatible Hardware | FS1465 Torx key, FS2062 Clamping Screw |
| Side Cutting Edge Angle | 0 deg |
| Insert Holding Type | Screw On |
| Secondary Material Application ISO Code | H |
| Primary Material Application | Nickel, Titanium, Cast Iron, Stainless Steel, Steel |
| Primary Material Application ISO Code | S, N, P, M, K |
| Number of Inserts | 1 |
| Toolholder Style | A-SCLC |
| Min. Bore Dia. | 0.772 in |
| Package Quantity | 1 |
