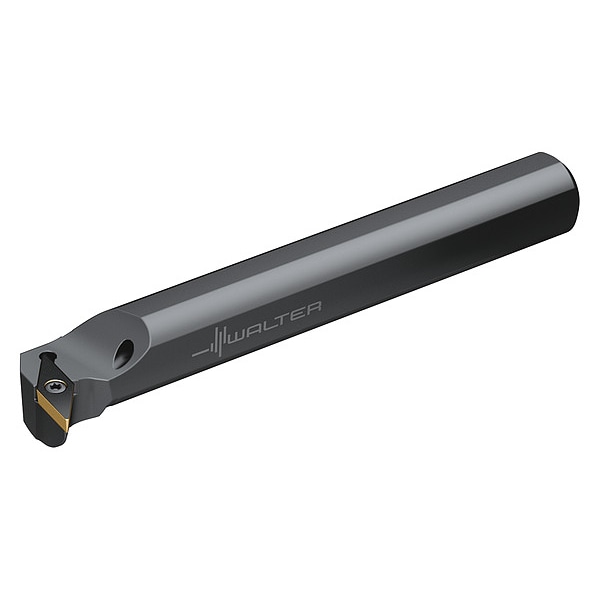

Indexable Boring Bar, A12S-SVUBL2, 10 in L, High Speed Steel, 35 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 10 in |
| Shank Material | High Speed Steel |
| Insert Shape | 35 Degrees Diamond |
| ANSI Code | A12S-SVUBL2 |
| Lead Angle | 93 Degrees |
| Bar Dia. | 0.472 in |
| Mounting Style | Screw Clamp |
| Type | Coolant Thru |
| ANSI Number | A12S-SVUBL2 |
| Rake | Positive |
| Min. Bore | 1.012 in |
| Left/Right Hand | Left Hand |
| Cutting Edge Type | 0 Degrees |
| For Use With | VB/VC22, VB/VC1103 Series |
| Style | 93 Degrees Boring and Facing |
| Cutting Direction | Left Hand |
| Includes | FS1490 Torx Key, FS2172 Clamping Screw |
| Shank Dia. | 3/4 in |
| Secondary Material Application | Hardened Steel |
| Center to Cutting Tip | 0.58 in |
| Primary Material Application ISO Code | S, N, P, M, K |
| Primary Material Application | Nickel, Titanium, Cast Iron, Stainless Steel, Steel |
| Approach Angle | 93 deg |
| Number of Coolant Holes | 1 |
| Insert Holding Type | Screw On |
| Toolholder Style | A-SVUB |
| Side Cutting Edge Angle | 0 deg |
| Min. Bore Dia. | 1.012 in |
| Compatible Hardware | FS1490 Torx Key, FS2172 Clamping Screw |
| Secondary Material Application ISO Code | H |
| Insert Clearance Angle | 5 deg |
| Coolant Fed | Coolant Through |
| Number of Inserts | 1 |
| Max. Bore Depth | 3 in |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Head Material | Steel |
| Package Quantity | 1 |
