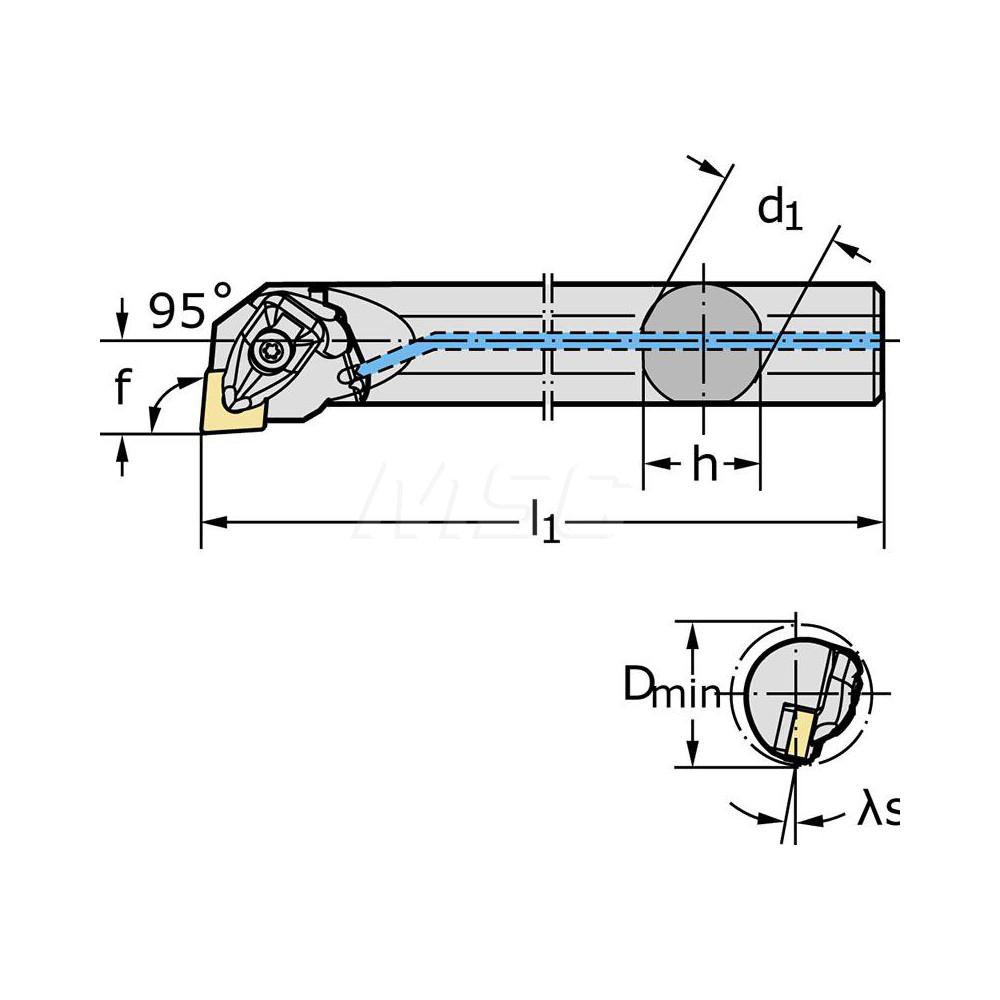

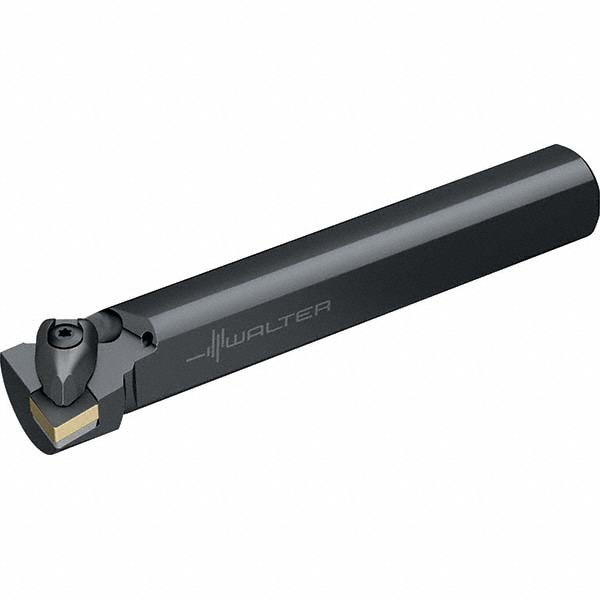

12.0000" OAL, Clamp, Uses CN.. 1204.. & CN.. 43.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.2800 |
|---|---|
| Toolholder Style | A-DCLN |
| Tool Material | Steel |

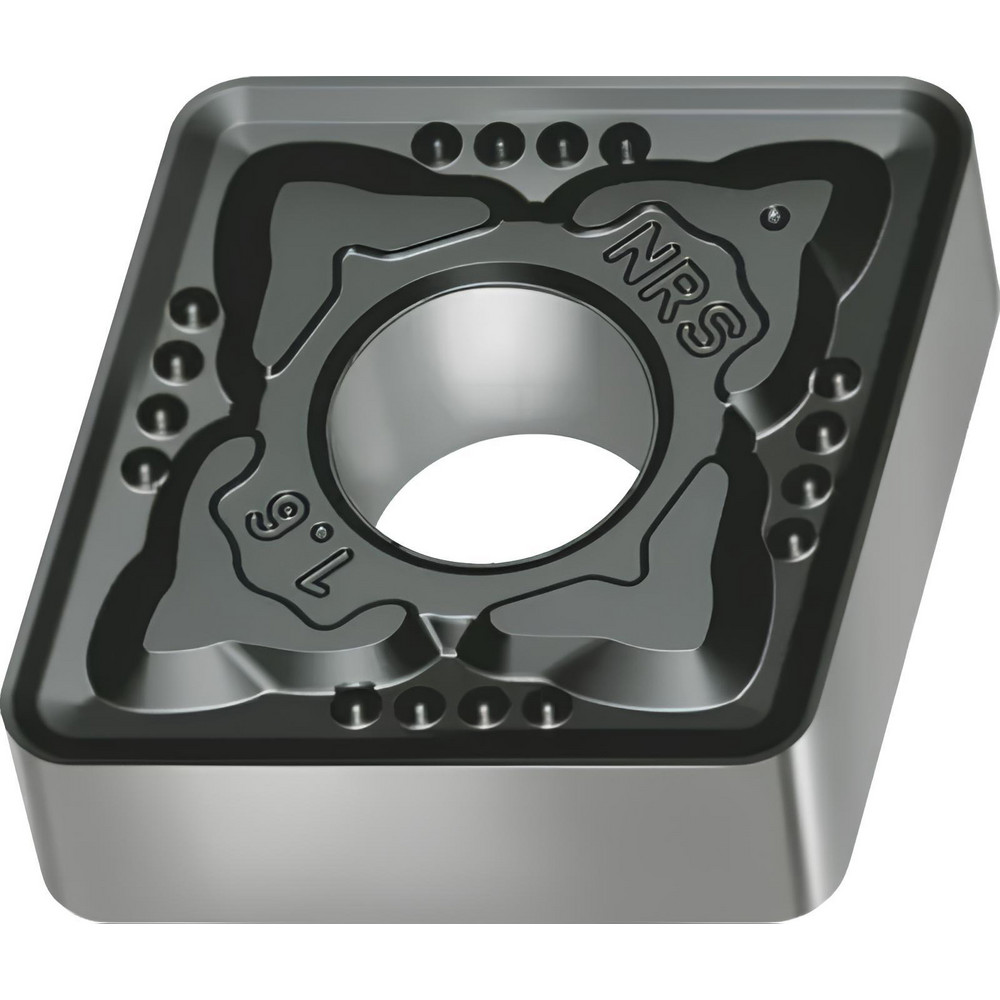

| Insert Compatibility | CN.. 1204..; CN.. 43.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | 1204; 43 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -6.00 |
| Lead Angle | 95 |
| Series | Walter Turn |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (mm) | 12.70 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Standards | ISO; ANSI |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 53036596 |
