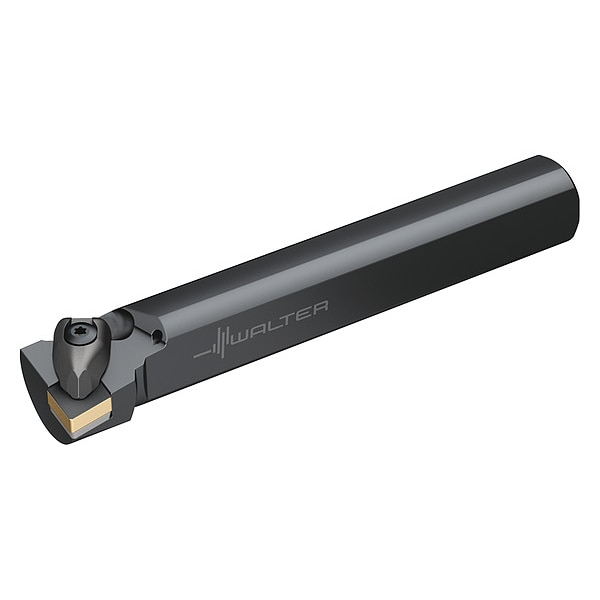

Indexable Boring Bar, A16T-DCLNR4, 12 in L, High Speed Steel, 80 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | High Speed Steel |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | A16T-DCLNR4 |
| Bar Dia. | 0.63 in |
| Type | Coolant Thru |
| Mounting Style | Top and Hole Clamping |
| Min. Bore | 1.28 in |
| Left/Right Hand | Right Hand |
| Style | 95 Degrees Boring and Facing |
| Cutting Edge Type | -6 Degrees |
| For Use With | CN43, CN1204 Series |
| Rake | Negative |
| Lead Angle | 95 Degrees |
| ANSI Number | A16T-DCLNR4 |
| Shank Dia. | 1 in |
| Cutting Direction | Right Hand |
| Includes | AP354-CN12 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin |
| Coolant Fed | Coolant Through |
| Approach Angle | 95 deg |
| Center to Cutting Tip | 41/64 in |
| Secondary Material Application | Stainless Steel |
| Side Cutting Edge Angle | -6 deg |
| Number of Coolant Holes | 1 |
| Primary Material Application | Nickel, Titanium, Cast Iron, Hardened Steel, Steel |
| Min. Bore Dia. | 1.28 in |
| Insert Holding Type | Clamp |
| Head Material | Steel |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Primary Material Application ISO Code | S, K, H |
| Compatible Hardware | AP354-CN12 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin |
| Secondary Material Application ISO Code | M |
| Insert Clearance Angle | 0 deg |
| Max. Bore Depth | 4 in |
| Number of Inserts | 1 |
| Package Quantity | 1 |
