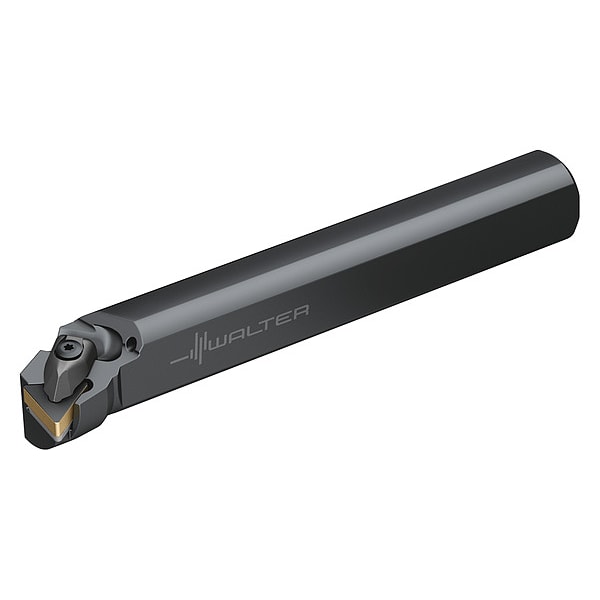

Indexable Boring Bar, A16T-DTFNL3, 12 in L, High Speed Steel, Triangle Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | High Speed Steel |
| Insert Shape | Triangle |
| ANSI Code | A16T-DTFNL3 |
| Style | 90 Degrees Boring and Facing |
| Lead Angle | 90 Degrees |
| Bar Dia. | 0.63 in |
| Left/Right Hand | Left Hand |
| Cutting Edge Type | -6 Degrees |
| For Use With | TN33, TN1604 Series |
| Type | Coolant Thru |
| Rake | Negative |
| Mounting Style | Top and Hole Clamping |
| Min. Bore | 1.201 in |
| ANSI Number | A16T-DTFNL3 |
| Shank Dia. | 1 in |
| Includes | AP356-TN16 Shim, FS1462 Screw, FS1466 Torx Key, FS1469 Pressure Spring, FS1472 Clamp Screw, PK240 Clamp, RS116 Pin |
| Cutting Direction | Left Hand |
| Coolant Fed | Coolant Through |
| Center to Cutting Tip | 41/64 in |
| Secondary Material Application | Stainless Steel |
| Head Material | Steel |
| Side Cutting Edge Angle | -6 deg |
| Insert Clearance Angle | 0 deg |
| Number of Coolant Holes | 1 |
| Primary Material Application ISO Code | S, K, H |
| Cutting Application | Boring |
| Insert Holding Type | Clamp |
| Primary Material Application | Nickel, Titanium, Cast Iron, Hardened Steel, Steel |
| Secondary Material Application ISO Code | M |
| Min. Bore Dia. | 1.201 in |
| Number of Inserts | 1 |
| Compatible Hardware | AP356-TN16 Shim, FS1462 Screw, FS1466 Torx Key, FS1469 Pressure Spring, FS1472 Clamp Screw, PK240 Clamp, RS116 Pin |
| Max. Bore Depth | 4 in |
| Approach Angle | 91 deg |
| Package Quantity | 1 |
