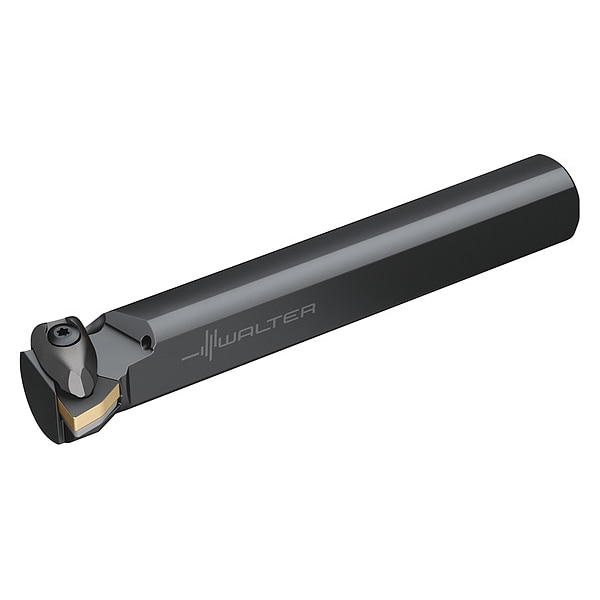

Indexable Boring Bar, A16T-DWLNR4, 12 in L, High Speed Steel, Trigon Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | High Speed Steel |
| Insert Shape | Trigon |
| ANSI Code | A16T-DWLNR4 |
| Type | Coolant Thru |
| Cutting Edge Type | -6 Degrees |
| Left/Right Hand | Right Hand |
| Rake | Negative |
| For Use With | WN43, WN0804 Series |
| Bar Dia. | 0.63 in |
| Style | 95 Degrees Boring and Facing |
| ANSI Number | A16T-DWLNR4 |
| Min. Bore | 1.299 in |
| Lead Angle | 95 Degrees |
| Mounting Style | Top and Hole Clamping |
| Cutting Direction | Right Hand |
| Shank Dia. | 1 in |
| Side Cutting Edge Angle | -6 deg |
| Insert Clearance Angle | 0 deg |
| Primary Material Application | Nickel, Titanium, Cast Iron, Hardened Steel, Steel |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Approach Angle | 95 deg |
| Primary Material Application ISO Code | S, K, H |
| Secondary Material Application ISO Code | M |
| Secondary Material Application | Stainless Steel |
| Min. Bore Dia. | 1.299 in |
| Insert Holding Type | Clamp |
| Center to Cutting Tip | 3/4 in |
| Head Material | Steel |
| Number of Coolant Holes | 1 |
| Coolant Fed | Coolant Through |
| Number of Inserts | 1 |
| Max. Bore Depth | 4 in |
| Package Quantity | 1 |
