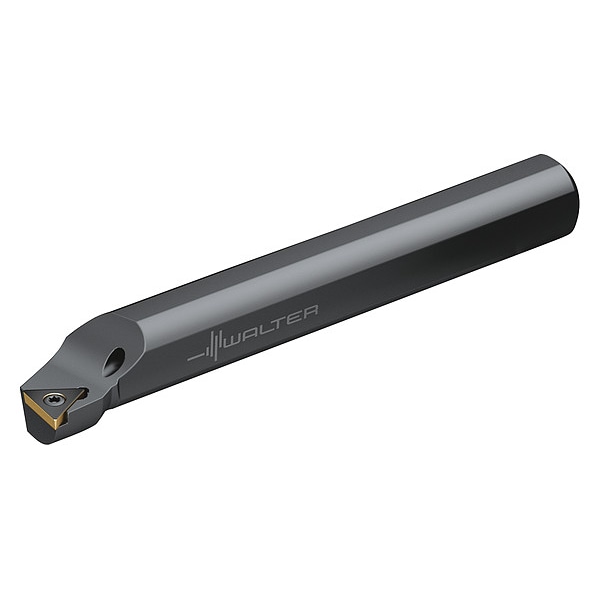

Indexable Boring Bar, A16T-STFCR3, 12 in L, High Speed Steel, Triangle Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | High Speed Steel |
| Insert Shape | Triangle |
| ANSI Code | A16T-STFCR3 |
| Rake | Positive |
| Mounting Style | Screw Clamp |
| ANSI Number | A16T-STFCR3 |
| Left/Right Hand | Right Hand |
| Style | 90 Degrees Boring and Facing |
| Type | Coolant Thru |
| For Use With | TC3(25), TC16T3 Series |
| Lead Angle | 90 Degrees |
| Cutting Edge Type | 0 Degrees |
| Min. Bore | 1.201 in |
| Bar Dia. | 0.63 in |
| Cutting Direction | Right Hand |
| Includes | FS1465 Torx Key, FS2063 Clamping Screw |
| Shank Dia. | 1 in |
| Side Cutting Edge Angle | 0 deg |
| Coolant Fed | Coolant Through |
| Compatible Hardware | FS1465 Torx key, FS2063 Clamping Screw |
| Secondary Material Application | Hardened Steel |
| Number of Inserts | 1 |
| Secondary Material Application ISO Code | H |
| Primary Material Application | Nickel, Titanium, Cast Iron, Stainless Steel, Steel |
| Insert Holding Type | Screw On |
| Insert Clearance Angle | 7 deg |
| Approach Angle | 91 deg |
| Max. Bore Depth | 4 in |
| Head Material | Steel |
| Primary Material Application ISO Code | S, N, P, M, K |
| Min. Bore Dia. | 1.201 in |
| Center to Cutting Tip | 41/64 in |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Number of Coolant Holes | 1 |
| Package Quantity | 1 |
