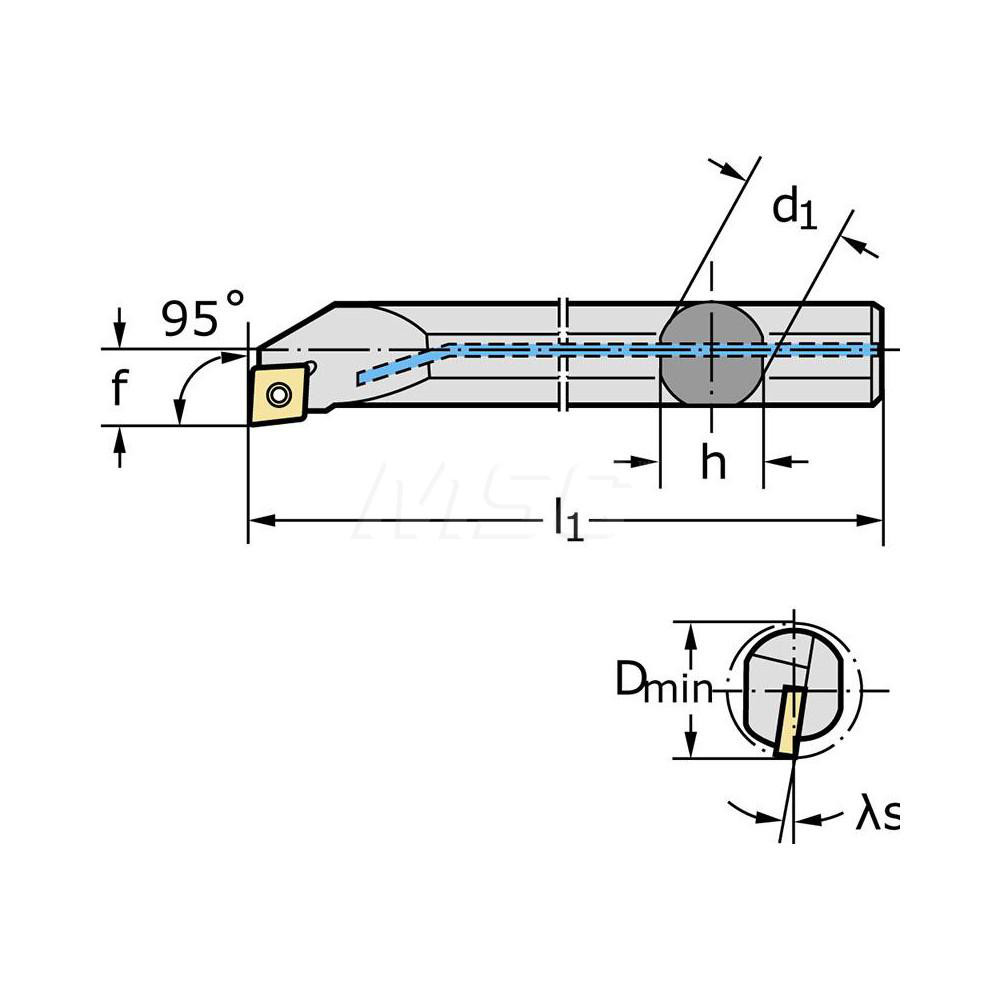

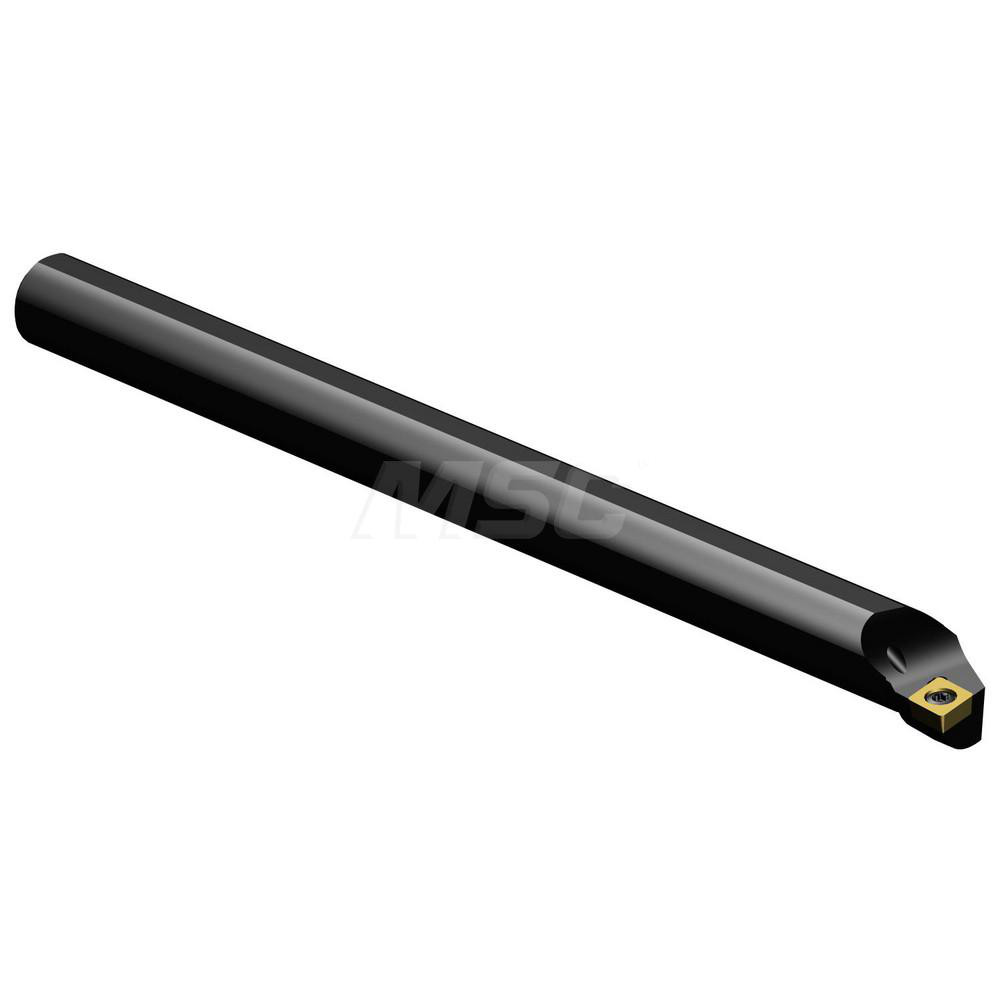

300.00 mm OAL, Screw, Uses CC.. 09T3.. Inserts
| Minimum Bore Diameter (mm) | 32.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Toolholder Style | A-SCLC |
| Tool Material | Steel |
| Insert Compatibility | CC.. 09T3.. |
| Shank Diameter (mm) | 25.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 11.8110 |
| Overall Length (mm) | 300.00 |
| Compatible Insert Size Code | 09T3 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 95 |
| Series | Walter Turn |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (mm) | 9.53 |
| Compatible Insert Thickness (mm) | 3.97 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Center to Cutting Edge (mm) | 17.00 |
| Standards | ISO; ANSI |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 53036695 |
