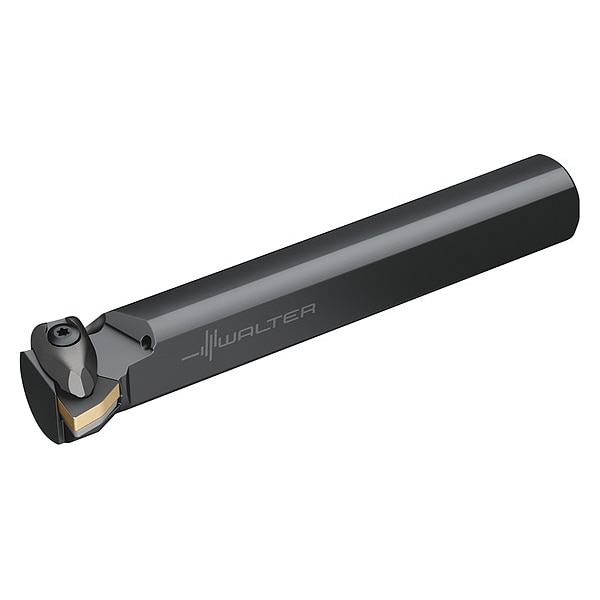

Indexable Boring Bar, A32U-DWLNR4, 14 in L, High Speed Steel, Trigon Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 14 in |
| Shank Material | High Speed Steel |
| Insert Shape | Trigon |
| ANSI Code | A32U-DWLNR4 |
| Cutting Edge Type | -6 Degrees |
| Style | 95 Degrees Boring and Facing |
| For Use With | WN43, WN0804 Series |
| ANSI Number | A32U-DWLNR4 |
| Mounting Style | Top and Hole Clamping |
| Type | Coolant Thru |
| Rake | Negative |
| Lead Angle | 95 Degrees |
| Left/Right Hand | Right Hand |
| Bar Dia. | 1.26 in |
| Min. Bore | 2-1/2 in |
| Cutting Direction | Right Hand |
| Shank Dia. | 2 in |
| Includes | AP331-WN08 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin |
| Center to Cutting Tip | 1-3/8 in |
| Coolant Fed | Coolant Through |
| Secondary Material Application ISO Code | M |
| Primary Material Application ISO Code | S, K, H |
| Insert Clearance Angle | 0 deg |
| Number of Inserts | 1 |
| Compatible Hardware | AP331-WN08 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin |
| Max. Bore Depth | 8 in |
| Secondary Material Application | Stainless Steel |
| Number of Coolant Holes | 1 |
| Insert Holding Type | Clamp |
| Side Cutting Edge Angle | -6 deg |
| Min. Bore Dia. | 2-1/2 in |
| Head Material | Steel |
| Cutting Application | Turning, Profiling, Cuts, Facing, Interrupted |
| Approach Angle | 95 deg |
| Primary Material Application | Nickel, Titanium, Cast Iron, Hardened Steel, Steel |
| Package Quantity | 1 |
