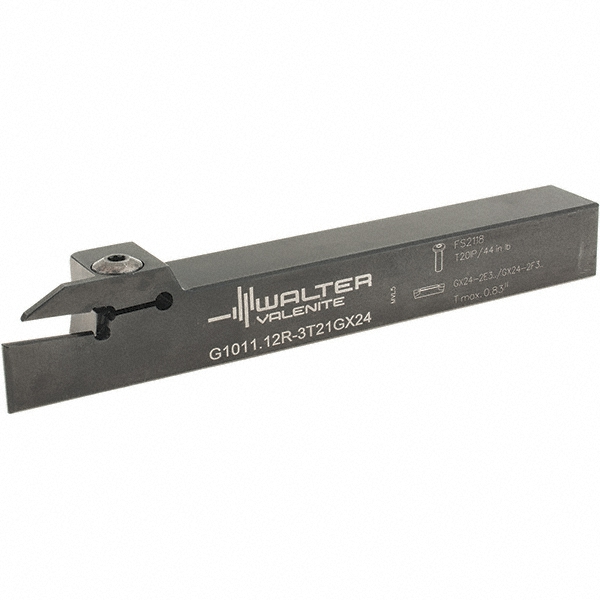

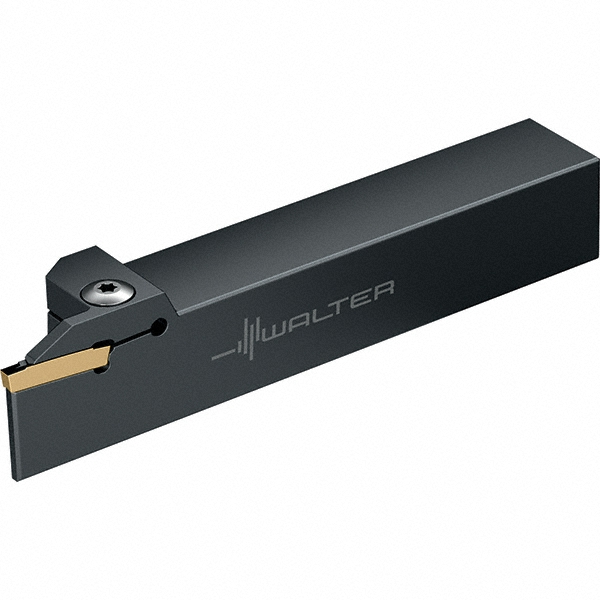

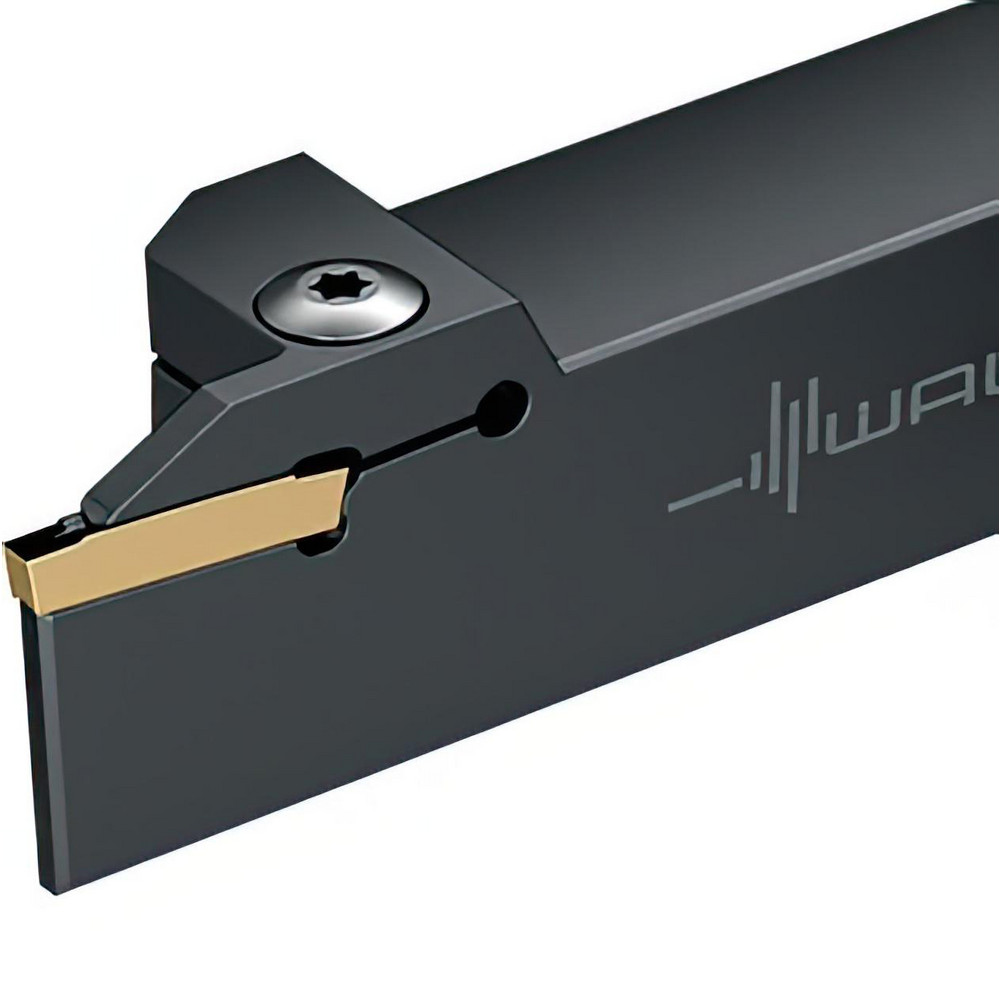

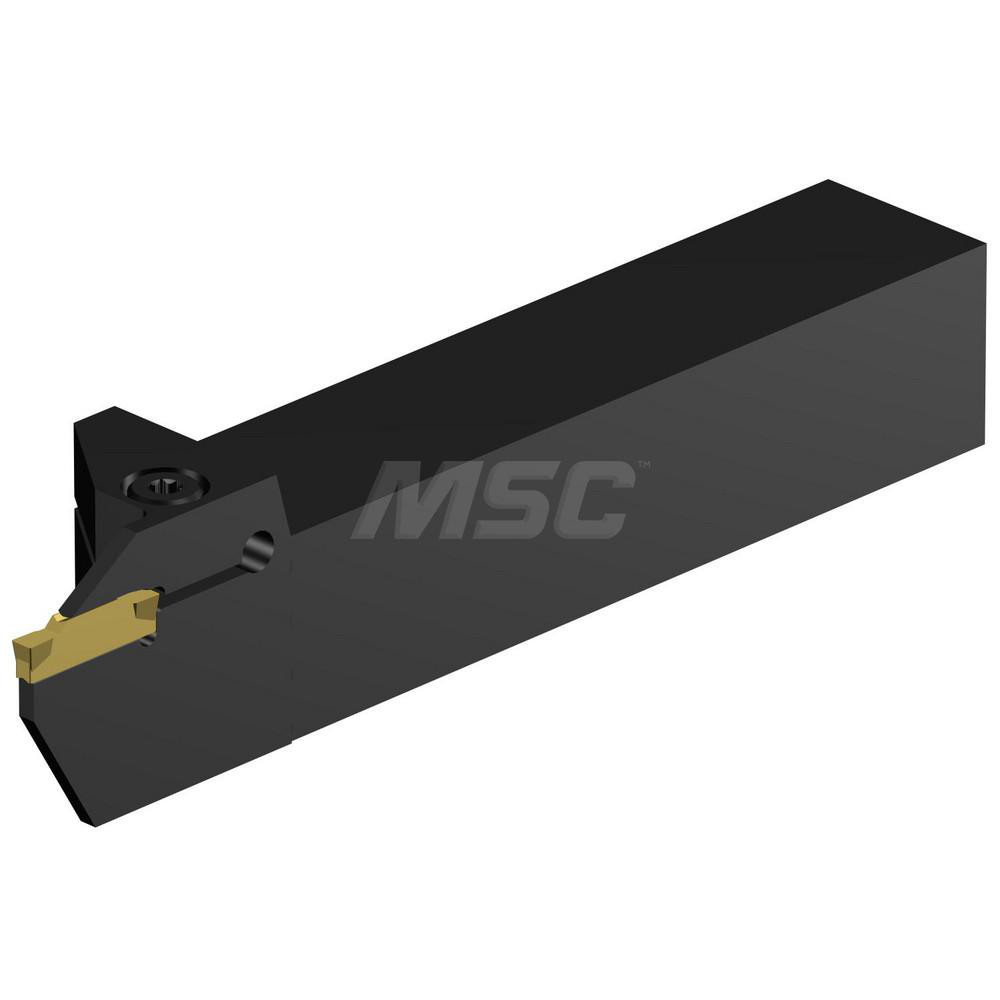

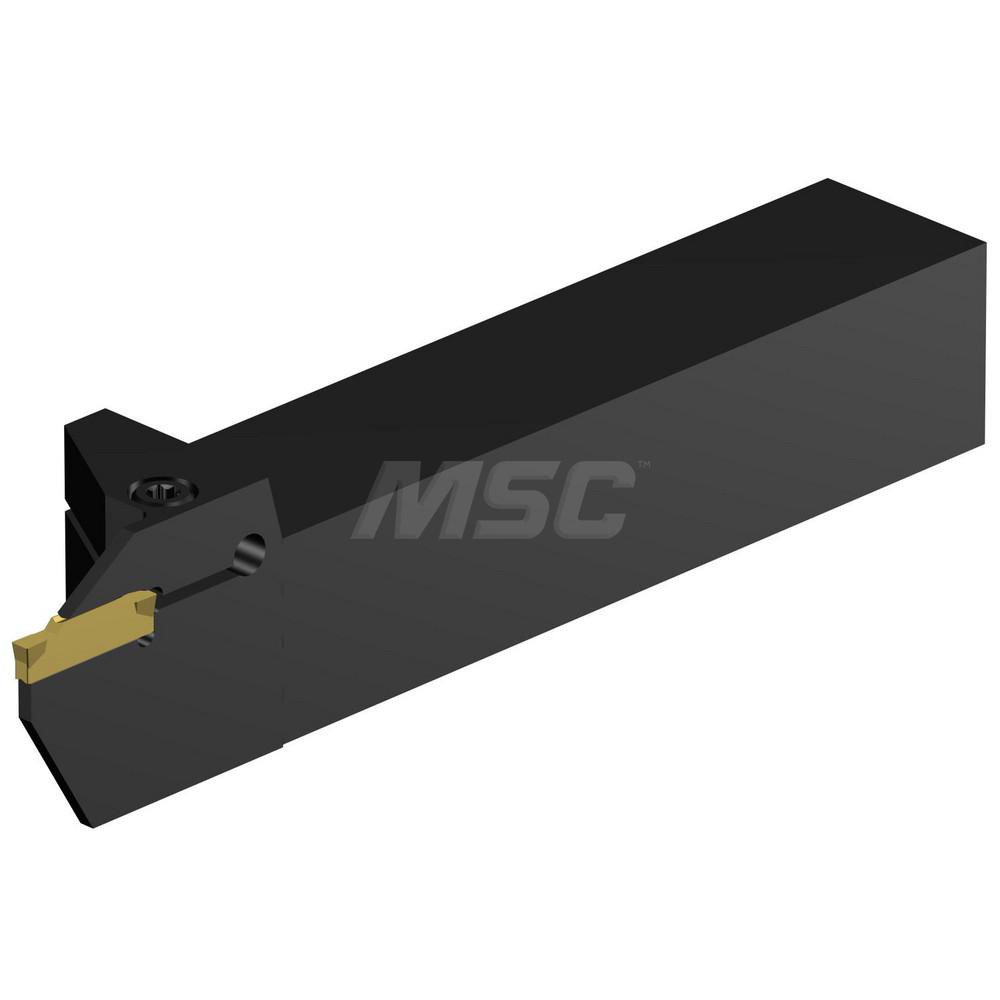

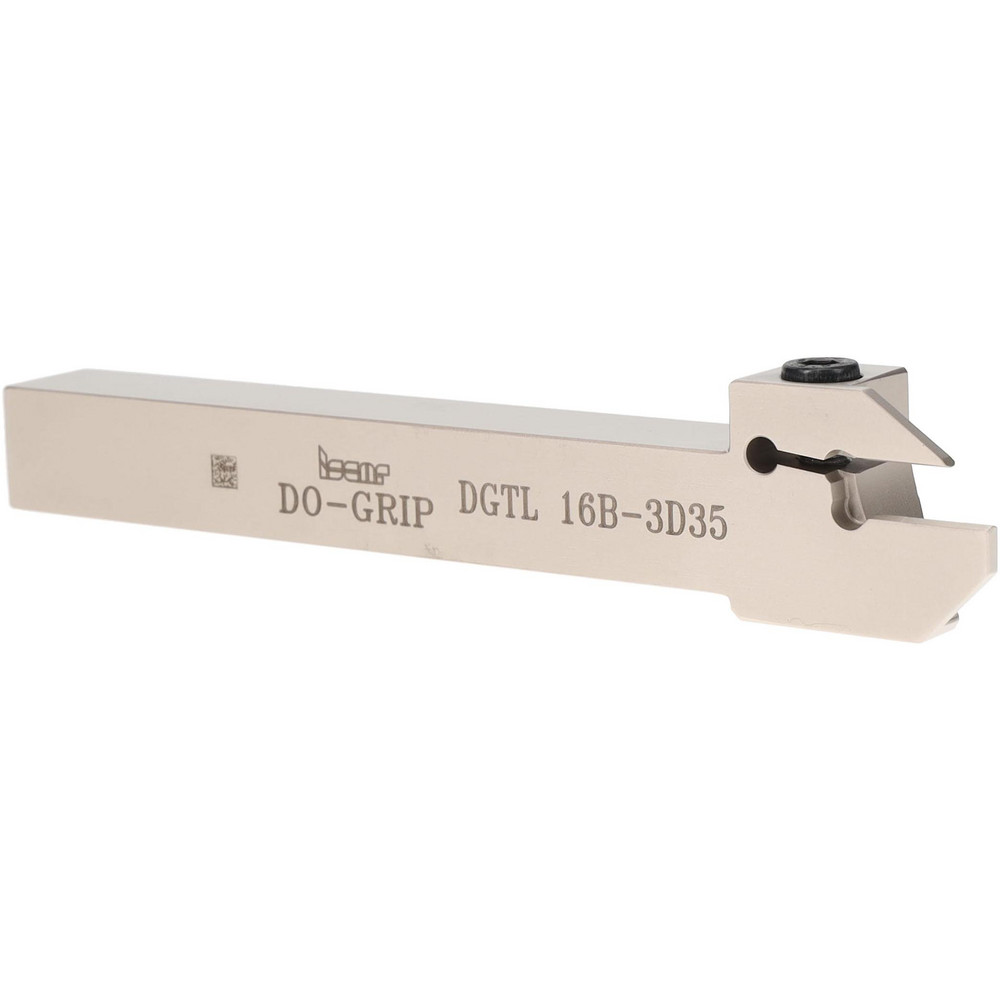

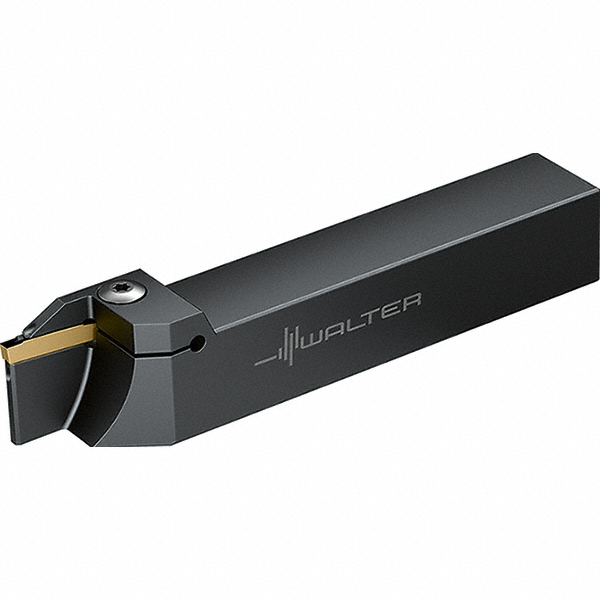

Uses GX24-2E3/F3.. Inserts, 25.4 x 25.4 mm Shank
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Maximum Depth of Cut (mm) | 21.01 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.18 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | G1011 |
| Insert Holding Method | Screw |
| Insert Compatibility | GX24-2E3/F3.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 110.00 |
| Shank Length (Decimal Inch) | 4.3307 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Overall Length (mm) | 150.01 |
| Overall Length (Decimal Inch) | 5.9060 |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0160 |
| Head Length (Decimal Inch) | 1.5750 |
| Head Length (mm) | 40.01 |
| Complete Insert Compatibility | GX24-2E300N030-GD3; GX24-2E300N150-RD4; GX24-2E300N03-UF4; GX24-2E300N02-CF6; GX24-2E300N03-UD6; GX24-2E300N030-UA4; GX24-2E300N020-CE4; GX24-2E300N030-UF4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N15-RD4; GX24-2E300N03-GD3; GX24-2E300N03-GD6 |
| Insert Corner Radius (Decimal Inch) | 0.0630 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Romania |
| MSC Number | MSC# 53002531 |
