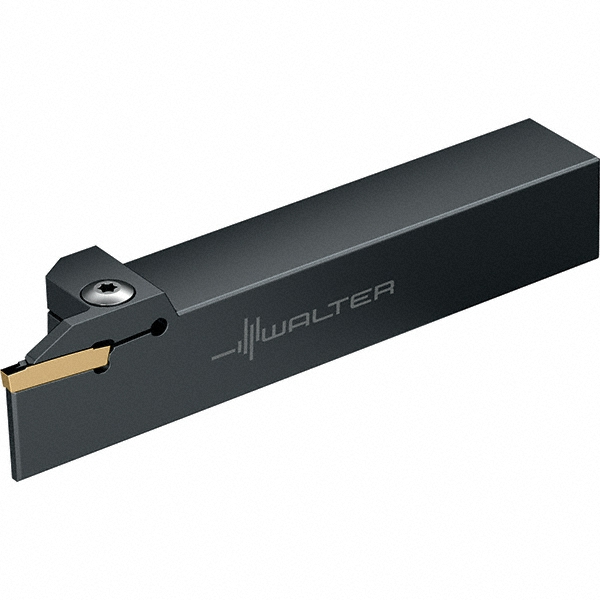

Uses GX24-4E6/F6.. Inserts, 25.4 x 25.4 mm Shank, Series G1011
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (mm) | 11.99 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Maximum Groove Width (mm) | 6.35 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Minimum Groove Width (mm) | 5.99 |
| Toolholder Style | G1011 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | GX24-4E6/F6 |
| Insert Compatibility | GX24-4E6/F6.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 110.00 |
| Shank Length (Decimal Inch) | 4.3307 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Series | G1011 |
| Overall Length (mm) | 145.00 |
| Overall Length (Decimal Inch) | 5.7087 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0230 |
| Head Length (Decimal Inch) | 1.3780 |
| Head Length (mm) | 35.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | GX24-4E600N03-CE4; GX24-4E600N05-UD6; GX24-4E600N30-RD4; GX24-4E600N030-CE4; GX24-4E600N050-UA4; GX24-4E600N08-UF4; GX24-4E600N05-GD6; GX24-4E600N050-UF4; GX24-4E600N05-GD3; GX24-4E600N080-UF4; GX24-4E600N05-UF4; GX24-4E600N050-GD3; GX24-4E600N300-RD4 |
| Insert Corner Radius (Decimal Inch) | 0.1250 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Romania |
| undefined | undefined |
| MSC Number | MSC# 53002648 |
