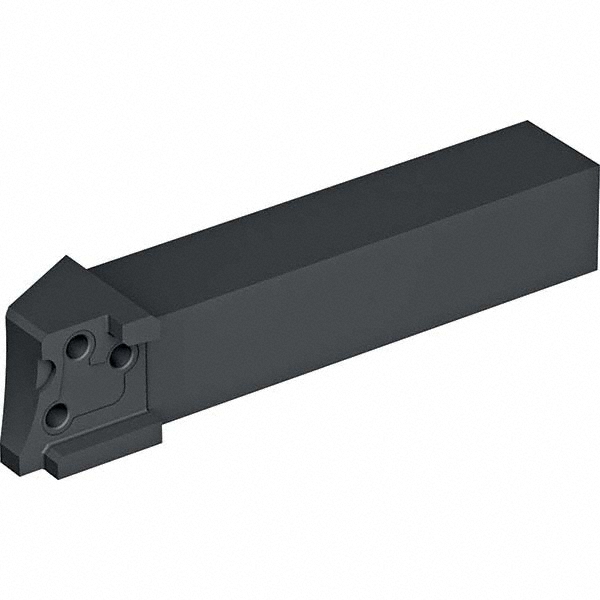

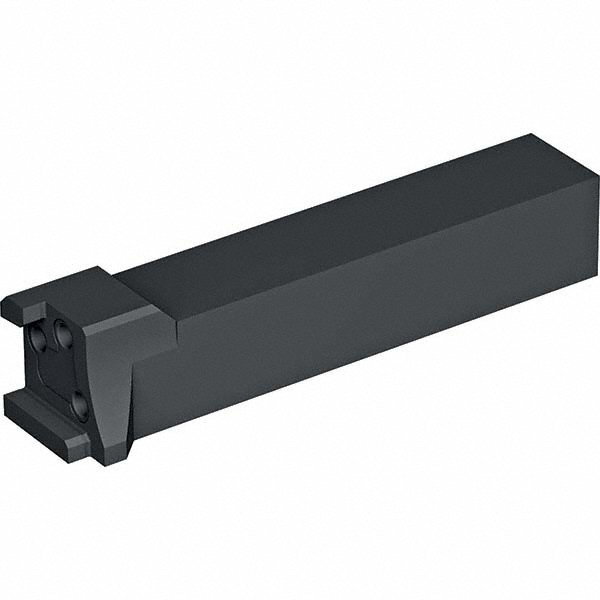

Uses FX3.1.., FX4.1.., FX5.1.., FX6.5.., GX16-2.., GX16-3.., GX24-3.., GX24-4.. Inserts, Series MSS-E
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.7720 |
| Maximum Groove Width (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.0240 |
| Toolholder Style | MSS-E |
| Insert Holding Method | Clamp |
| Insert Compatibility | FX4.1..; GX24-3..; FX3.1..; FX6.5..; GX24-4..; GX16-2..; FX5.1..; GX16-3.. |

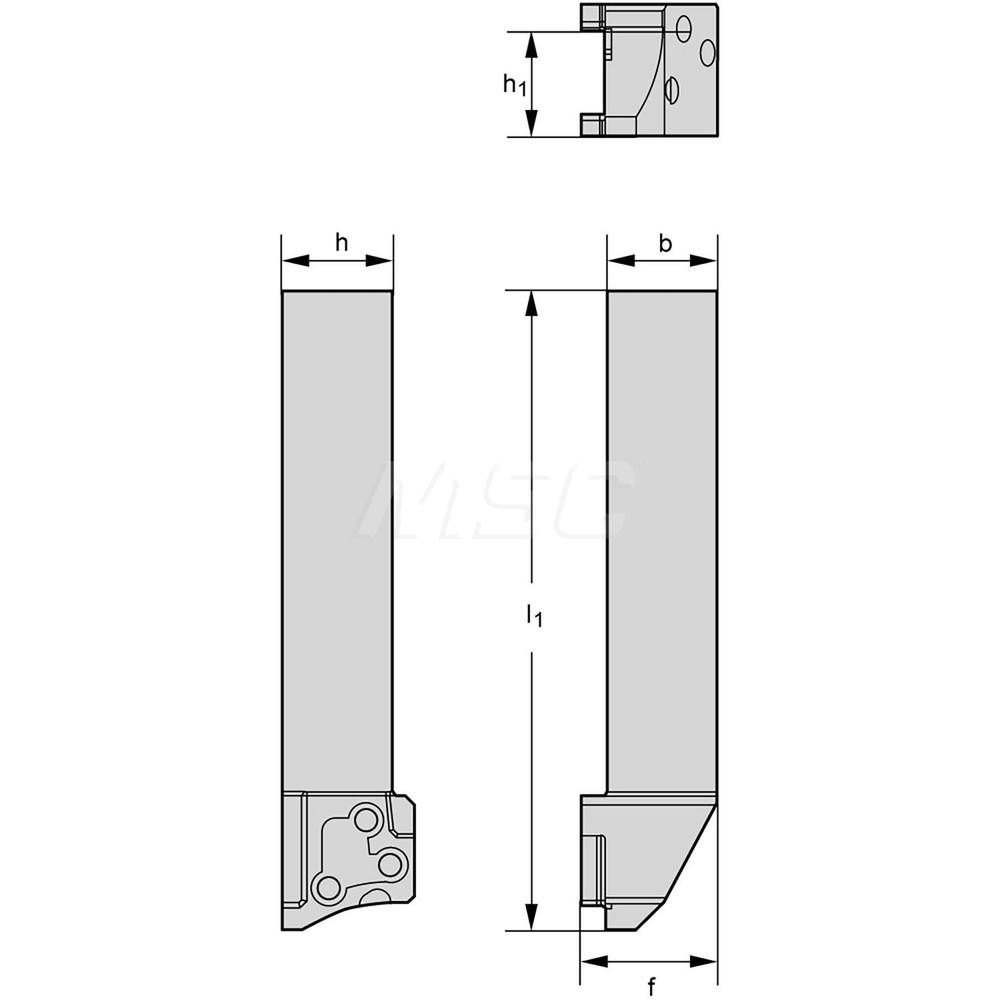

| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | MSS-E |
| Overall Length (Decimal Inch) | 8.3500 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2360 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Minimum Hole Diameter (Decimal Inch) | 2.7560 |
| Complete Insert Compatibility | FX4.1-E410N020-CE6; FX4.1-E410N050-CD3; FX4.1-E410N020-CD3; FX4.1-E410N020-CE4; FX3.1-E310N015-CK8; FX4.1-E410N050-CE6; FX3.1-E310N040-CD3; FX3.1-E310R/L5-CE6; FX3.1-E310N040-CE6; FX4.1-E410N015-CK8; FX3.1-E310N015-CE4; FX3.1-E310N020-CE6; FX3.1-E310R/L6-CE4 |
| Insert Corner Radius (Decimal Inch) | 0.1250 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Germany |
| MSC Number | MSC# 36345288 |
