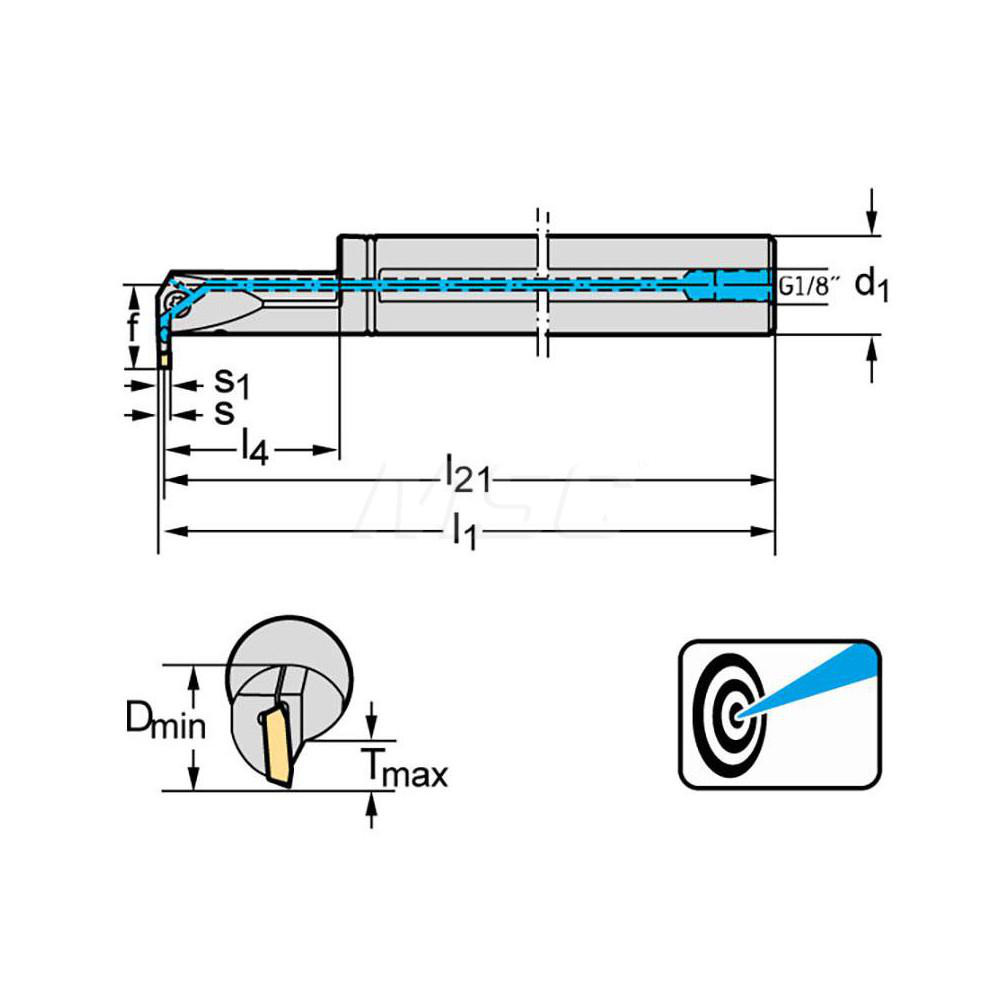

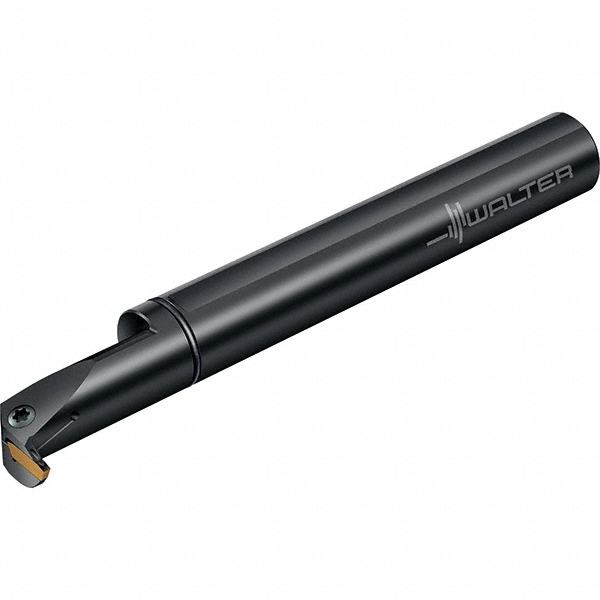

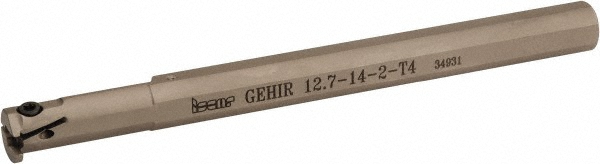

4 mm Max Depth of Cut, Through Coolant, Uses GXE, GXF Inserts
| Insert Seat Size | 9 |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 4.00 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | G1221-P |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | GXF; GXE |
| Series | G1221-P-INCH |
| Shank Length (mm) | 151.00 |
| Shank Length (Decimal Inch) | 5.9444 |
| Overall Length (mm) | 180.3 |
| Overall Length (Decimal Inch) | 7.0984 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 12.50 |
| Head Length (Decimal Inch) | 1.154 |
| Head Length (mm) | 29.30 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel; Titanium Alloy |
| Primary Workpiece Material Code | P; S; M |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | G1221.10QR-2T04-GX09-P |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 31655681 |
