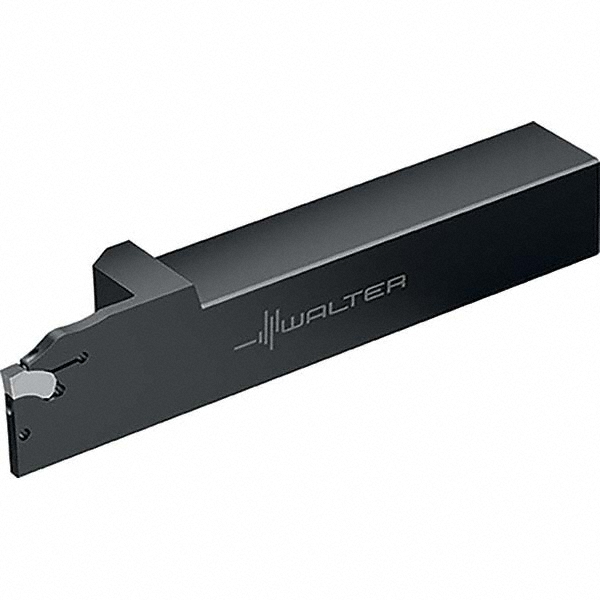

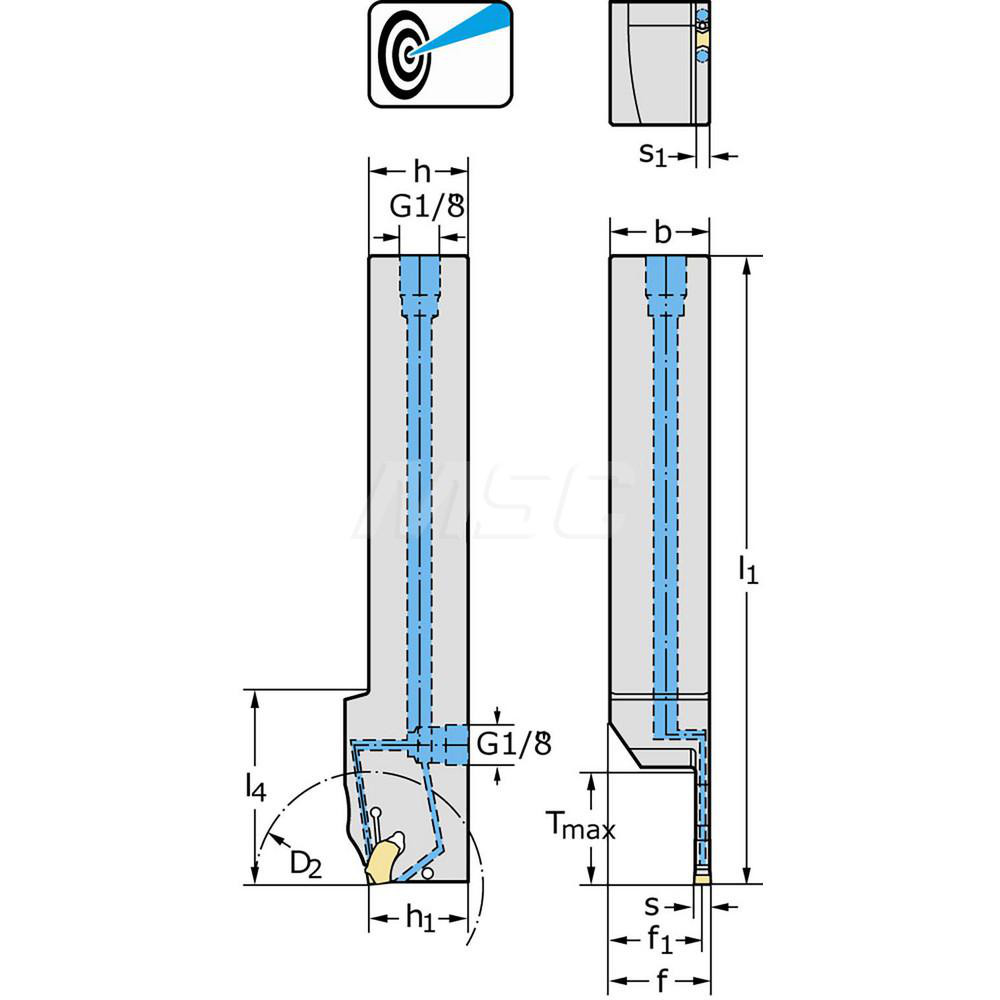

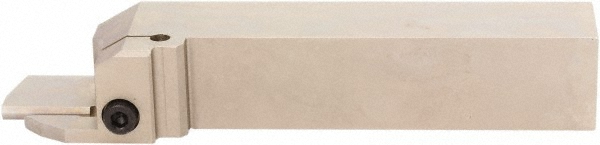

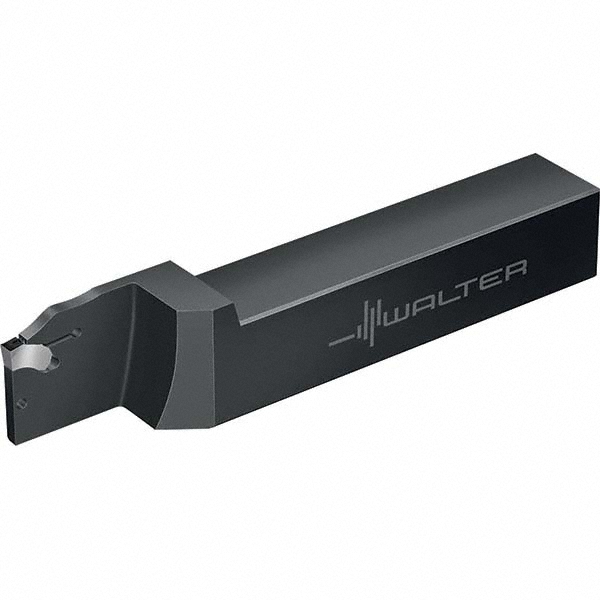

16 mm Max Depth of Cut, 15.88 x 15.88 mm Shank, Through Coolant, Uses SX Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | G2012 |
| Insert Holding Method | Wedge |

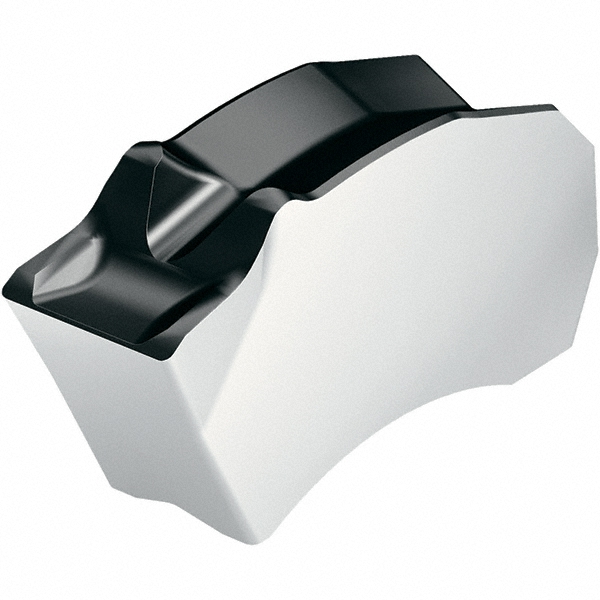

| Insert Compatibility | SX-2.. |
| Compatible Insert Size Code | SX |
| Shank Height (mm) | 15.88 |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | G2012-P |
| Shank Length (mm) | 95.00 |
| Shank Length (Decimal Inch) | 3.7400 |
| Overall Length (mm) | 120 |
| Overall Length (Decimal Inch) | 4.724 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4960 |
| Maximum Workpiece Diameter (mm) | 38.00 |
| Back of Bar to Cutting Edge (mm) | 15.10 |
| Head Length (Decimal Inch) | 0.984 |
| Head Length (mm) | 25.00 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel; Titanium Alloy |
| Primary Workpiece Material Code | P; S; K; M; N |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 59280040 |
