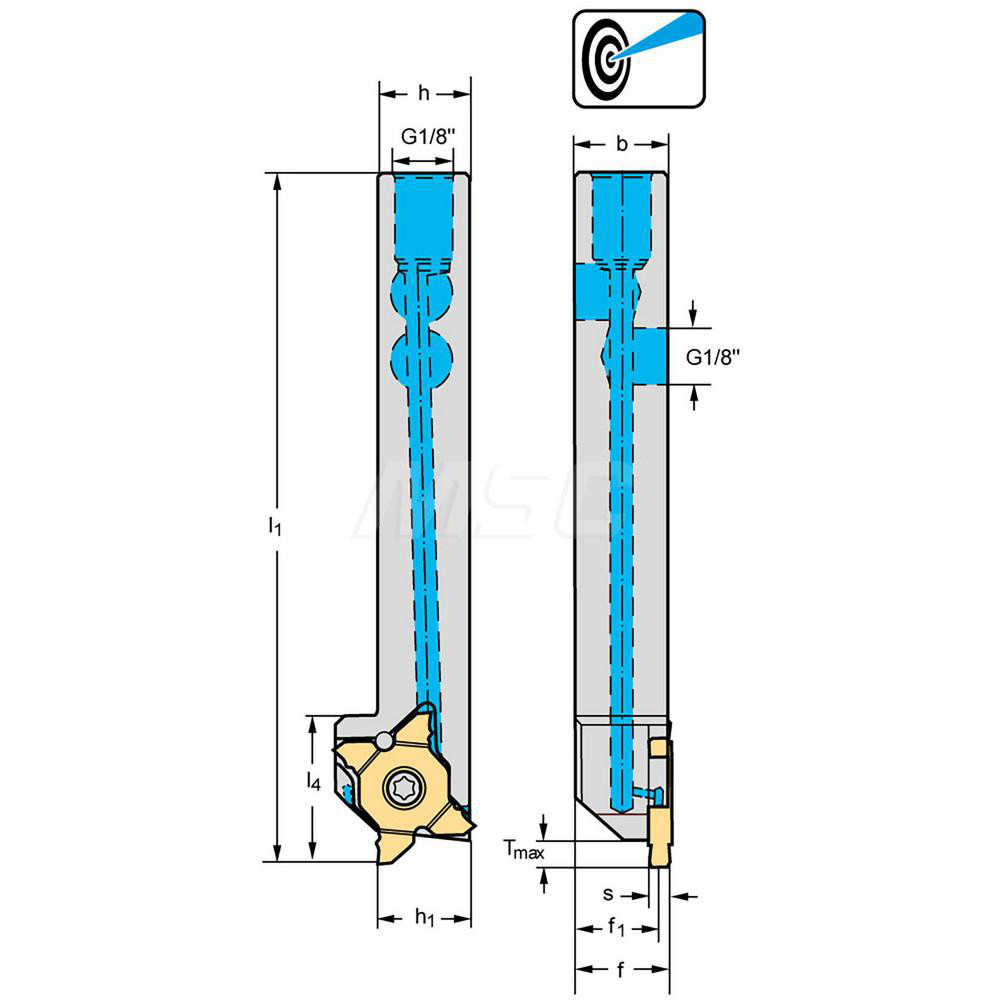

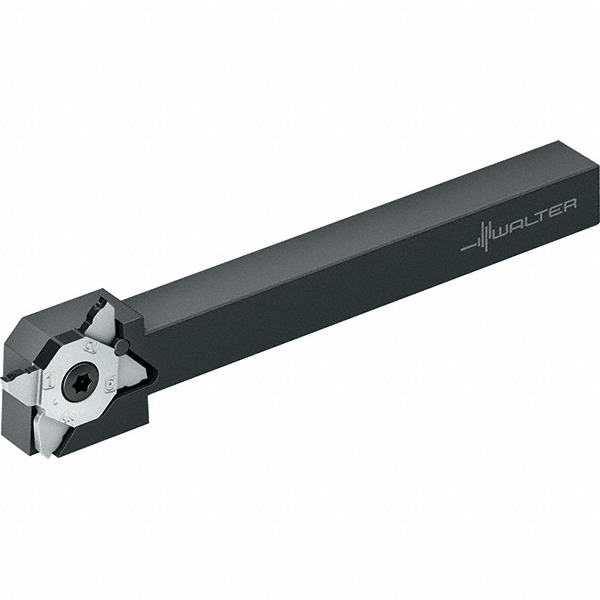

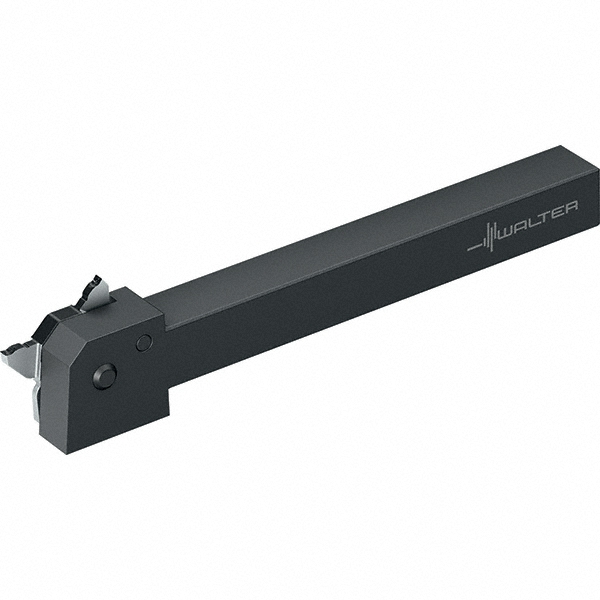

6 mm Max Depth of Cut, 12 x 12 mm Shank, Through Coolant, Uses MX22-2E Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | M22 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Minimum Groove Width (mm) | 1.00 |
| Maximum Groove Width (mm) | 3.25 |
| Toolholder Style | G3011 |
| Insert Holding Method | Screw |
| Insert Compatibility | MX22 |
| Compatible Insert Size Code | MX22-2E |
| Shank Height (mm) | 12.00 |
| Series | G3011 |
| Shank Length (mm) | 94.00 |
| Overall Length (mm) | 120 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (mm) | 10.30 |
| Head Length (Decimal Inch) | 1.024 |
| Head Length (mm) | 26.00 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel; Titanium Alloy |
| Primary Workpiece Material Code | P; S; M |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | G3011-1212L-MX22-2-P |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 31007099 |
