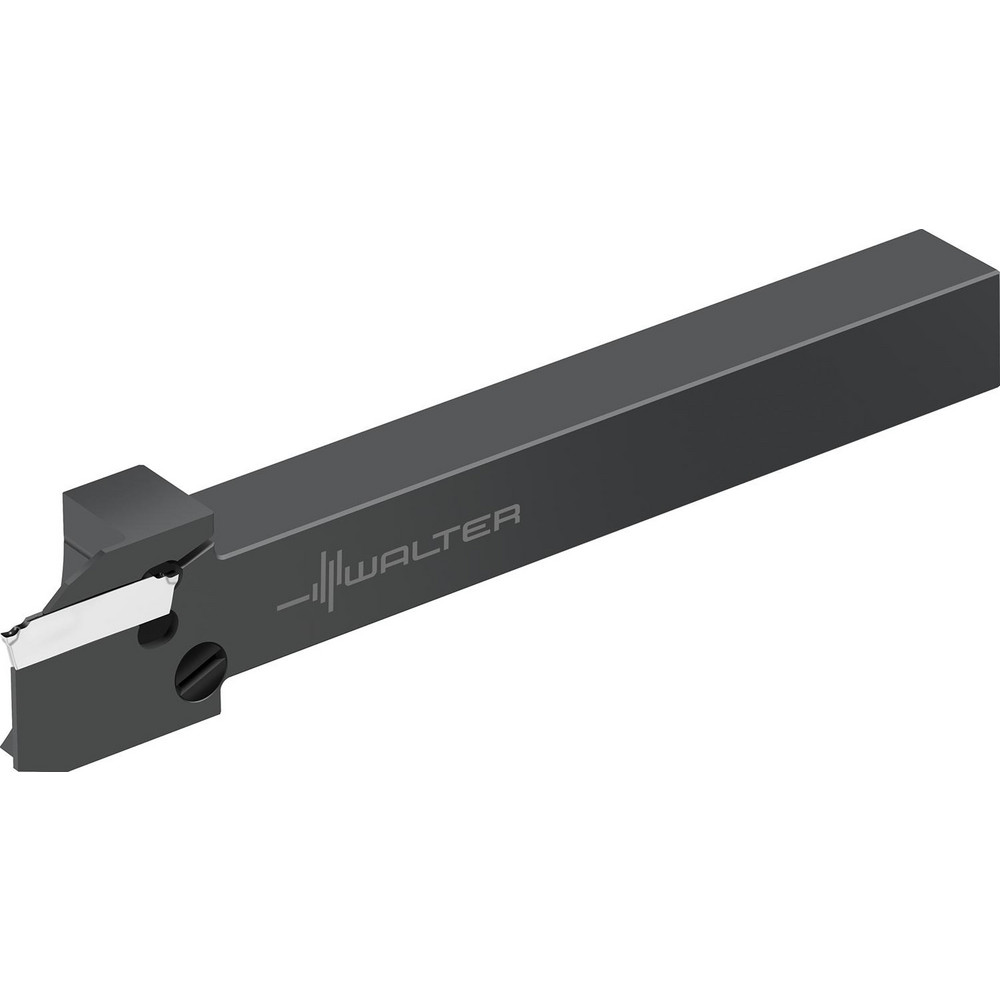

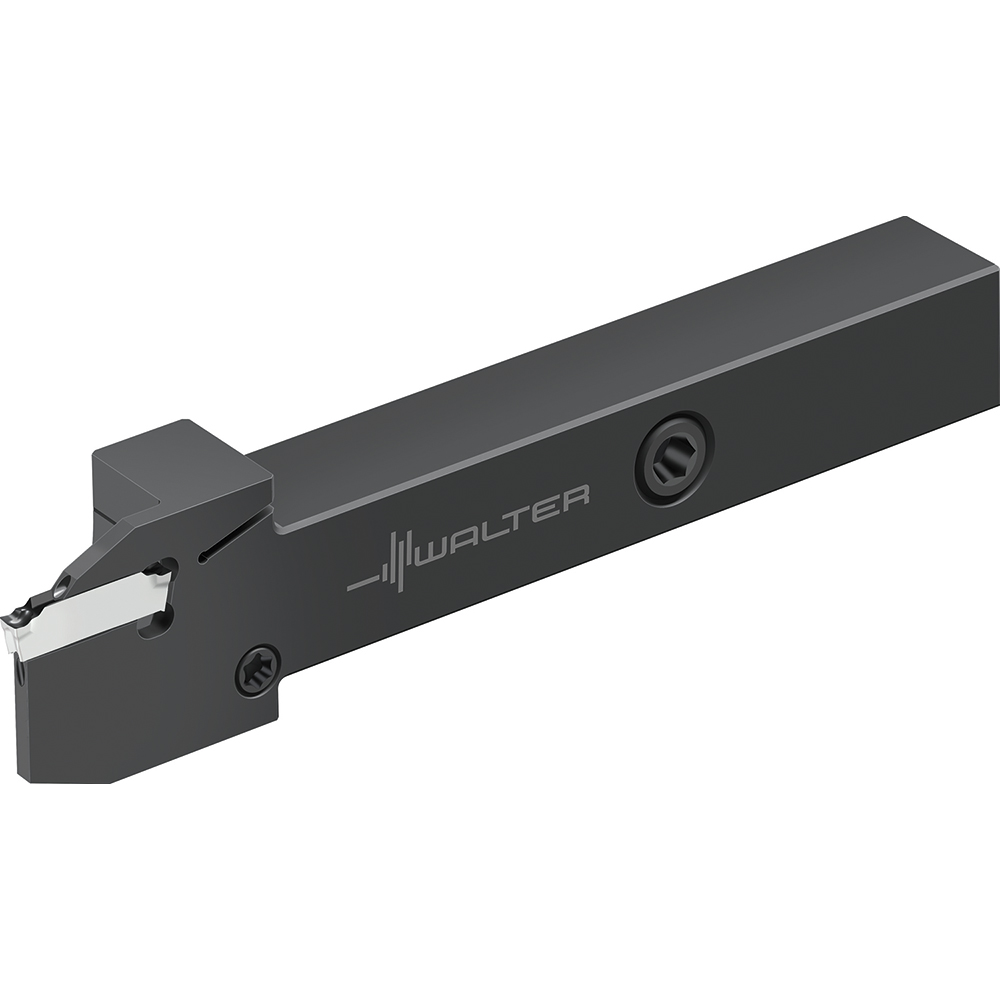

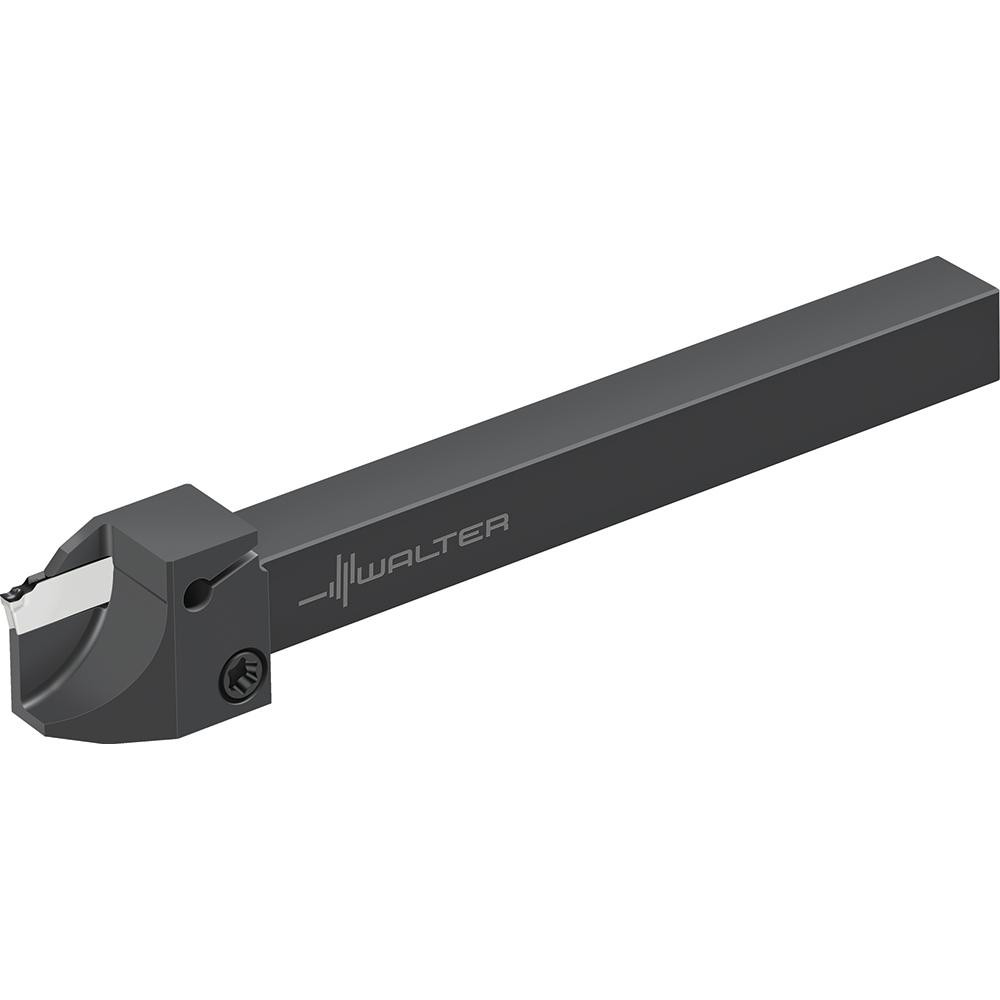

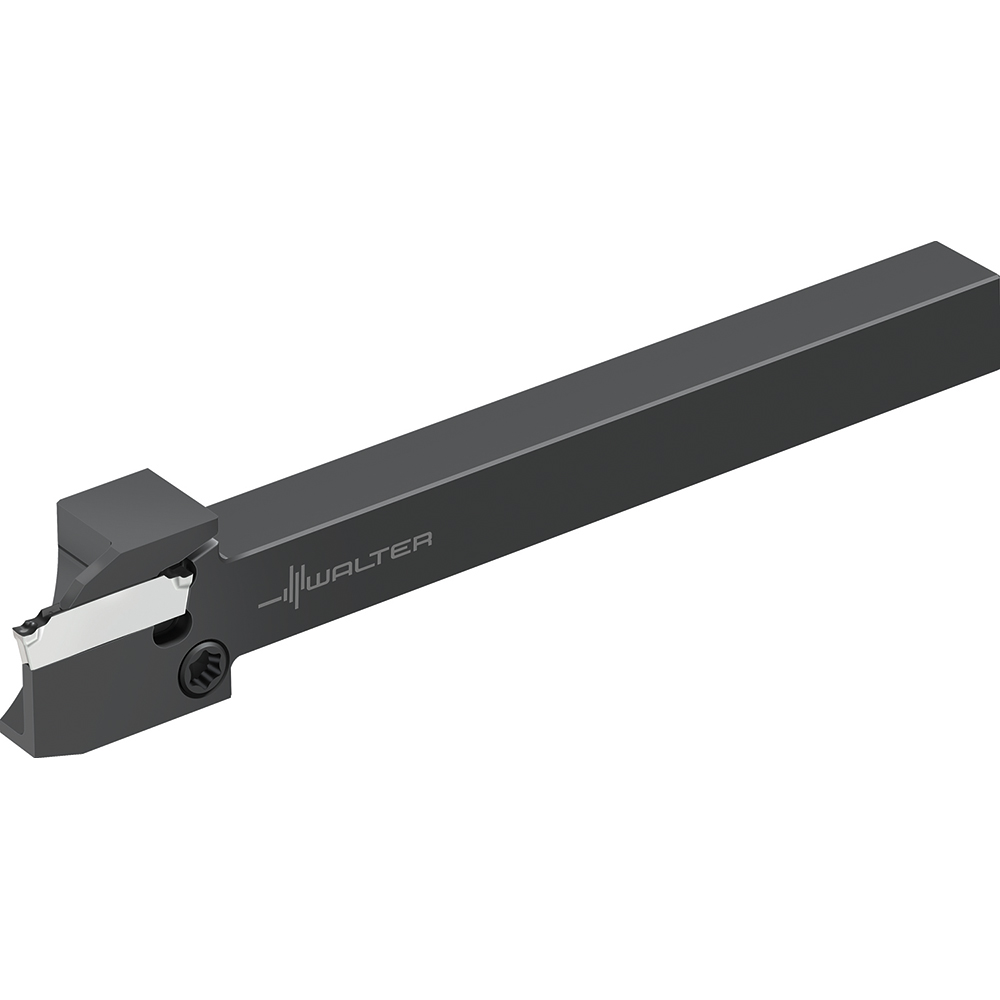

0.472" Max Depth of Cut, 1/2 x 1/2" Shank, Uses DX Inserts
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Toolholder Style | G4014 |
| Maximum Groove Width (Decimal Inch) | 0.0590 |
| Insert Holding Method | Screw; Clamp |
| Insert Compatibility | DX18 |
| Compatible Insert Size Code | DX |

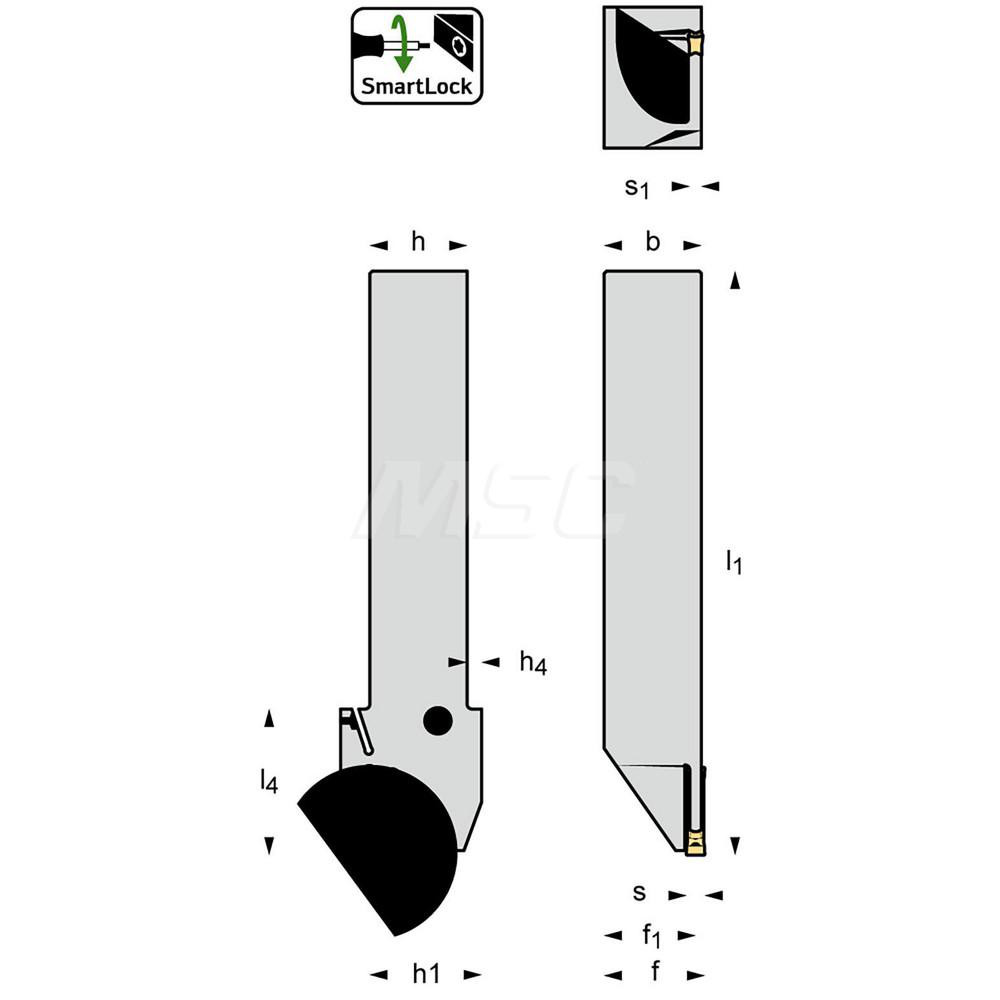

| Shank Height (Decimal Inch) | 0.5000 |
| Series | G4014 |
| Shank Length (Decimal Inch) | 3.4527 |
| Overall Length (Decimal Inch) | 4.3307 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9840 |
| Maximum Workpiece Diameter (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4760 |
| Head Length (Decimal Inch) | 0.878 |
| Head Length (mm) | 22.30 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel; Titanium Alloy |
| Primary Workpiece Material Code | P; S; M |
| UNSPSC Code | 23153308 |
| Coolant Through | No |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 14881130 |
