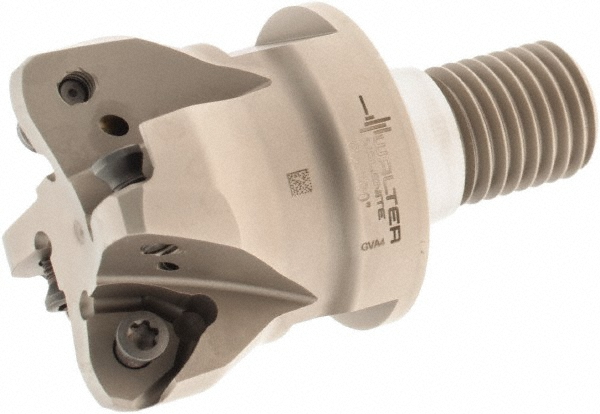

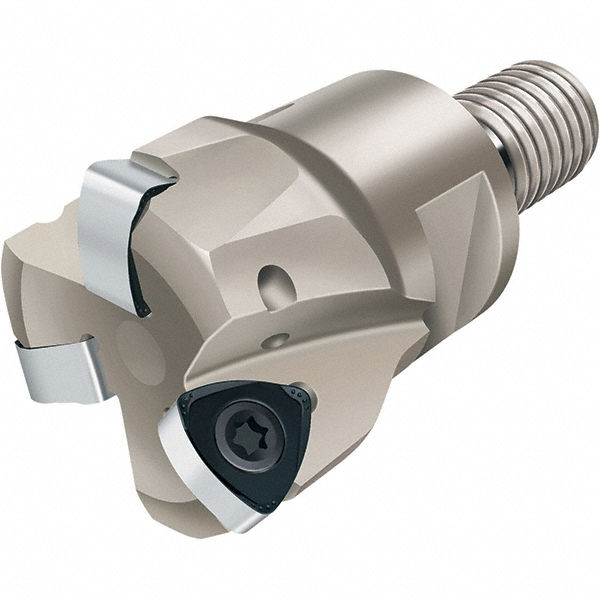

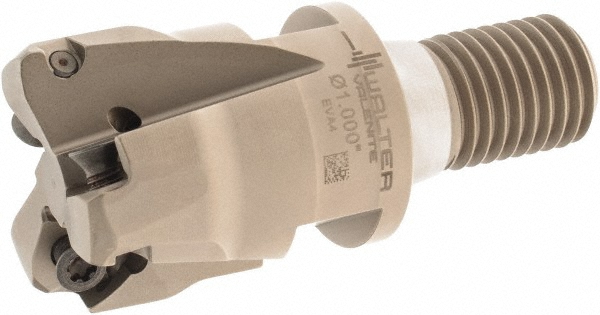

Uses 4 P23696 Insert & F4030 Toolholder Inserts, 0.0790" Max Depth, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 1.2910 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Toolholder Style | F4030 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 36.00 |
| Compatible Insert Style | P23696 Insert; F4030 Toolholder |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 3.1500 |
| Overall Length (mm) | 80.00 |
| Series | ScrewFit; Xtra-tec |
| Modular Connection Size | T45 |
| Head Length (Decimal Inch) | 1.7720 |
| Functional Length (Decimal Inch) | 1.7720 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Standards | ISO; ANSI |
| Complete Insert Compatibility | P23696-2.0 |
| Lead Angle | 21 |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 46857520 |
