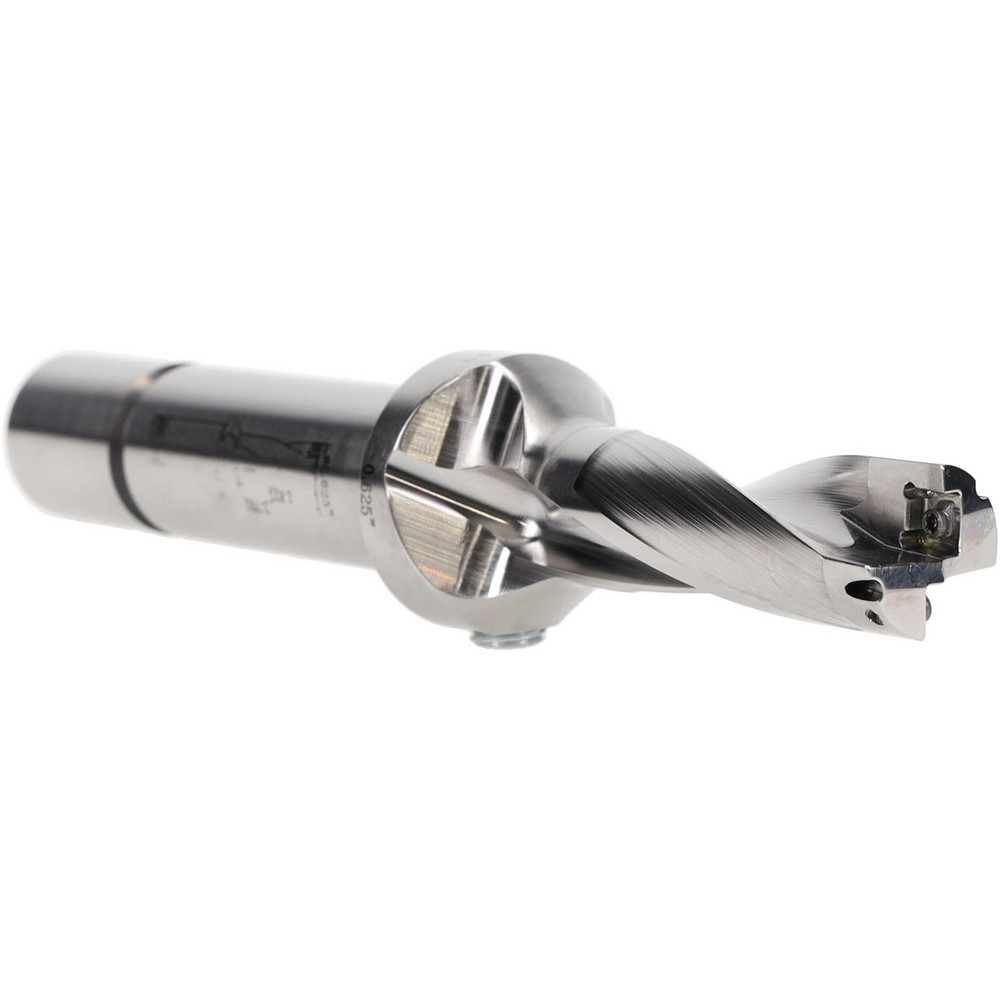

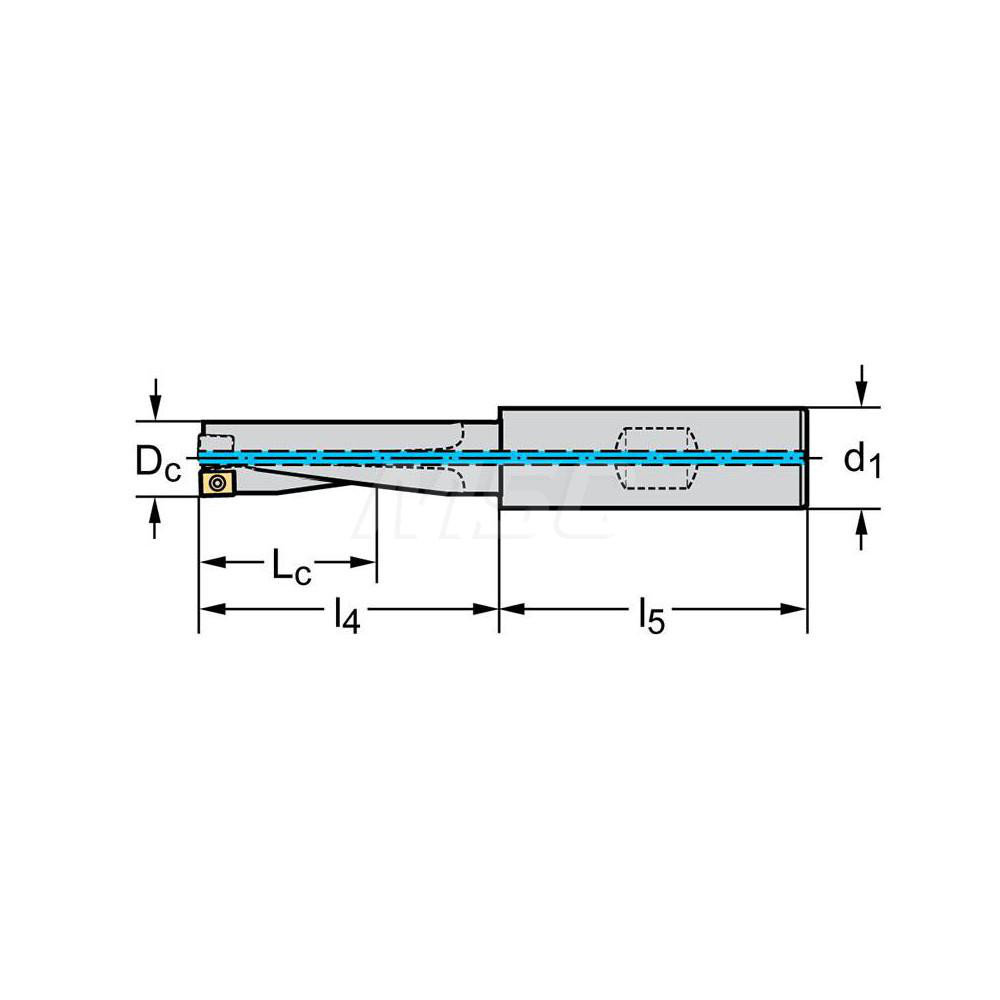

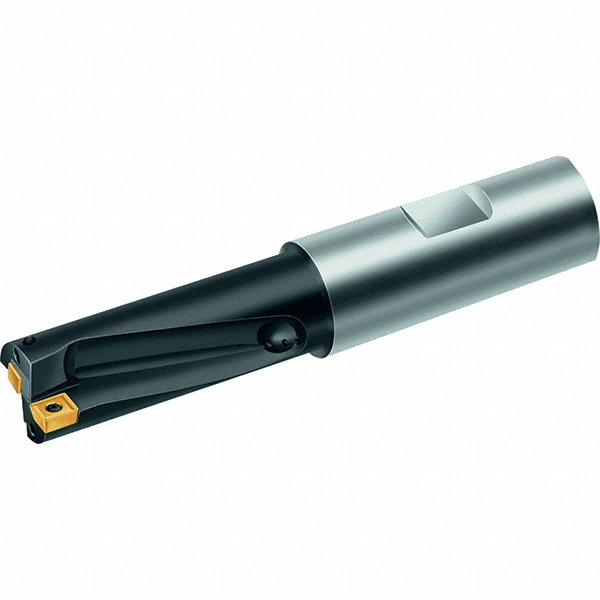

Weldon Flat Shank, Uses LCMX 050203 Inserts, Series B3213
| Compatible Drill Style | B3213 |
|---|---|
| Maximum Drill Diameter (mm) | 12.70 |
| Maximum Drill Diameter (Inch) | 1/2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Inch) | 1-1/2 |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (mm) | 38.00 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |

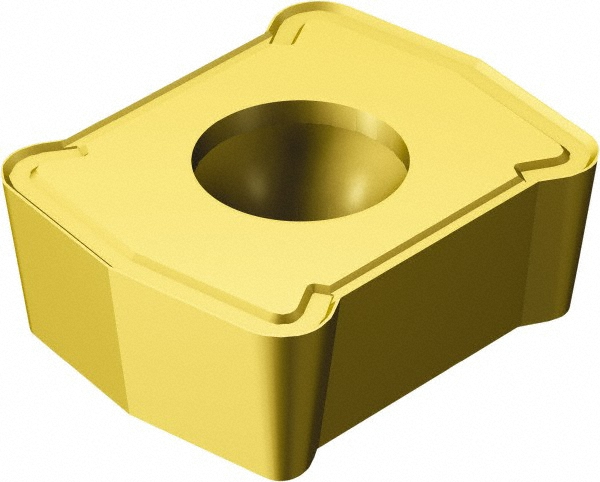

| Compatible Insert Style | LCMX |
| Compatible Insert Size Code | 050203 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.9890 |
| Series | B3213 |
| Flute Length (Decimal Inch) | 1.5000 |
| Body Length (mm) | 51.31 |
| Body Length (Decimal Inch) | 2.0200 |
| Shank Length (Decimal Inch) | 1.9690 |
| Shank Length (mm) | 50.00 |
| Tool Application | Solid Drilling; Plunging |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1570 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | LCMX050203 |

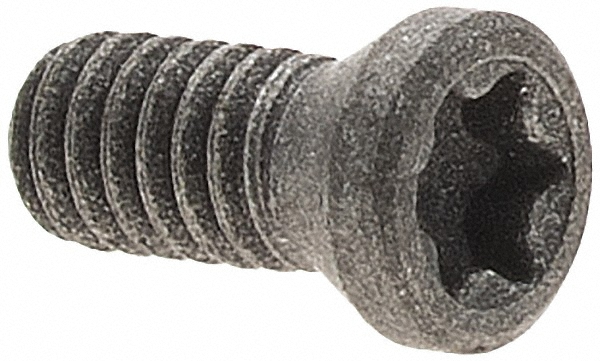

| Insert Lock Screw | FS1012 |
| Coolant Through | Yes |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 91346809 |
