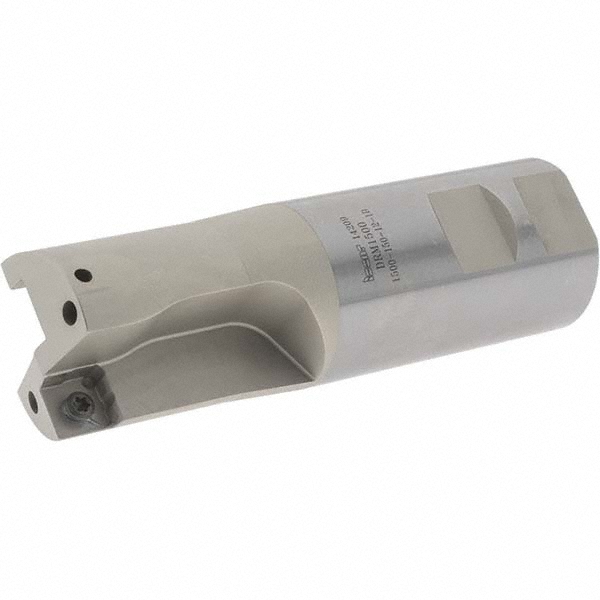

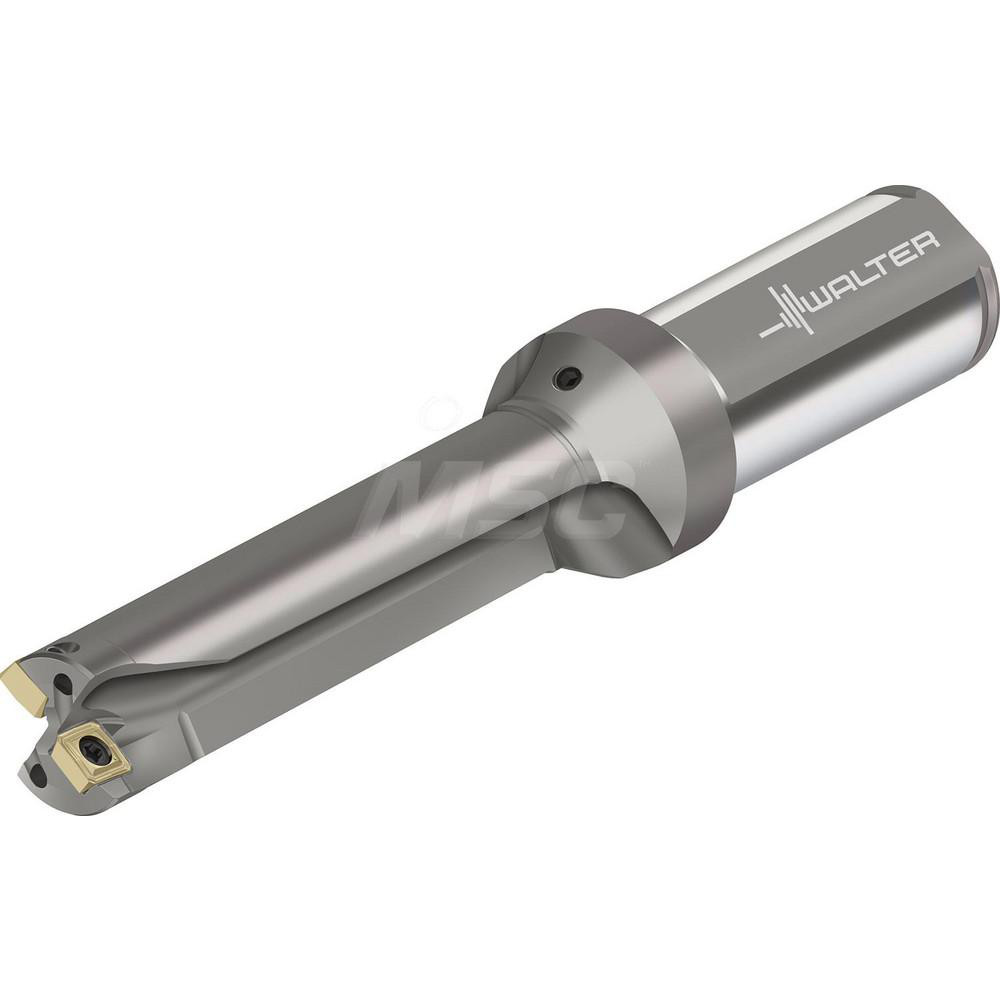

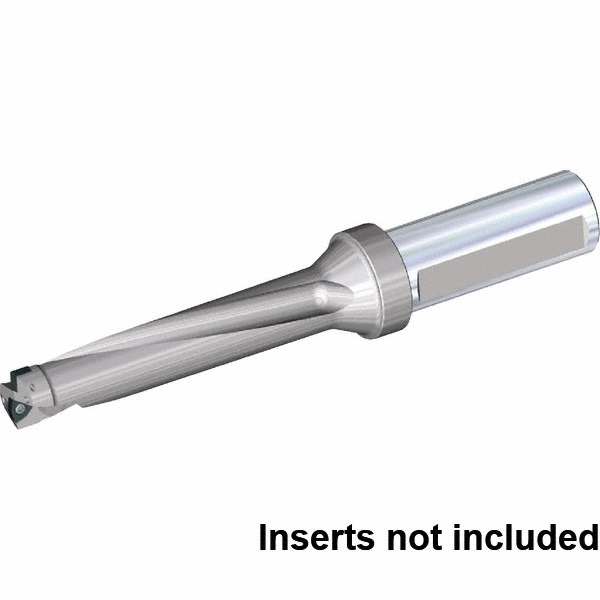

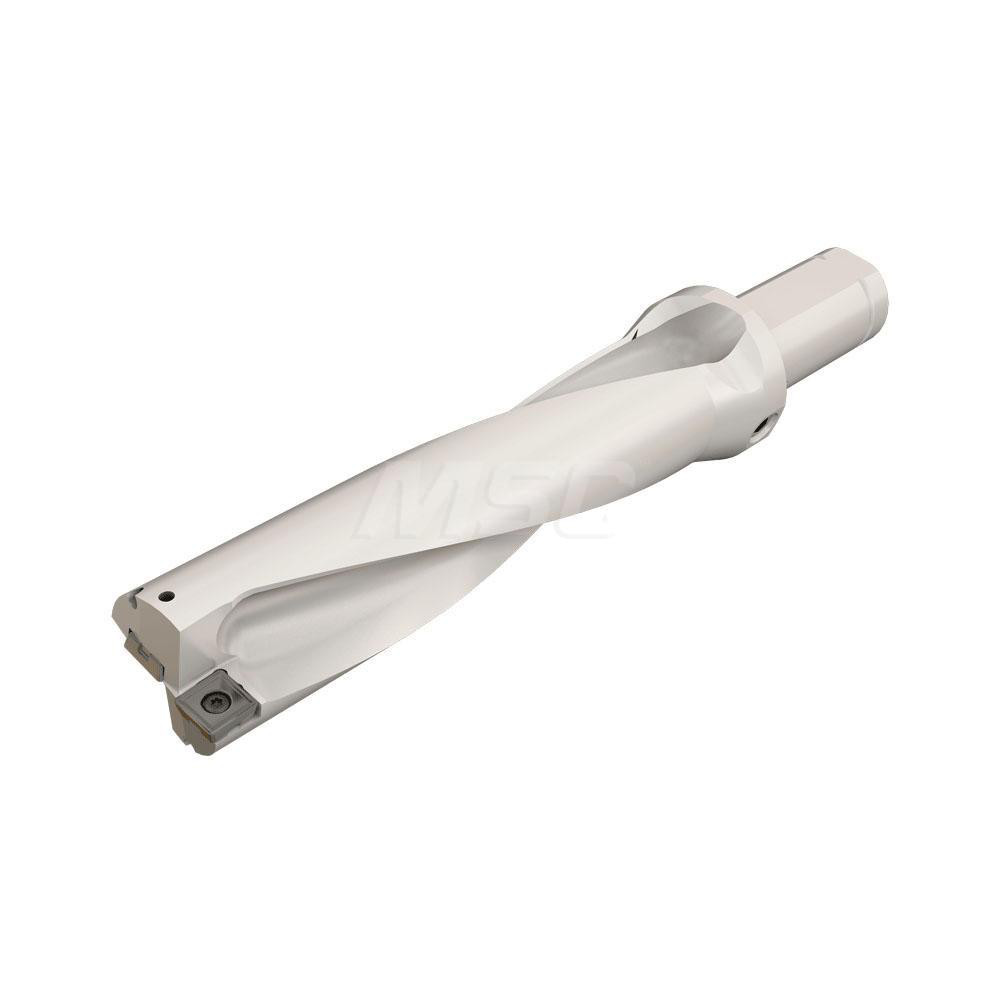

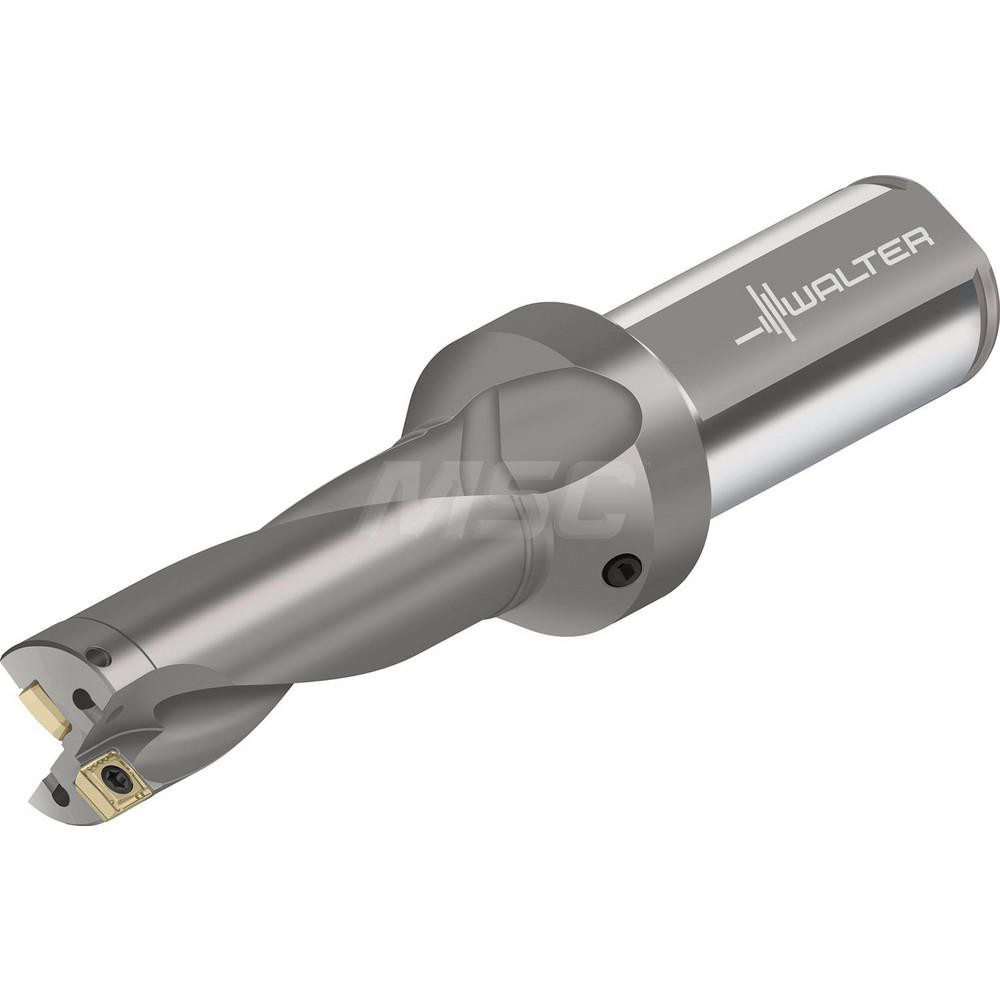

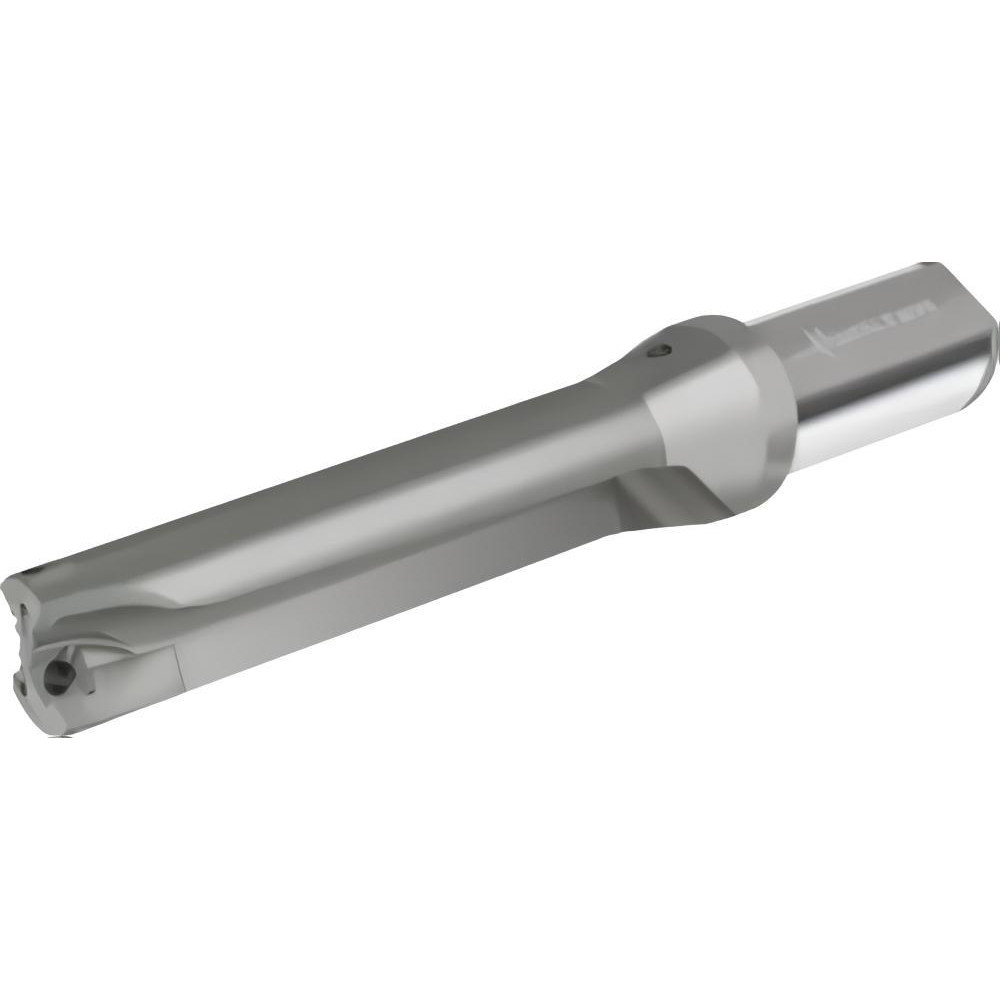

Weldon Flat & Flange Shank, Uses P284.S 5 Inserts, Series D3120
| Compatible Drill Style | D3120 |
|---|---|
| Maximum Drill Diameter (Inch) | 1-1/2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (Inch) | 6 |
| Maximum Drill Depth (Decimal Inch) | 6.0000 |
| Maximum Drill Depth (mm) | 152.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | P284.S |
| Compatible Insert Size Code | 5 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 10.3140 |
| Series | D3120 |
| Flute Length (Decimal Inch) | 6.0000 |
| Flute Length (mm) | 185.00 |
| Body Length (mm) | 192.40 |
| Body Length (Decimal Inch) | 7.6260 |
| Shank Length (Decimal Inch) | 2.6880 |
| Shank Length (mm) | 68.27 |
| Tool Application | Solid Drilling; Plunging |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | P284.S-5 |
| Collar Diameter (Decimal Inch) | 1.9290 |
| Insert Lock Screw | FS2139 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 11608957 |
