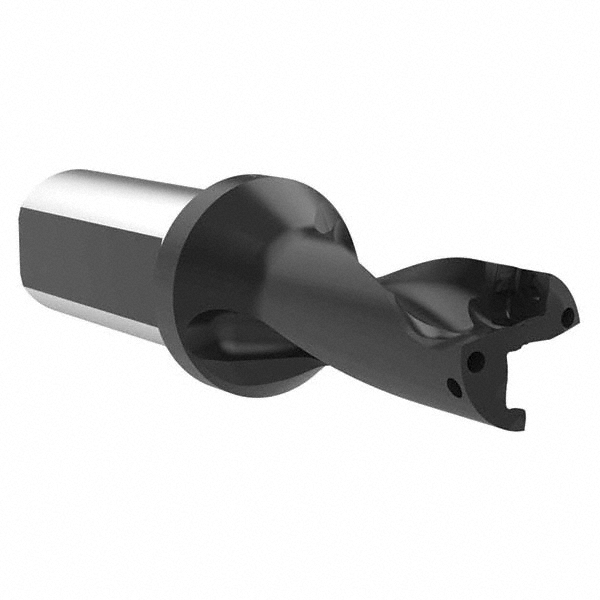

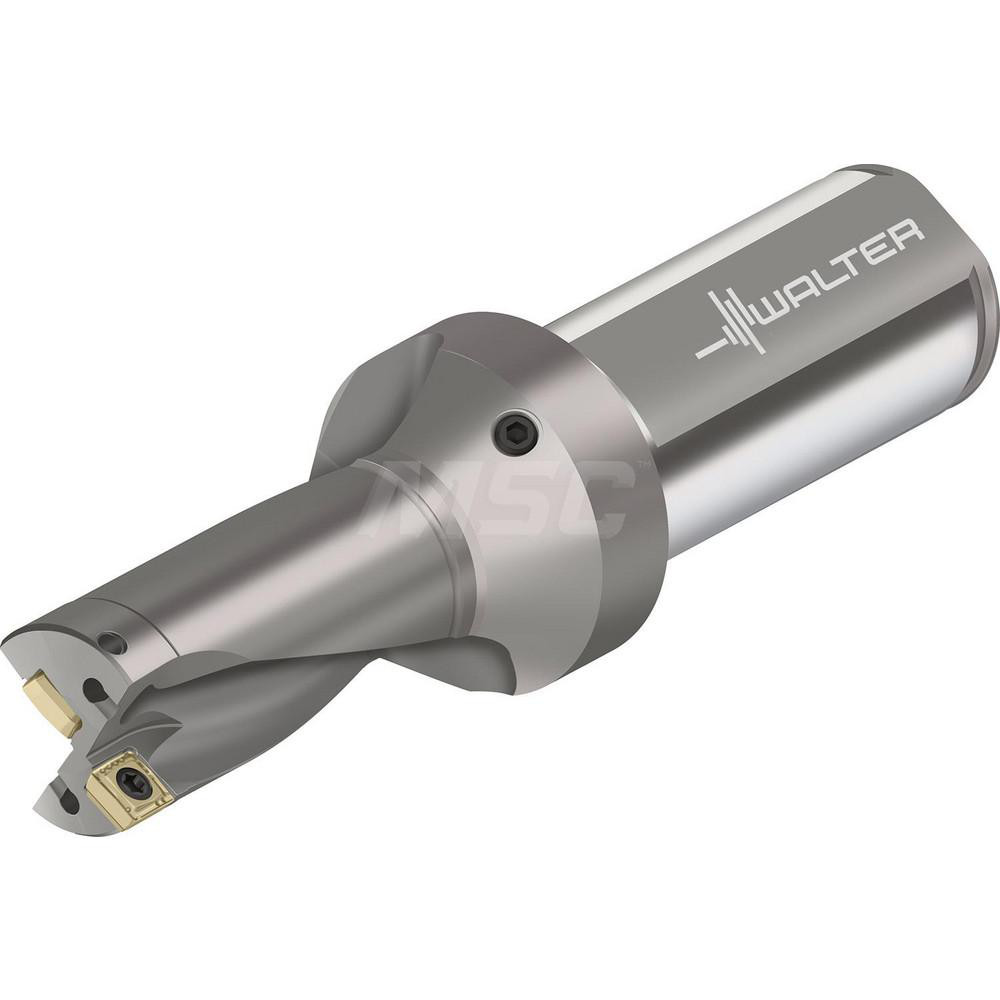

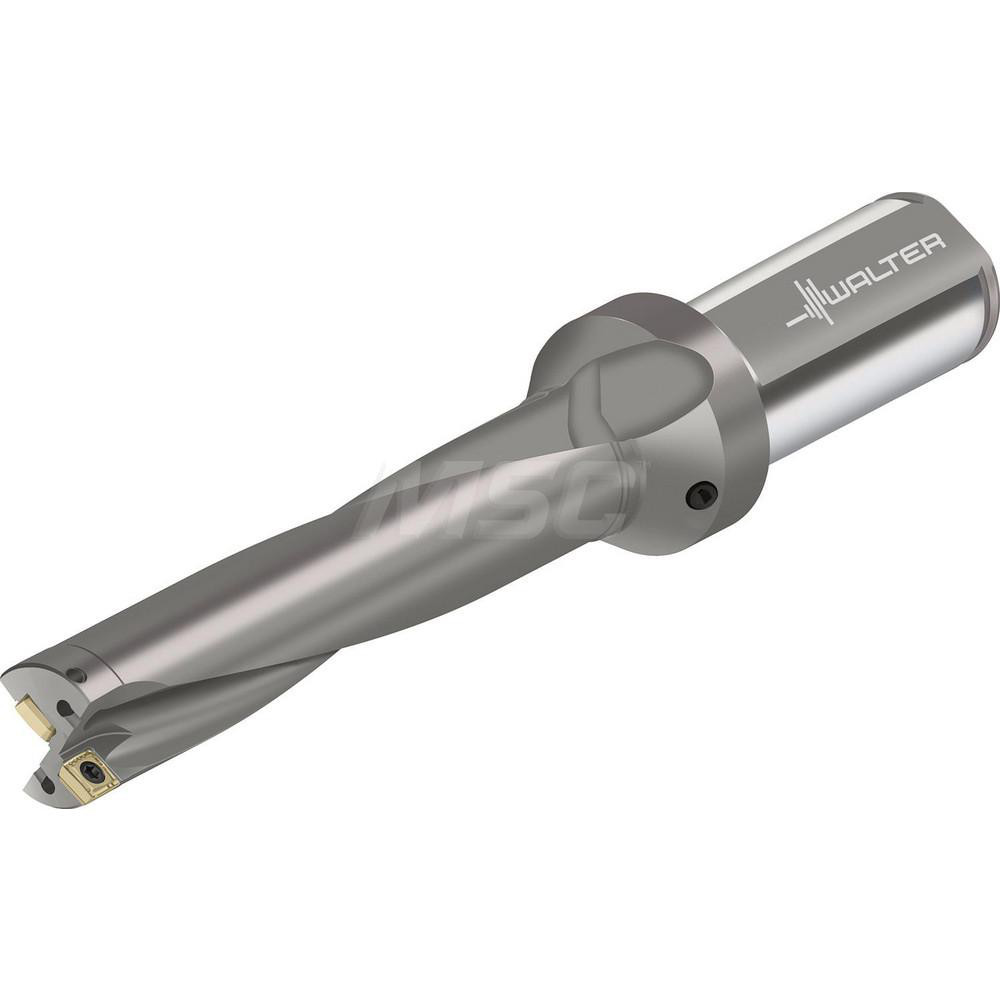

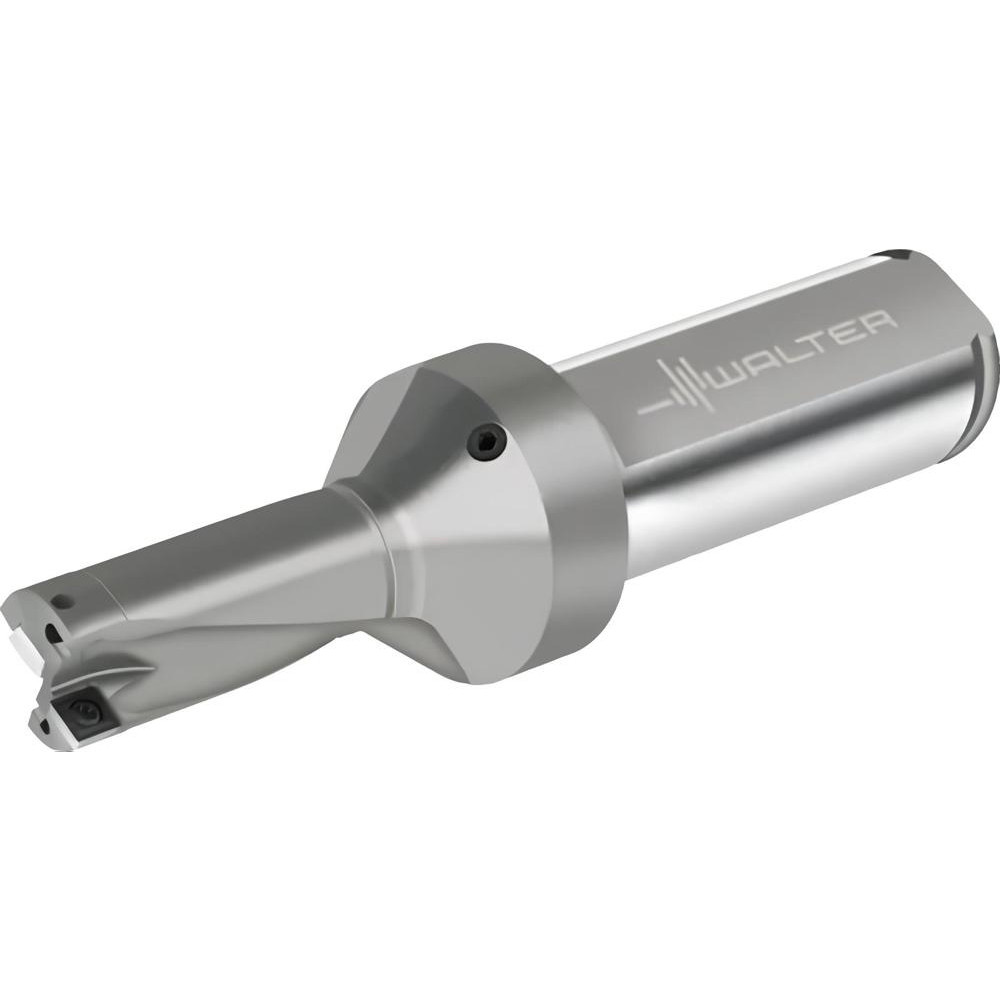

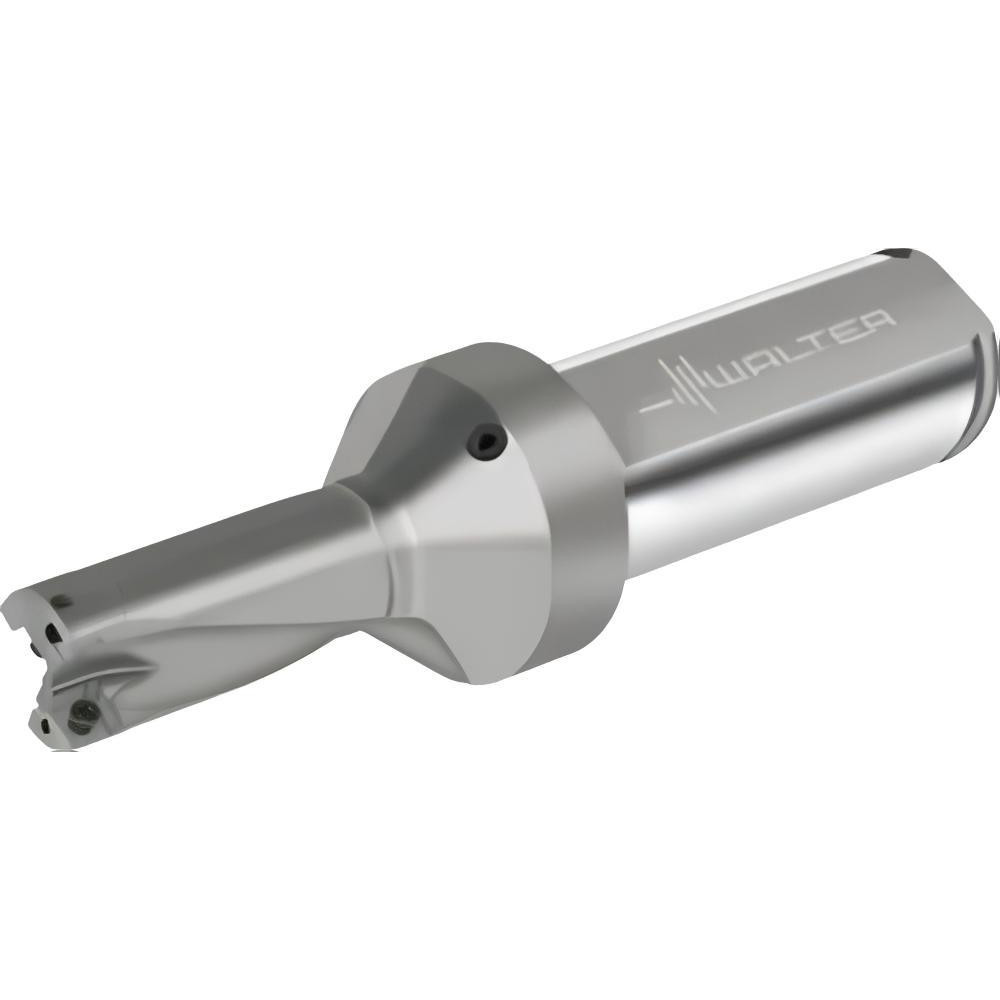

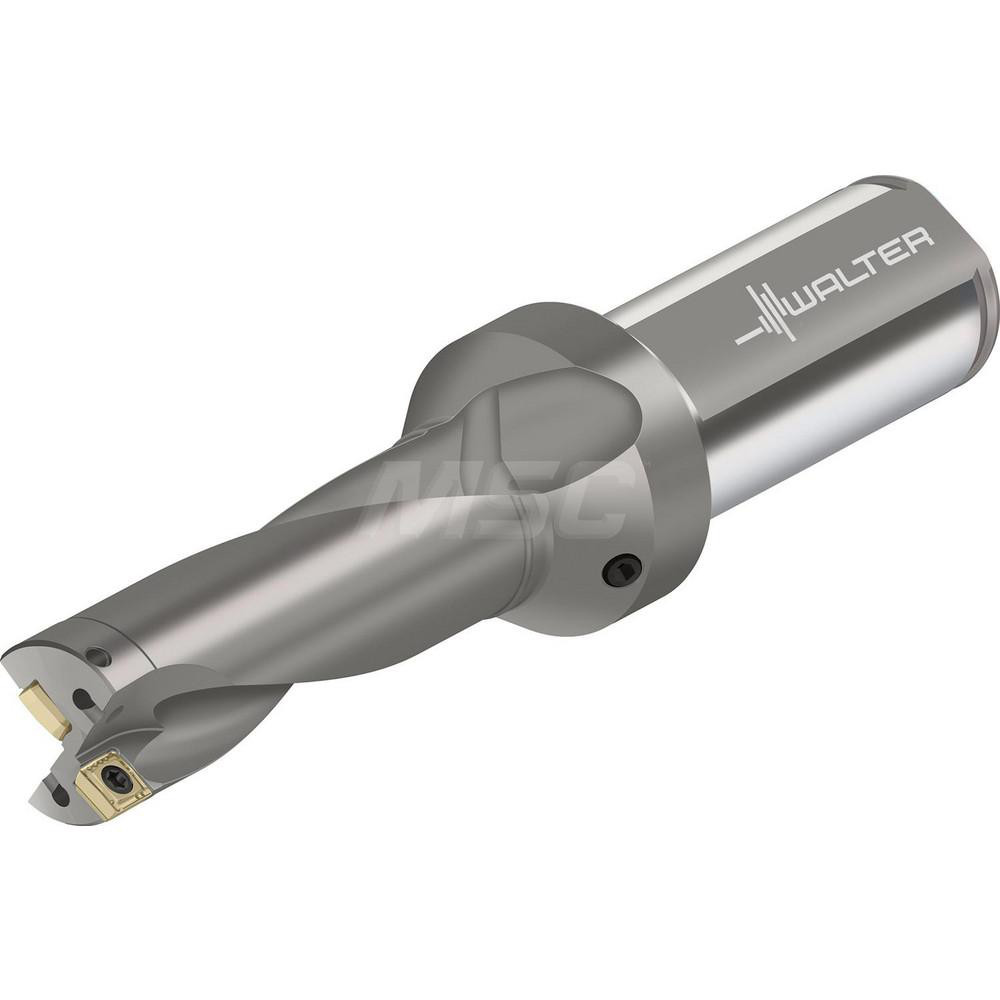

Weldon Flat & Flange Shank, Uses P484.P & P484.C 2 Inserts, Series D4120
| Compatible Drill Style | D4120 |
|---|---|
| Maximum Drill Diameter (Inch) | 3/4 |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (Inch) | 1-1/2 |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (mm) | 38.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |

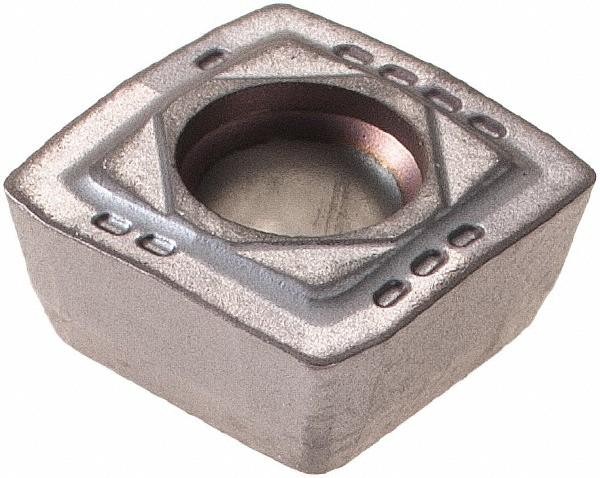

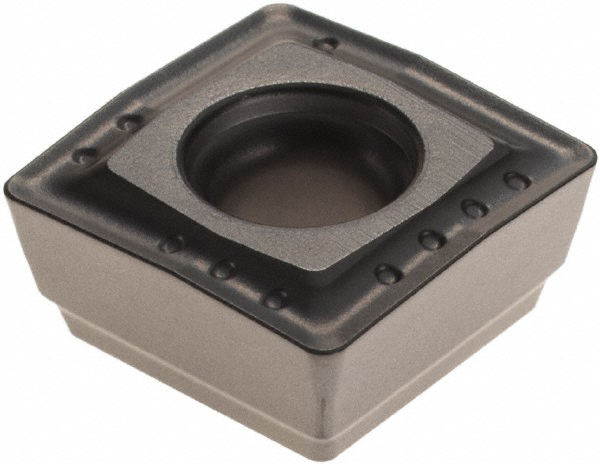

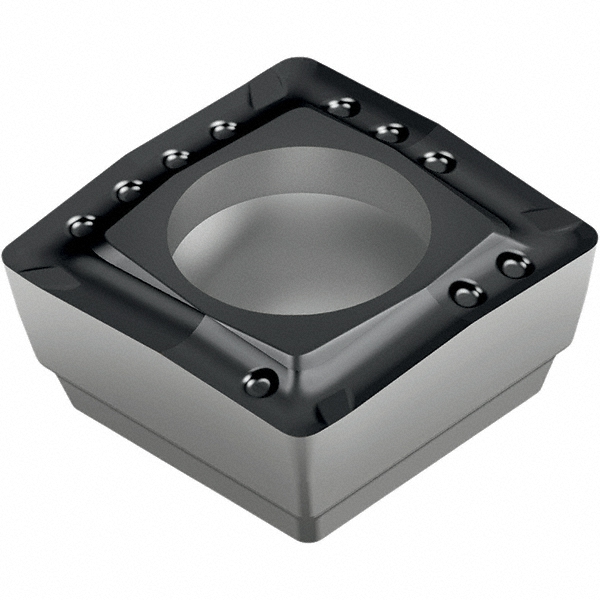

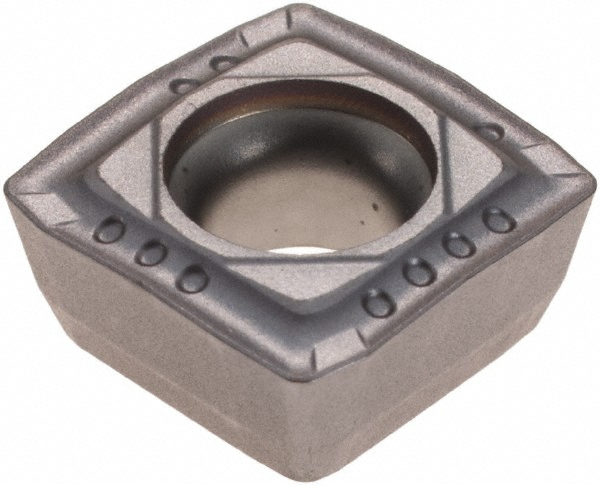

| Compatible Insert Style | P484.P; P484.C |
| Compatible Insert Size Code | 2 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.7810 |
| Overall Length (Inch) | 4-25/32 |
| Series | D4120 |
| Flute Length (Decimal Inch) | 1.5000 |
| Flute Length (mm) | 57.80 |
| Body Length (mm) | 63.19 |
| Body Length (Decimal Inch) | 2.5000 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Tool Application | Solid Drilling; Plunging |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2340; 0.2170 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | P484.P-2; P484.C-2 |
| Collar Diameter (Decimal Inch) | 1.3750 |
| Insert Lock Screw | FS2111 |
| Coolant Through | Yes |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 17229857 |
