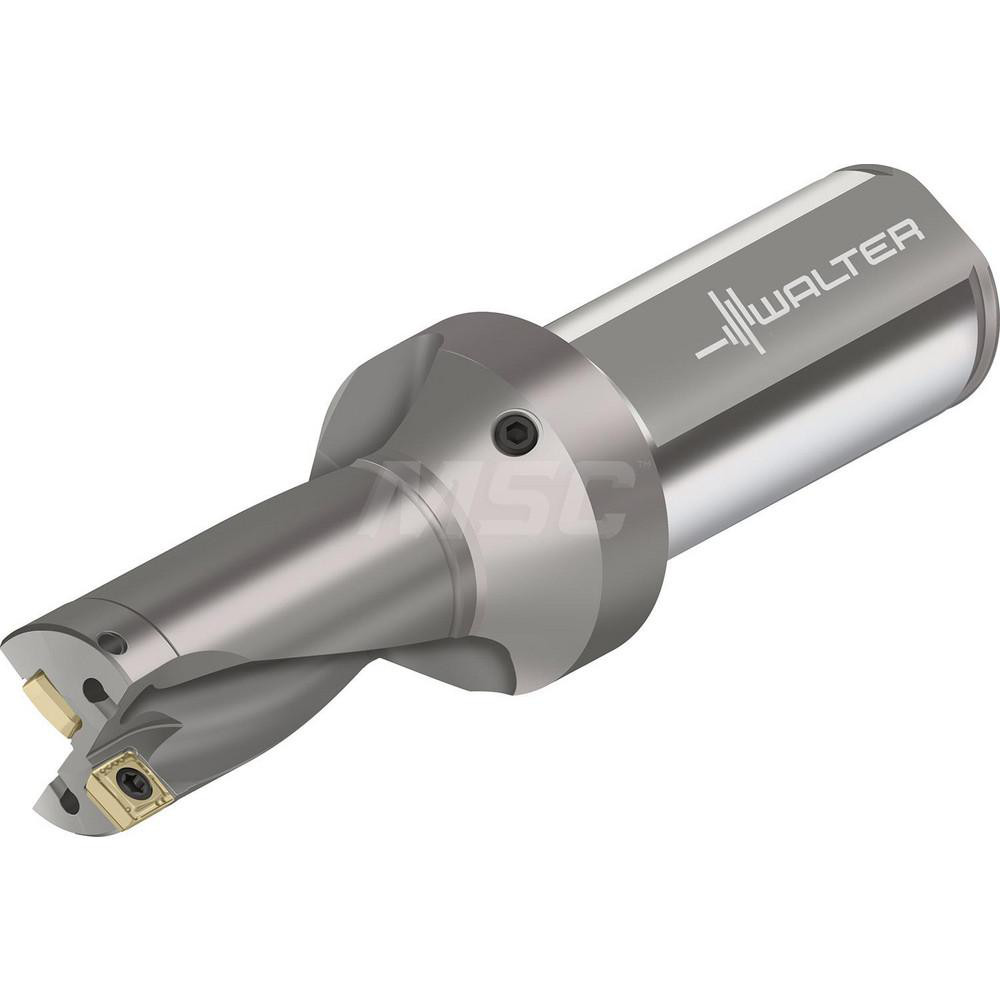

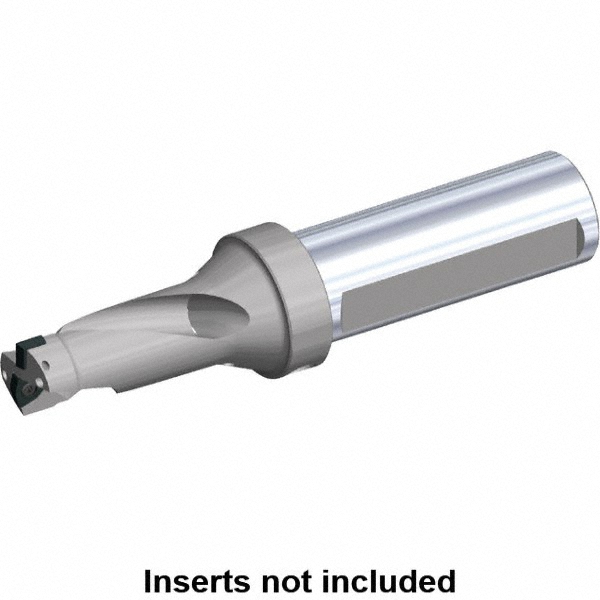

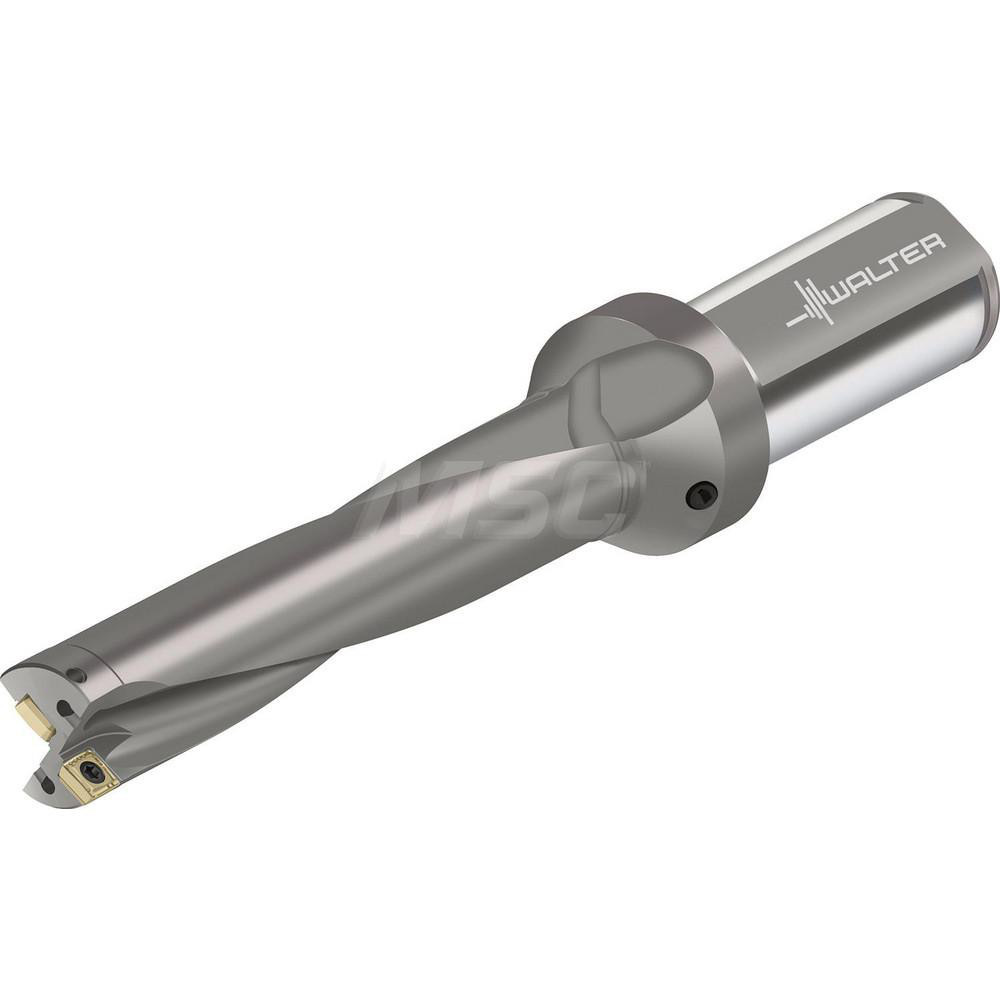

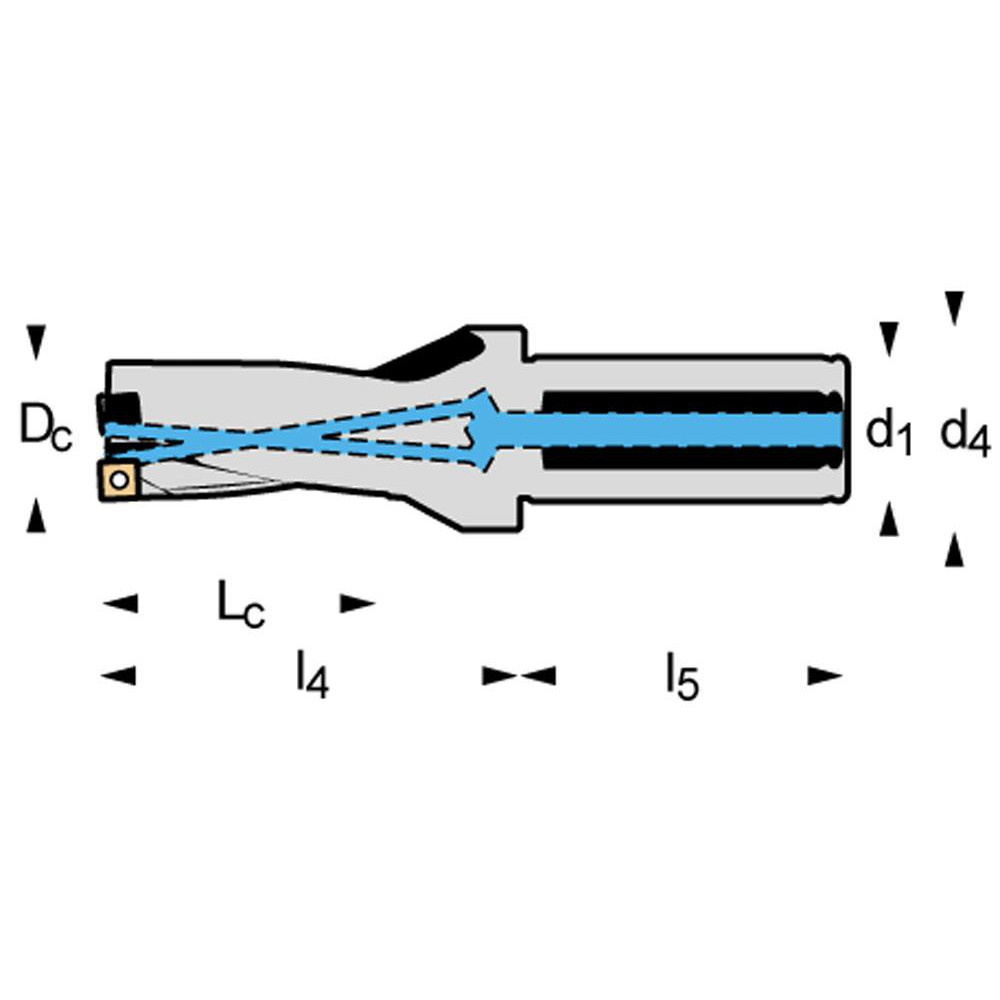

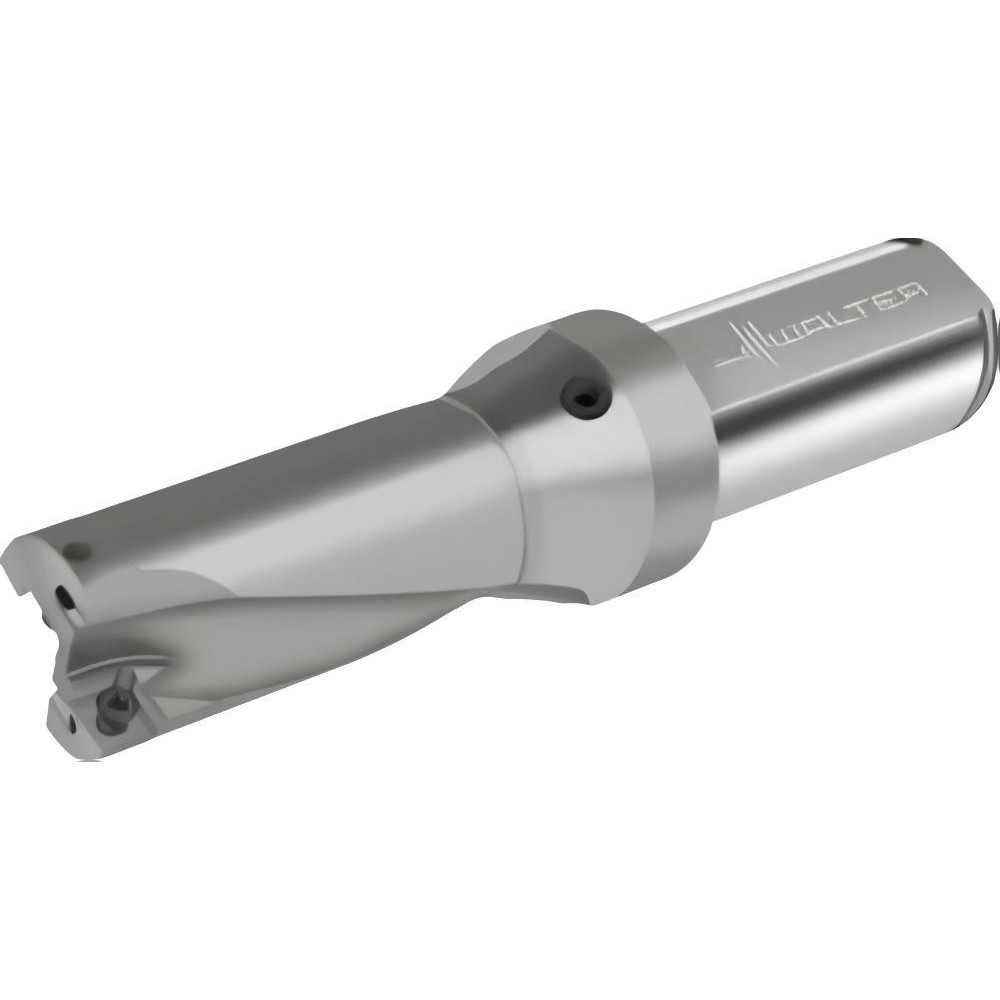

Weldon Flat & Flange Shank, Uses P484.P & P484.C 5 Inserts, Series D4120
| Compatible Drill Style | D4120 |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3750 |
| Maximum Drill Depth (Inch) | 2-3/4 |
| Maximum Drill Depth (Decimal Inch) | 2.7500 |
| Maximum Drill Depth (mm) | 70.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484.P; P484.C |
| Compatible Insert Size Code | 5 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.1610 |
| Series | D4120 |
| Flute Length (Decimal Inch) | 2.7500 |
| Flute Length (mm) | 94.60 |
| Body Length (mm) | 98.13 |
| Body Length (Decimal Inch) | 3.8800 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Tool Application | Solid Drilling; Plunging |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3760; 0.4050 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | P484.C-5; P484.P-5 |
| Collar Diameter (Decimal Inch) | 1.6250 |
| Insert Lock Screw | FS2080 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 17230004 |
