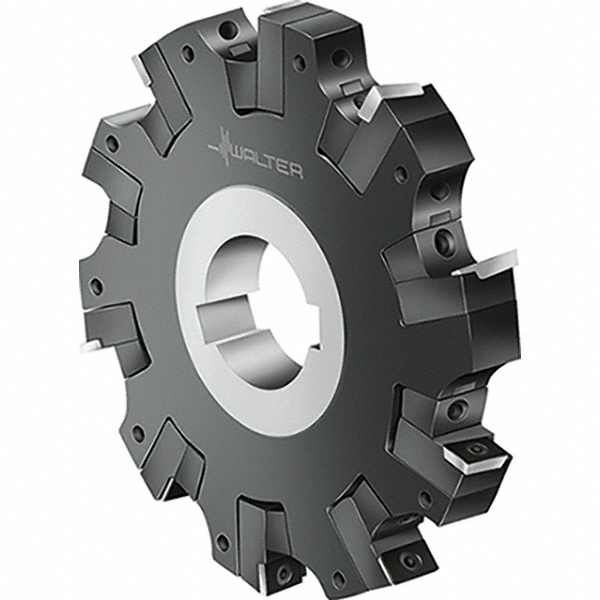

6 Tooth, Cross Teeth
| Cutting Width (mm) | 12.00 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.8100 |
| Hole Diameter (Decimal Inch) | 1.5750 |
| Cutter Diameter (Decimal Inch) | 6.2990 |
| Cutter Diameter (mm) | 160.00 |
| Tooth Type | Cross |
| Series | F2252 |
| Toolholder Style | F2252 |
| Hub Diameter (Decimal Inch) | 2.5590 |
| Hub Diameter (mm) | 65.00 |
| Maximum RPM | 9999 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Non-ISO |
| Primary Workpiece Material Code | O |
| Secondary Workpiece Material Code | P; S; K; M; N |
| Minimum Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Cutting Width (Decimal Inch) | 0.5510 |
| Maximum Cutting Width (mm) | 14.00 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 6.2990 |
| Manufacturers Catalog Number | F2252.B.160.Z06.12.S685 |
| Number Of Teeth | 6 |
| Country of Origin | Germany |
| MSC Number | MSC# 47304217 |
