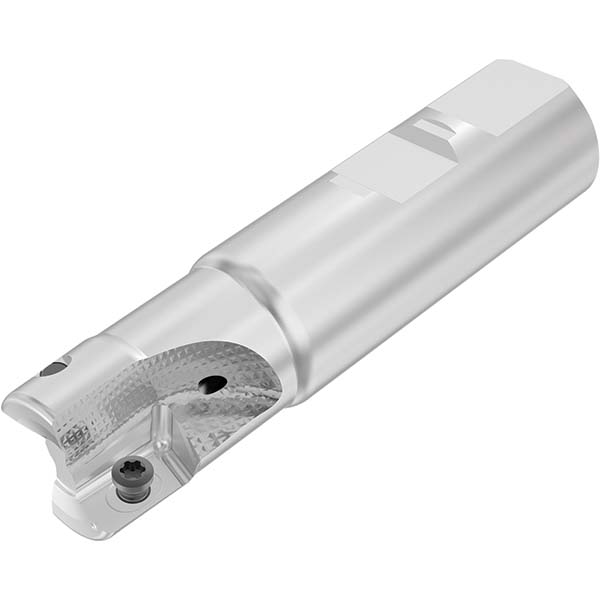

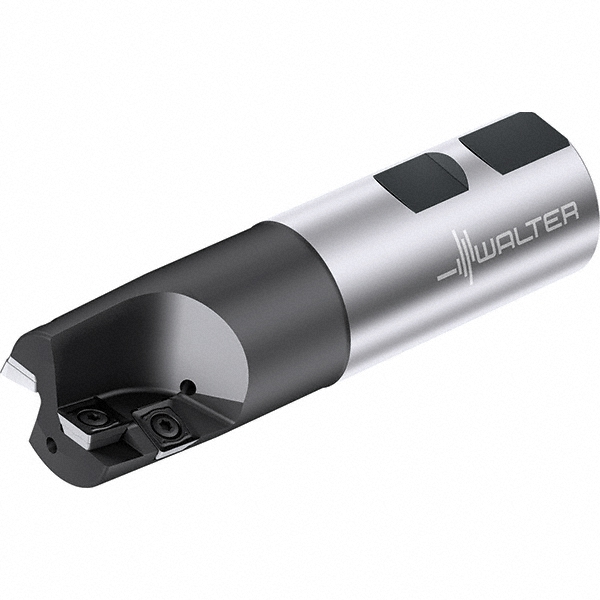

Uses (2) Inserts, Through Coolant, 1 mm OAL

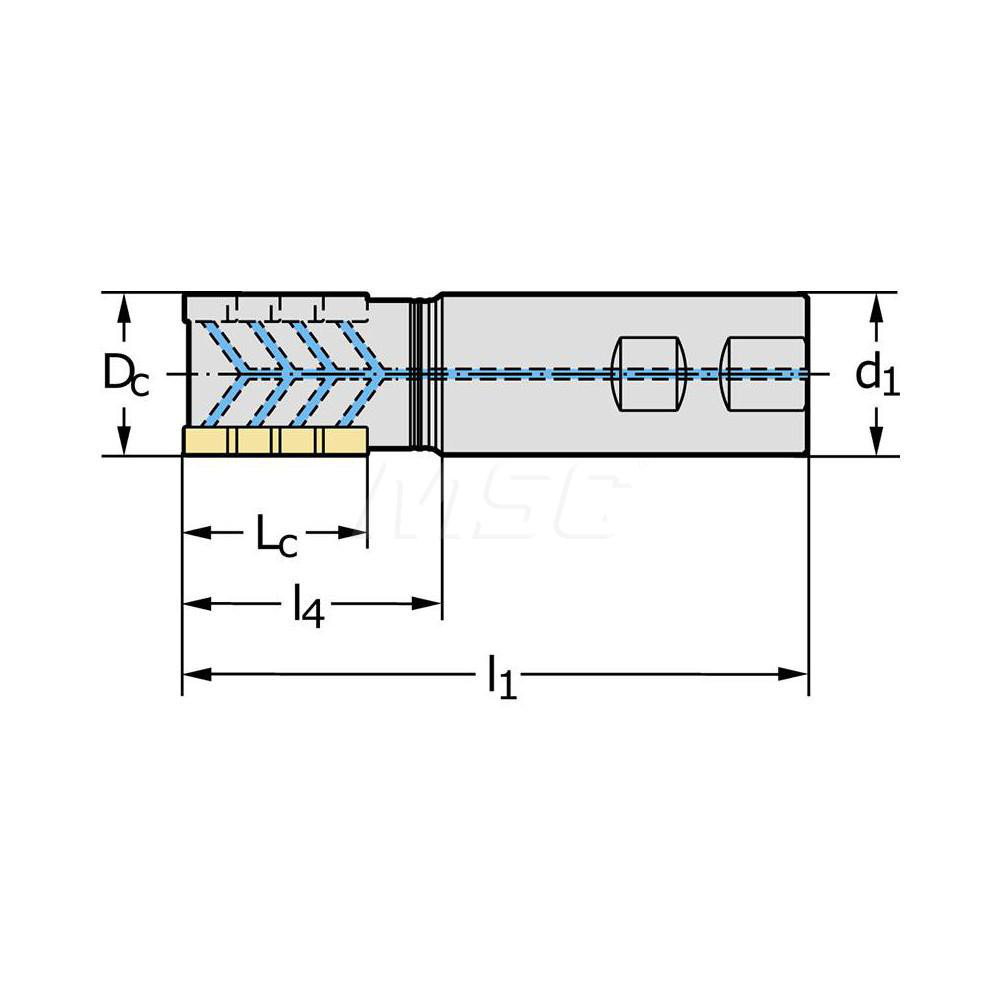

| Cutting Diameter | 0.9840 in |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 1.00 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Cutter Style | F5038 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Shank Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Series | F5038-W; F5038 |
| Lead Angle | 0 |
| Shank Length (mm) | 57.00 |
| Head Length (mm) | 43.00 |
| Maximum RPM | 39600 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Glass; Graphite |
| Secondary Workpiece Material Code | O |
| Standards | ISO:ANSI |
| UNSPSC Code | 27112803 |
| ISO Number | F5038.W25.025.Z02.32 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 31151145 |
