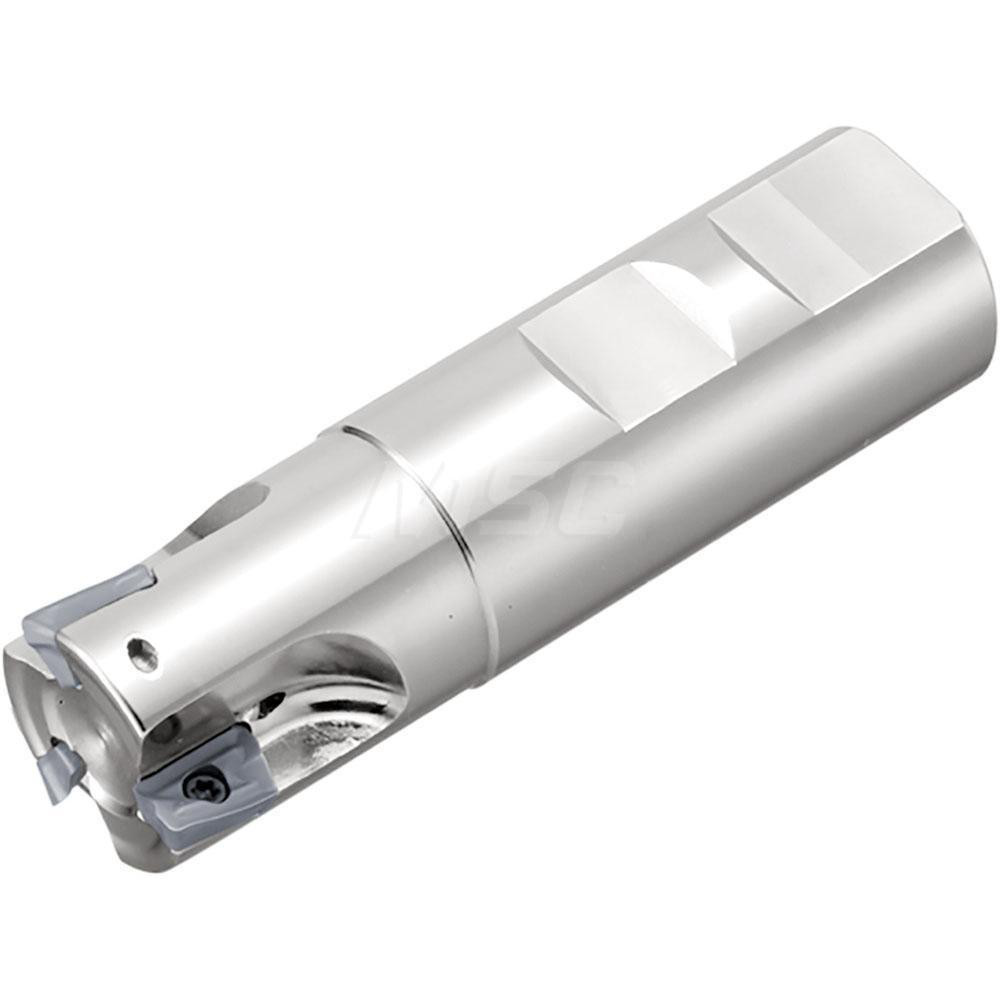

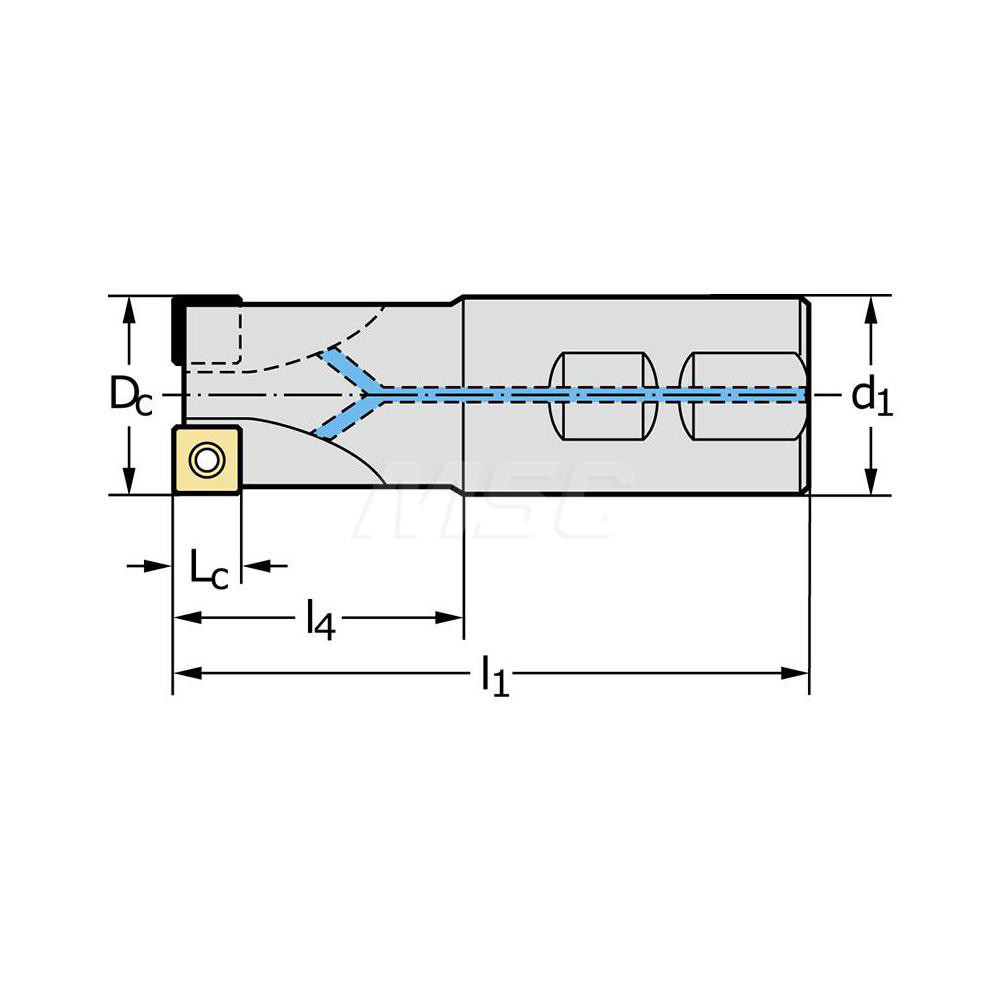

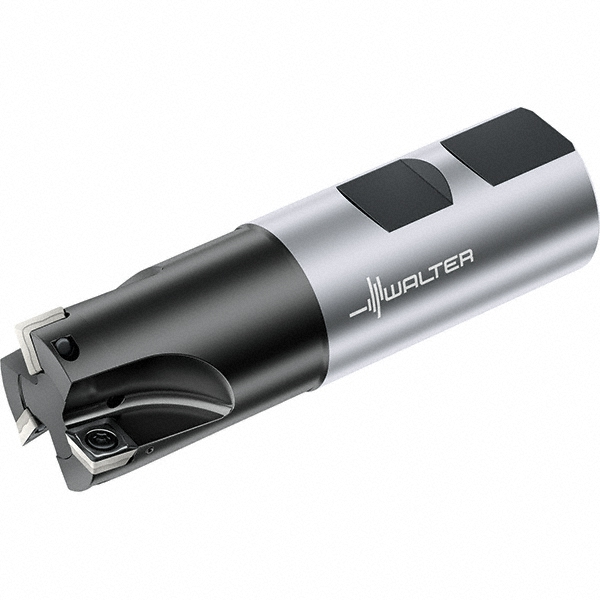

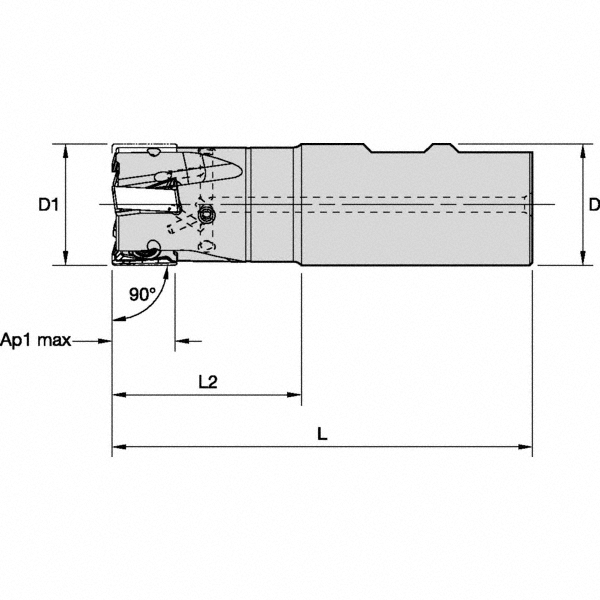

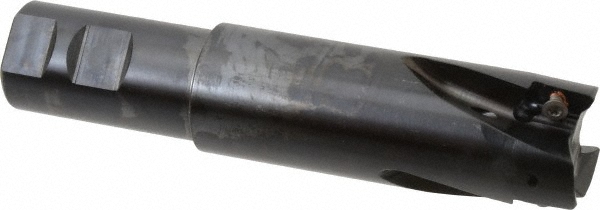

Uses (3) Inserts, Through Coolant, 94 mm OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Overall Length (Decimal Inch) | 3.7010 |
| Overall Length (mm) | 94.00 |
| Maximum Depth of Cut (mm) | 8.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.3310 |
| Cutter Style | M4132 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 31.75 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | M4132-UW |
| Lead Angle | 0 |
| Maximum RPM | 33800 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Hard Material; Glass; Graphite |
| Secondary Workpiece Material Code | H; O |
| Standards | ISO:ANSI |
| UNSPSC Code | 27112803 |
| ISO Number | M4132.031-W31-03-09 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 41374265 |
