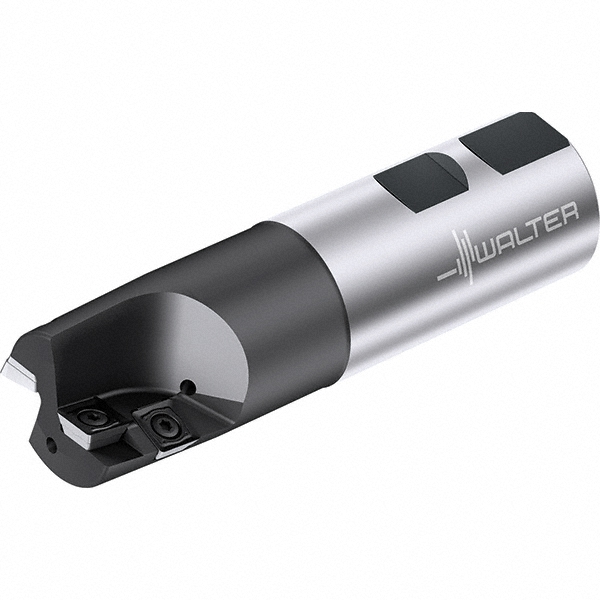

Uses (1) Insert, Through Coolant, 130 mm OAL

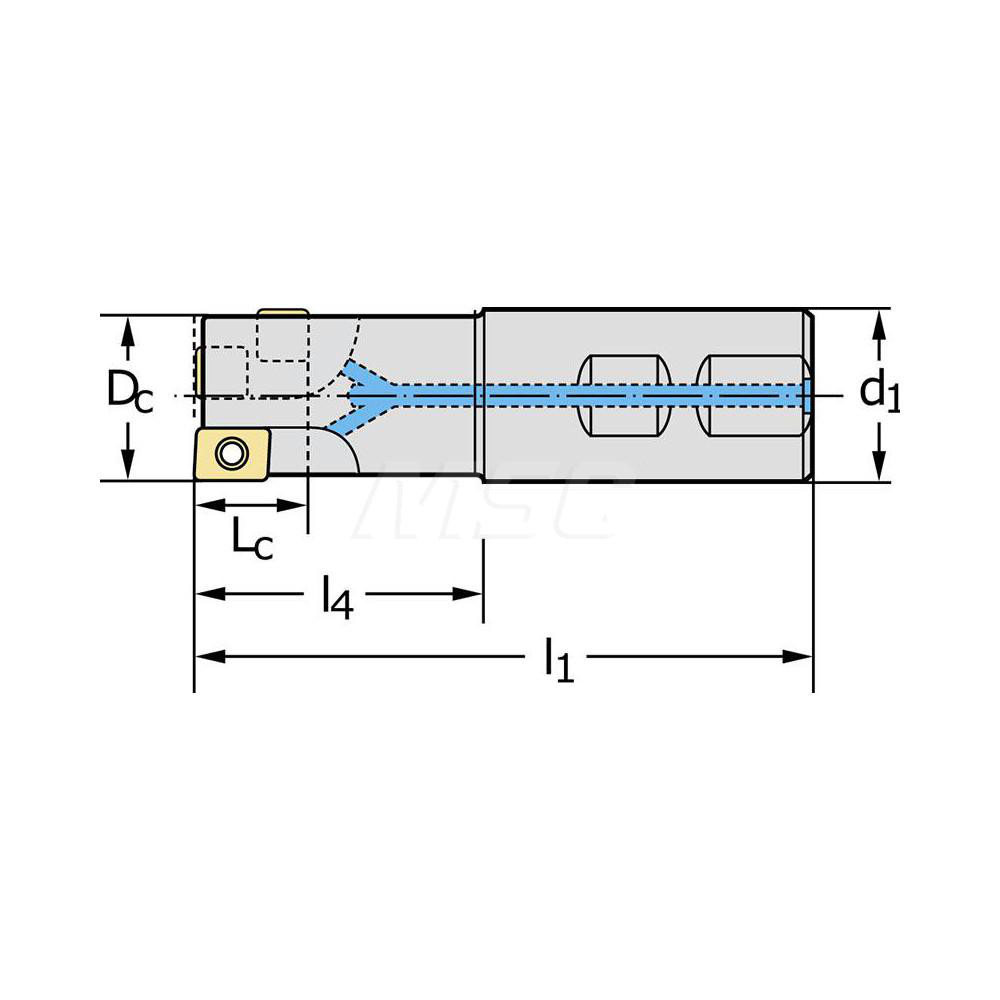

| Cutting Diameter | 1.5710 in |
|---|---|
| Cutting Diameter (mm) | 39.90 |
| Overall Length (Decimal Inch) | 5.1180 |
| Overall Length (mm) | 130.00 |
| Maximum Depth of Cut (mm) | 26.90 |
| Maximum Depth of Cut (Decimal Inch) | 1.0590 |
| Cutter Style | M4792 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | M4792-W |
| Lead Angle | 0 |
| Shank Length (mm) | 61.00 |
| Head Length (mm) | 69.00 |
| Maximum RPM | 5500 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Standards | ISO:ANSI |
| UNSPSC Code | 27112803 |
| ISO Number | M4792-040-W32-01-26 |
| Number Of Flutes | 1 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 41711235 |
