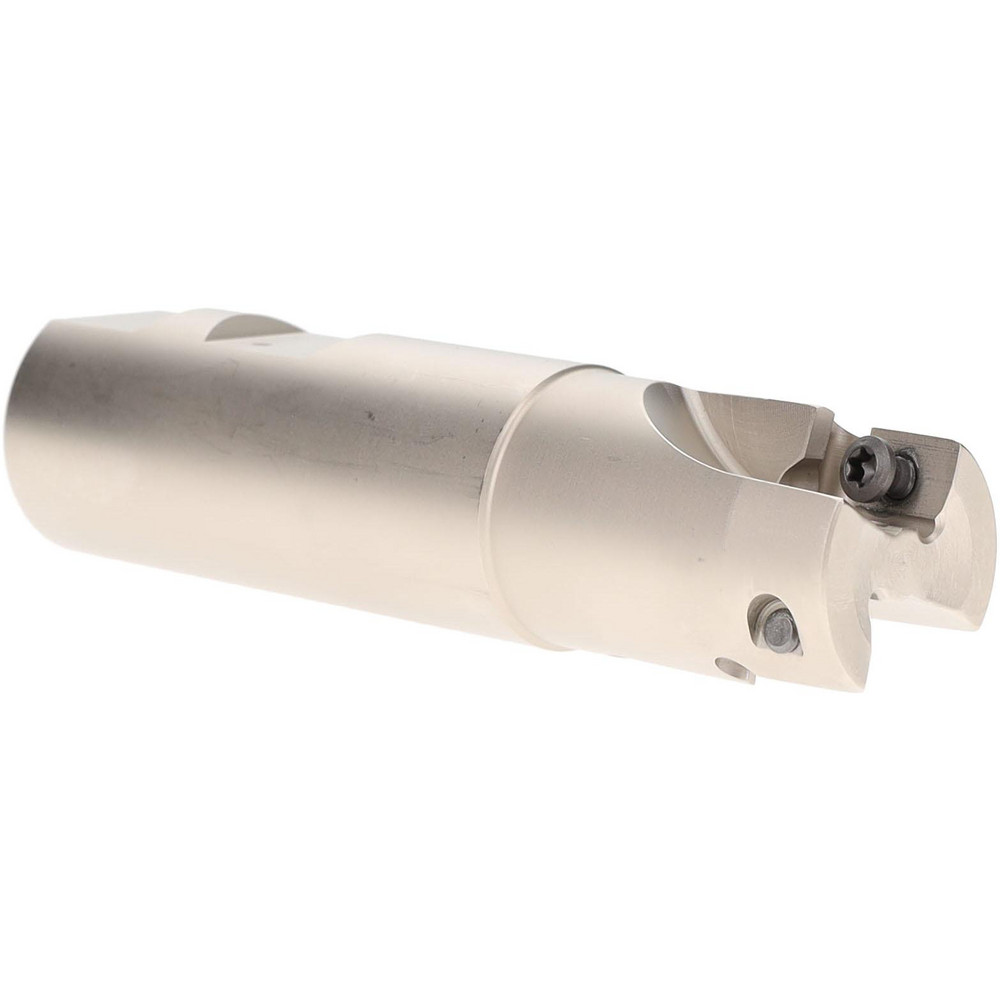

Uses (1) Insert, Through Coolant, 1.94 mm OAL
| Cutting Diameter | 1 |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Overall Length (Decimal Inch) | 3.9740 |
| Overall Length (mm) | 1.94 |
| Maximum Depth of Cut (mm) | 13.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.5240 |
| Cutter Style | M4792 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | M4792-UW |
| Lead Angle | 0 |
| Maximum RPM | 999999 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Standards | ISO:ANSI |
| UNSPSC Code | 27112803 |
| ISO Number | M4792.026-W26-01-13 |
| Number Of Flutes | 1 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 36590875 |
