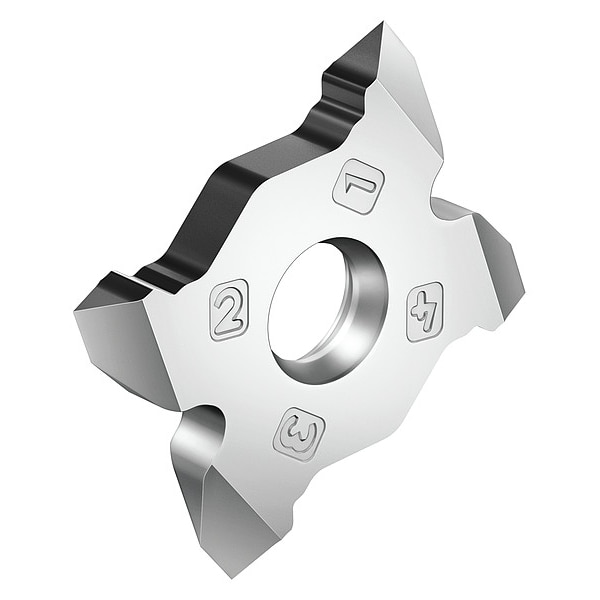

Indexable Thread Milling Insert, MX22, MX22-4E-EN-AG60
| Item | Indexable Thread Milling Insert |
|---|---|
| Insert Style | MX22 |
| Series | MX |
| Style | MX22 |
| No. of Edges | 4 |
| ISO Number | MX22-4E-EN-AG60 |
| Coating | PVD |
| Cutting Direction | Neutral |
| Insert Material | Carbide |
| ANSI Number | MX22-4E-EN-AG60 |
| Thread Profile | 60 Degrees Partial |
| Insert Type | On-Edge |
| Primary Material Application | High-Temperature Alloys, Stainless Steel, Steel |
| Thread Profile Type | 60 Degrees Partial |
| Manufacturer Grade | WSM33S |
| Thickness | 0.222 in |
| Number of Cutting Edges | 4 |
| Material - Machining | Carbide |
| Cutting Application | Threading |
| Included Angle | 60 deg |
| ANSI Code | MX22-4E-EN-AG60 |
| Thread Standard | Partial Profile 60 Degrees |
| Primary Material Application ISO Code | M, S, P |
| Threading Location | External |
| Finish - Machining | TiAlN+Al2O3+ |
| Coating Process | PVD |
| Package Quantity | 1 |
