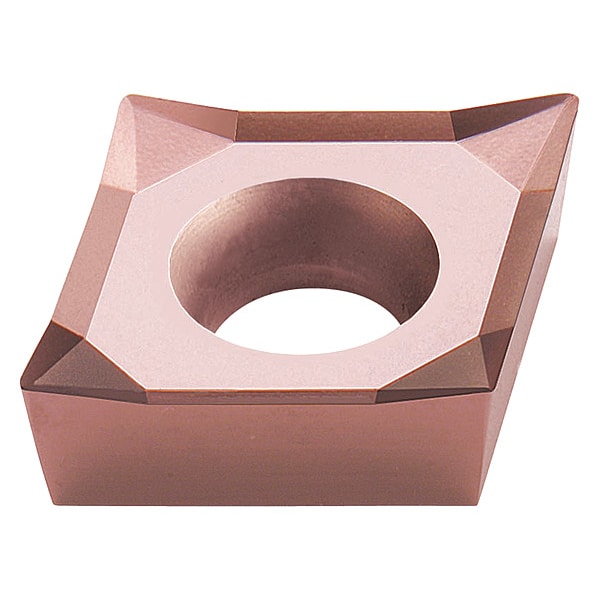

Indexable Thread Turning Insert, 3/8 in, CCGT, 0.008 in
| Item | Indexable Thread Turning Insert |
|---|---|
| Insert Style | CCGT |
| Inscribed Circle | 3/8 in |
| Chip-Breaker | Yes |
| Corner Radius | 0.008 in |
| Rake | Positive |
| ISO Number | CCGT09T302-PM2 |
| Cutting Direction | Neutral |
| Insert Holding Type | 3/8" |
| Thickness | 5/32 in |
| Chip-Breaker Code | PM2 |
| Measurement System | Fractional Inch |
| Manufacturer Grade | WXN10 |
| Through Hole Inside Dia. | 0.173 in |
| Primary Material Application ISO Code | N |
| Clearance Angle | 7 deg |
| Finish - Machining | PVD |
| Cutting Edge Length | 9.67 mm |
| ANSI Code | CCGT3(2.5)0.5-PM2 |
| Insert Type | CCGT |
| Included Angle | 80 Degrees |
| Material - Machining | Carbide |
| Coating Process | PVD |
| Primary Material Application | Non-Ferrous |
| Cutting Edge | 9.67mm |
| Package Quantity | 1 |
