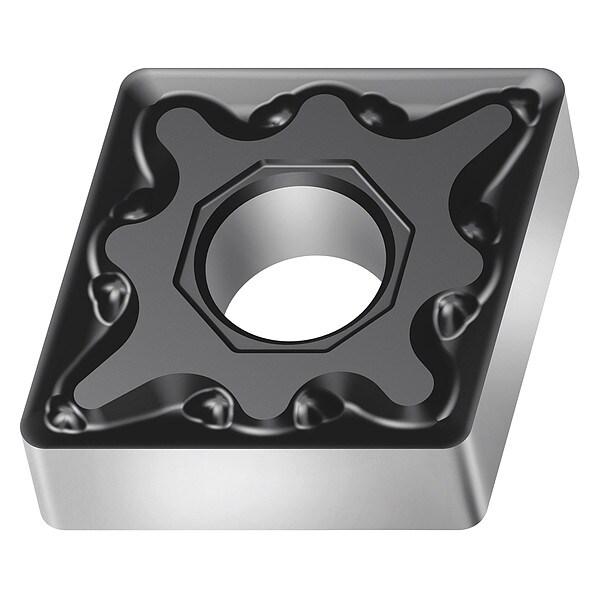

Indexable Thread Turning Insert, 5/8 in, CNMG, 0.03125 in
| Item | Indexable Thread Turning Insert |
|---|---|
| Insert Style | CNMG |
| Inscribed Circle | 5/8 in |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Negative |
| ISO Number | CNMG160608-NM4 |
| Mounting Hole Dia. | 1/4 in |
| Cutting Direction | Neutral |
| Manufacturer Grade | WSM20 |
| Finish - Machining | TiAlN+Al2O3+ |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Cutting Edge Length | 16.12 mm |
| Included Angle | 80 Degrees |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | NM4 |
| ANSI Code | CNMG542-NM4 |
| Primary Material Application ISO Code | M, S |
| Thickness | 1/4 in |
| Clearance Angle | 0 deg |
| Through Hole Inside Dia. | 1/4 in |
| Insert Holding Type | 5/8" |
| Insert Type | CNMG |
| Package Quantity | 1 |
