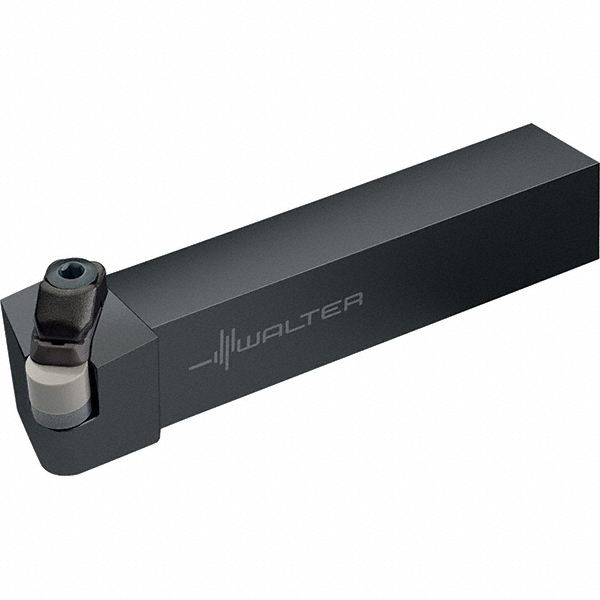

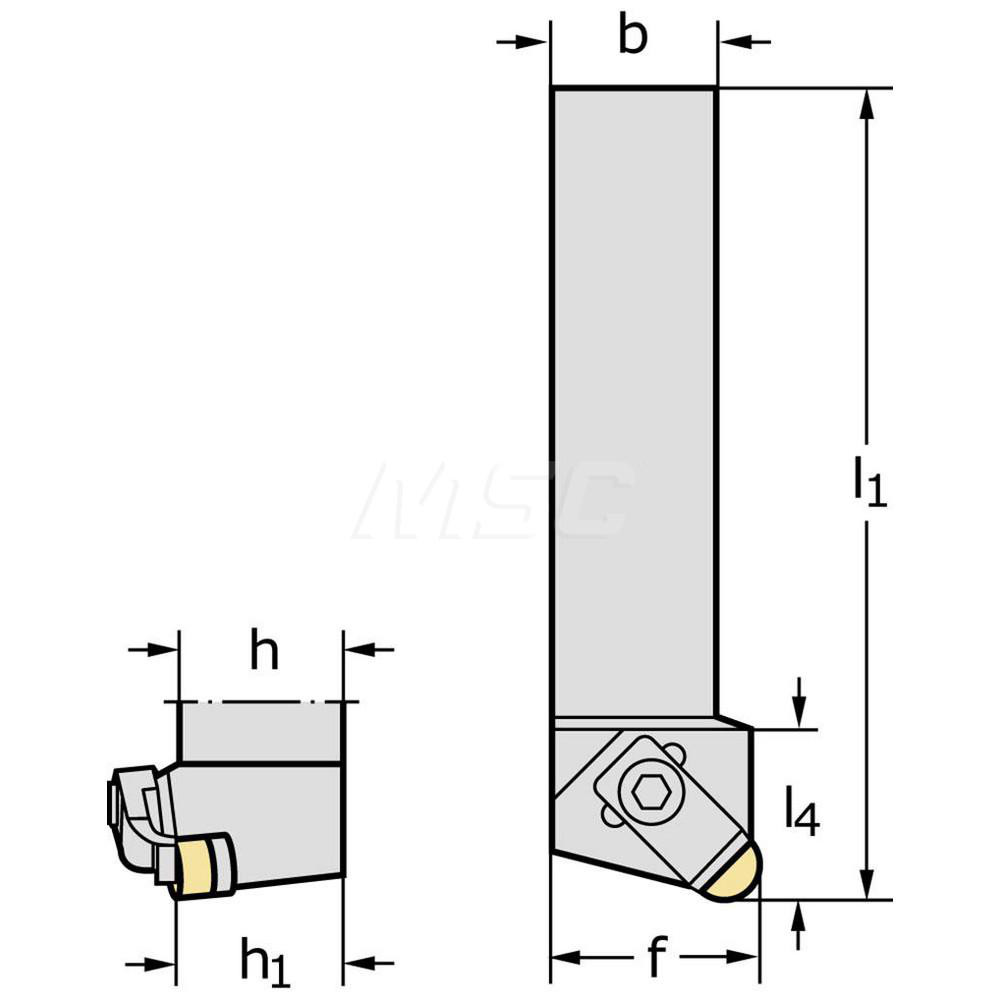

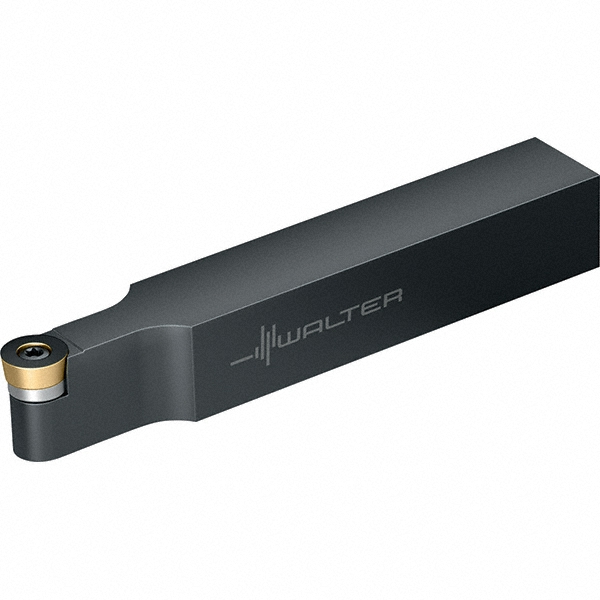

25.00 x 25.00 mm Shank, 150.00 mm OAL
| Toolholder Style | CRSN |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 0.0 |
| Insert Compatibility | RNGN 1207.. |
| Insert Holding Method | Clamp |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | RNGN 1207 |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.1024 |
| Head Length (mm) | 28.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| UNSPSC Code | 23153308 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 53049292 |
