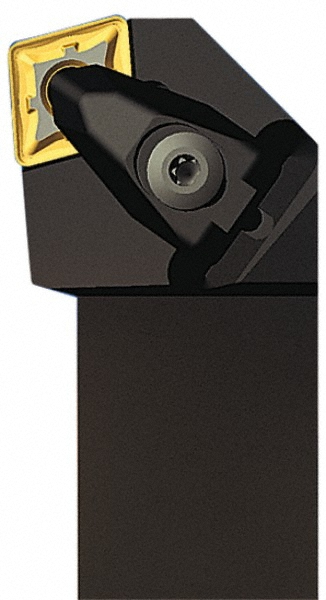

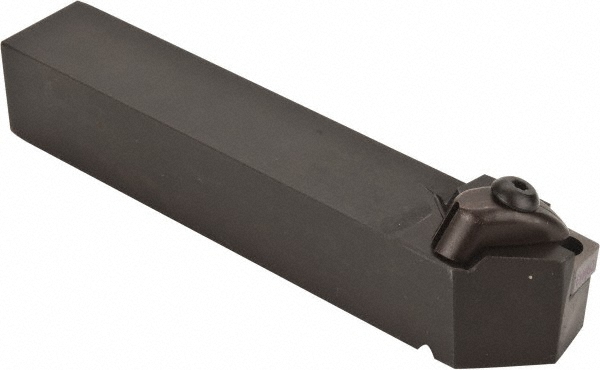

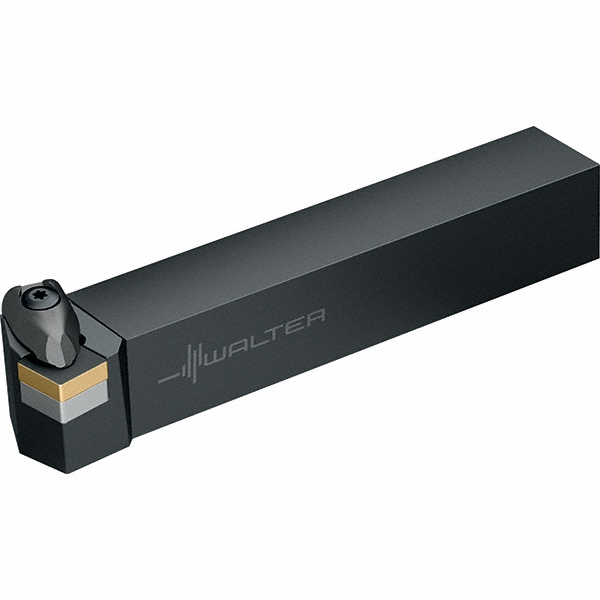

1-1/4" Shank
| Toolholder Style | DCKN |
|---|---|
| Hand of Holder | Right Hand |

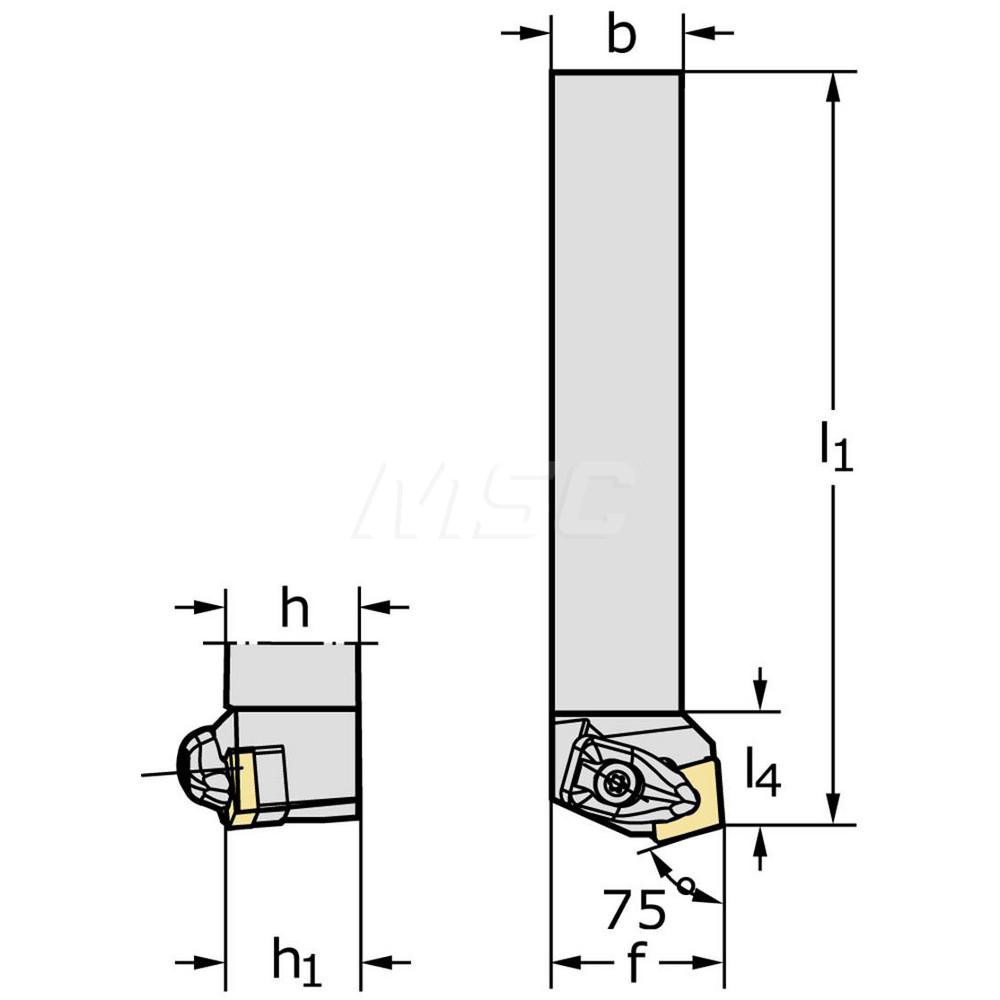

| Lead Angle | 75.0 |
| Insert Compatibility | CN.. 1606..; CN.. 54.. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | CN1606; CN54 |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.0200 |
| Maximum Overhang (Inch) | 1.0600 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Width (Decimal Inch) | 0.6340 |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 37118601 |
