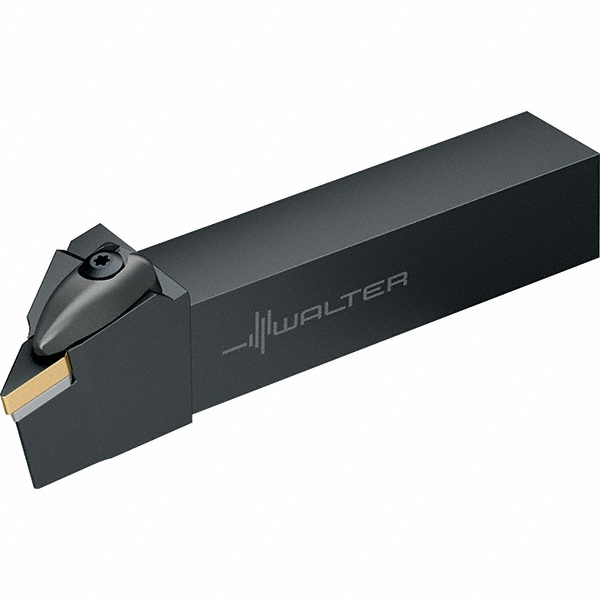

25.00 x 25.00 mm Shank, 150.00 mm OAL
| Toolholder Style | DVPN |
|---|---|
| Hand of Holder | Left Hand |

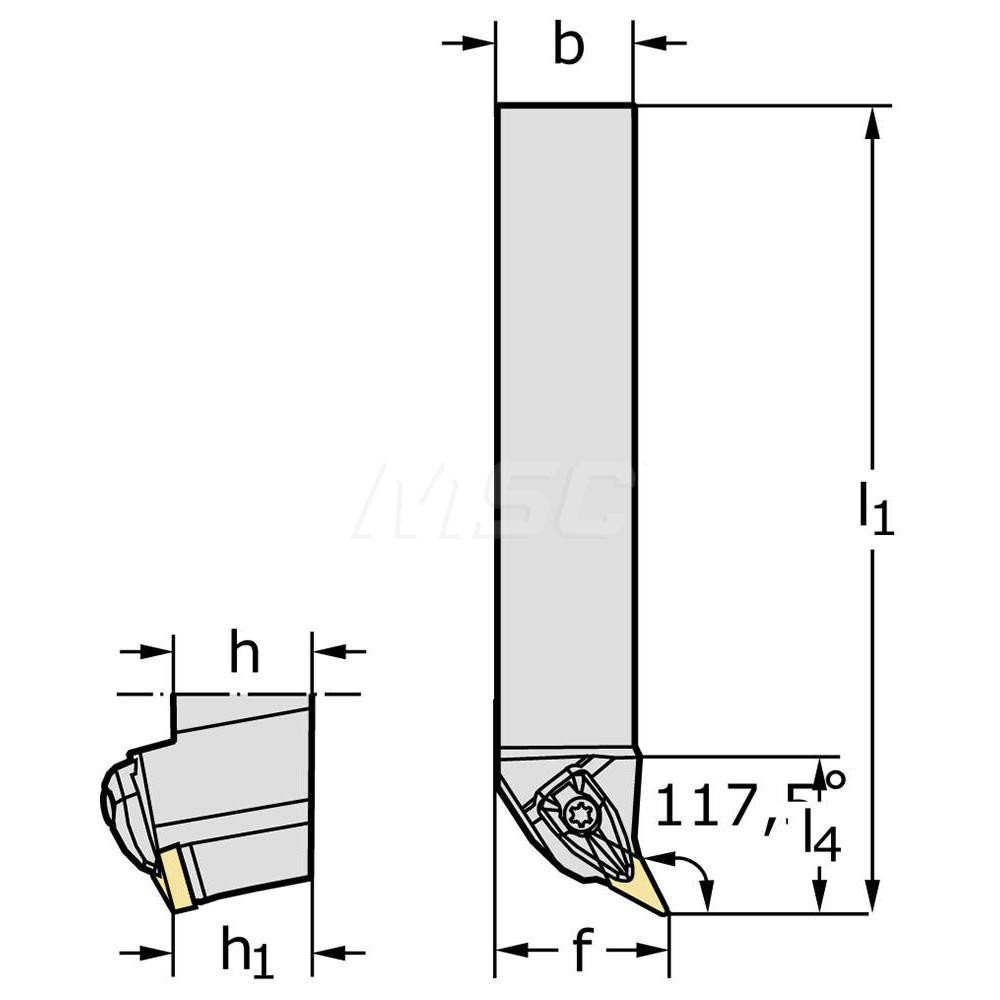

| Lead Angle | 117.5 |
| Insert Compatibility | VN..1604.. |
| Insert Holding Method | Clamp |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | VN1604 |
| Rake Angle | -4 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.5433 |
| Head Length (mm) | 39.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Standards | ISO; ANSI |
| Insert Width (mm) | 16.00 |
| Insert Width (Decimal Inch) | 0.6299 |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 53049243 |
