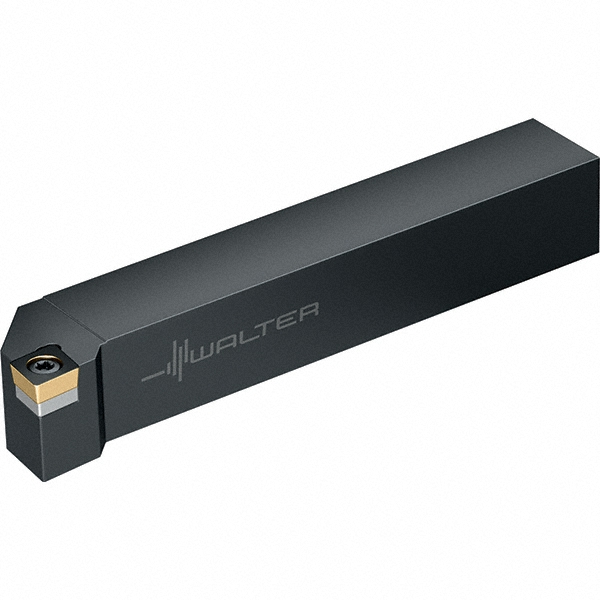

1-1/4" Shank

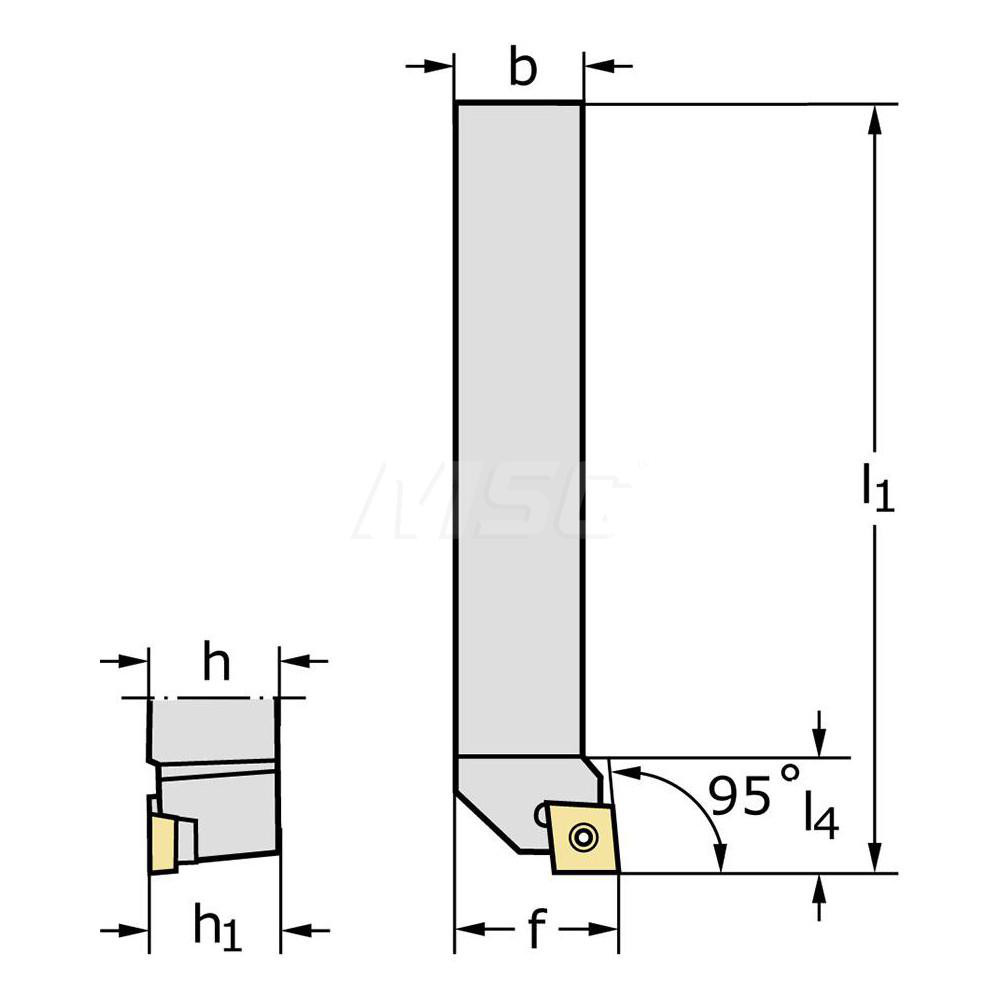

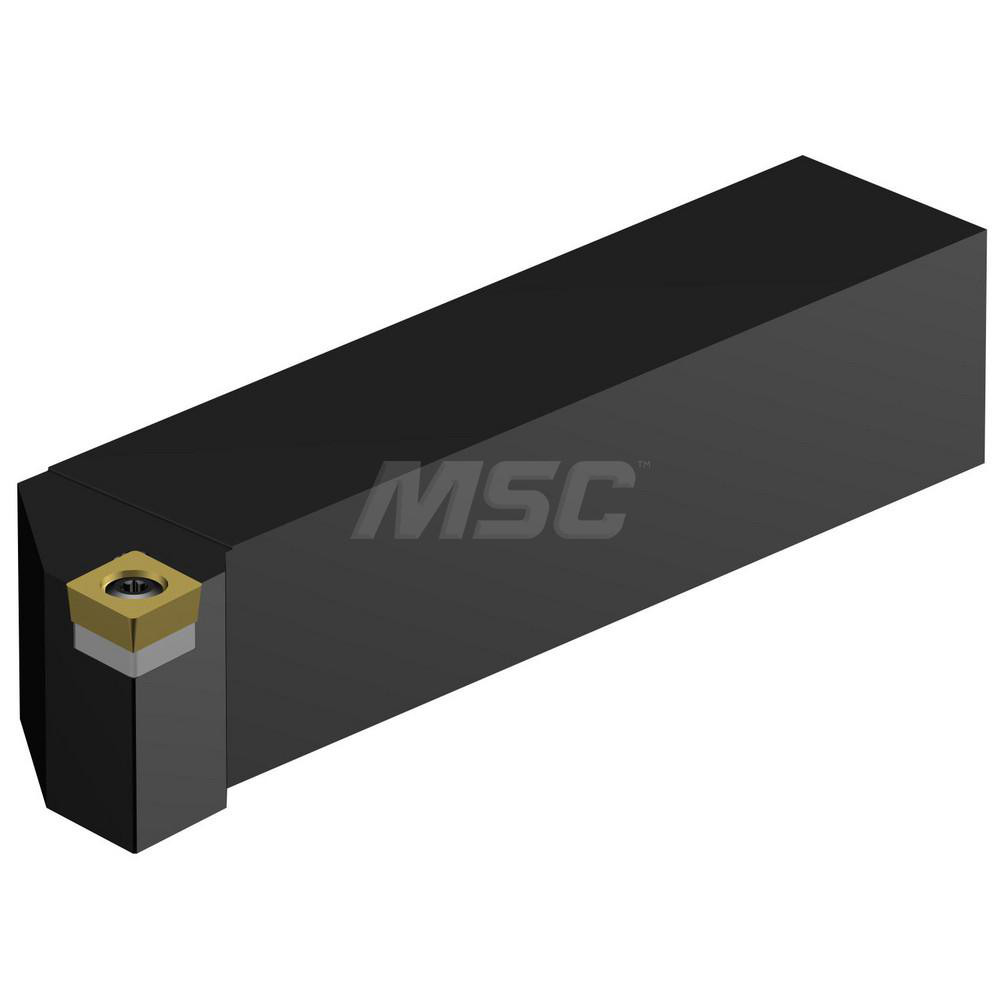

| Toolholder Style | SCLC |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 95.0 |

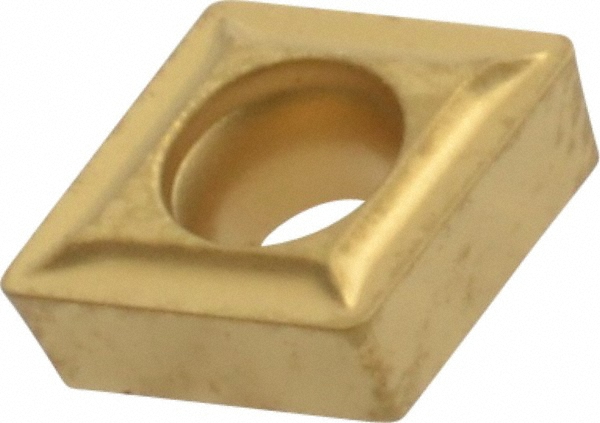

| Insert Compatibility | CC..43..; CC..1204.. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | CC43; CC1204 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.8300 |
| Maximum Overhang (Inch) | 0.8940 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (mm) | 12.90 |
| Insert Width (Decimal Inch) | 0.5080 |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 65403727 |
