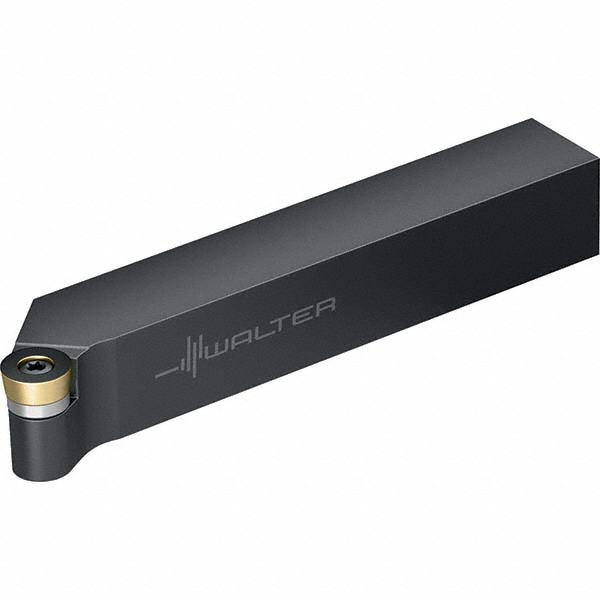

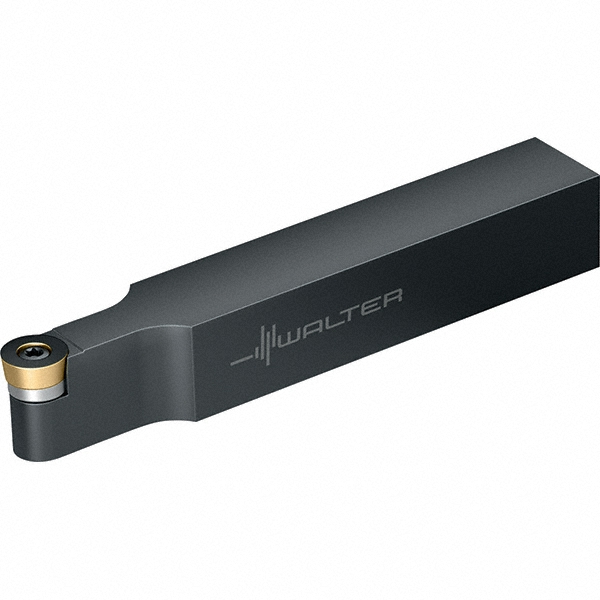

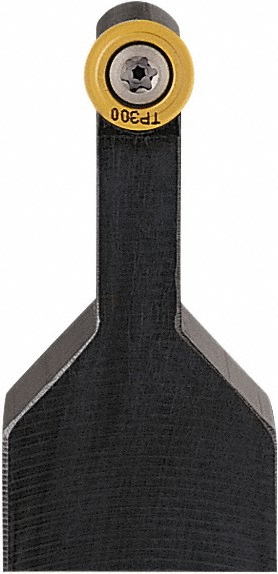

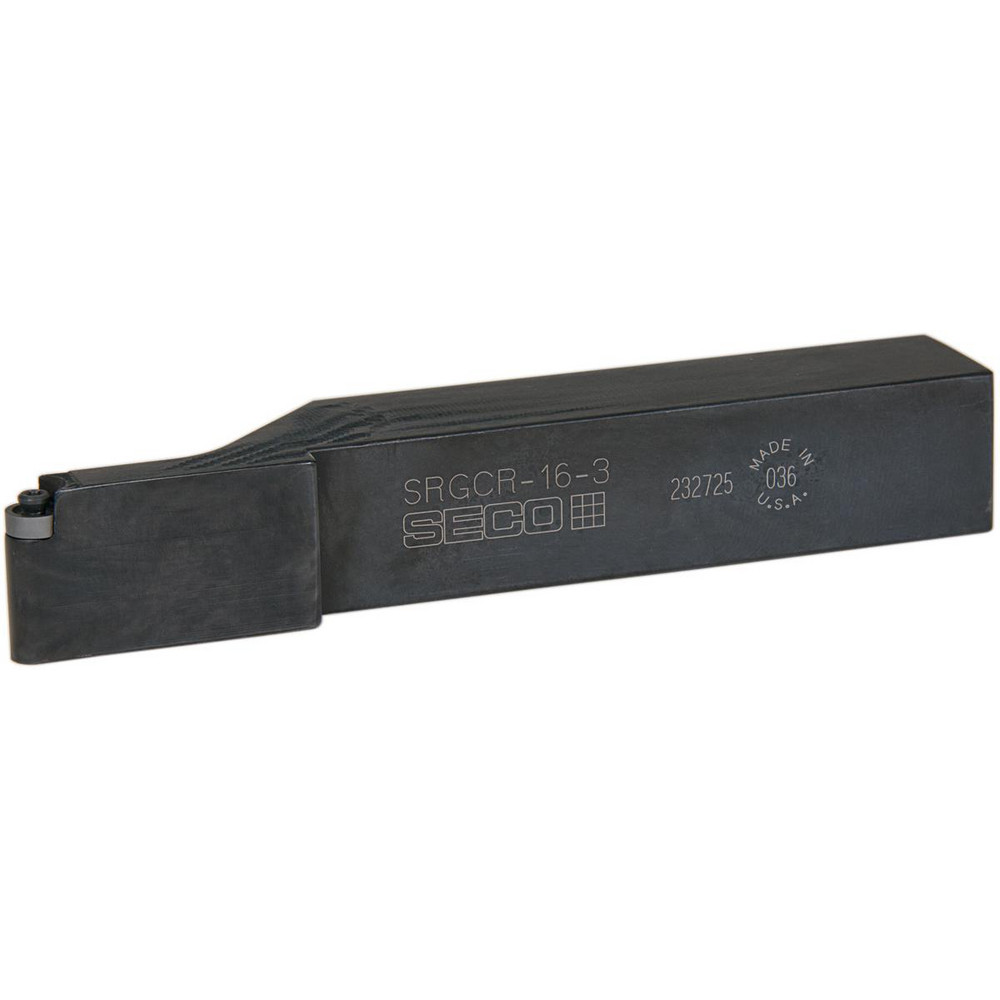

1" Shank
| Toolholder Style | SRGC |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 90.0 |
| Insert Compatibility | RC.T 43.. |
| Insert Holding Method | Screw |

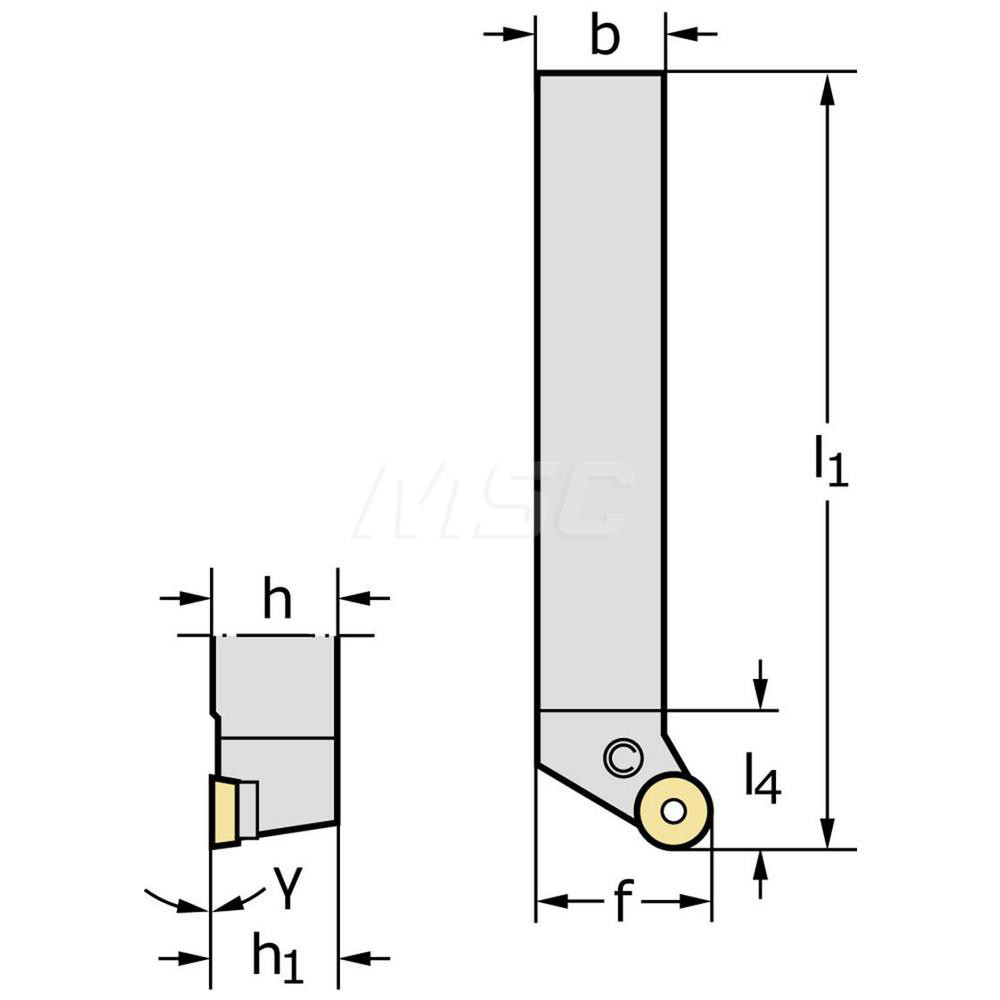

| Shank Width (Inch) | 1 |
| Overall Length (Decimal Inch) | 5.0000 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Left Hand |

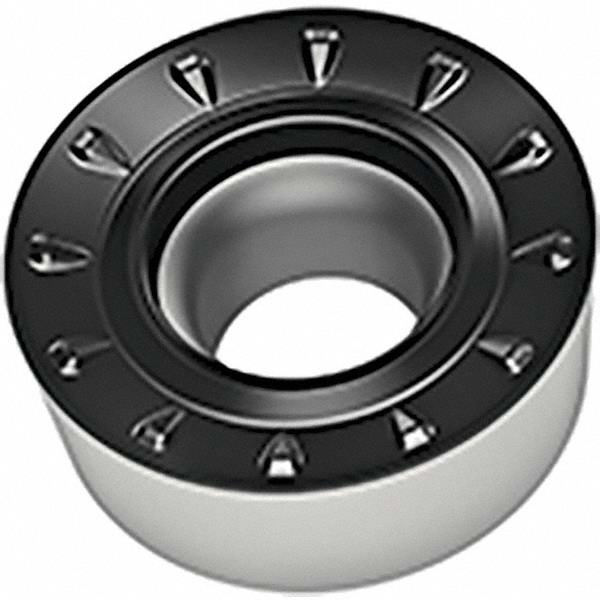

| Compatible Insert Size Code | RCT 43 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.3310 |
| Head Length (mm) | 33.82 |
| Maximum Overhang (Inch) | 1.3310 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 53061057 |
