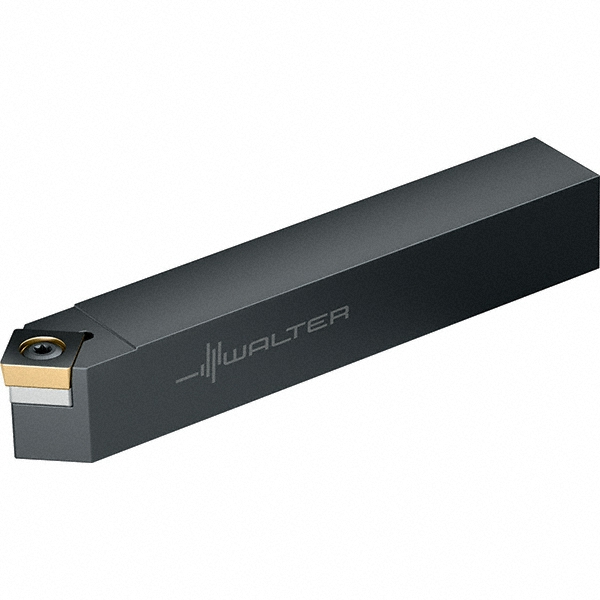

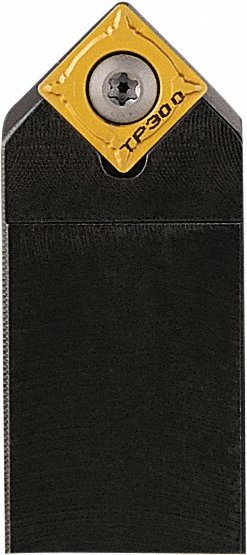

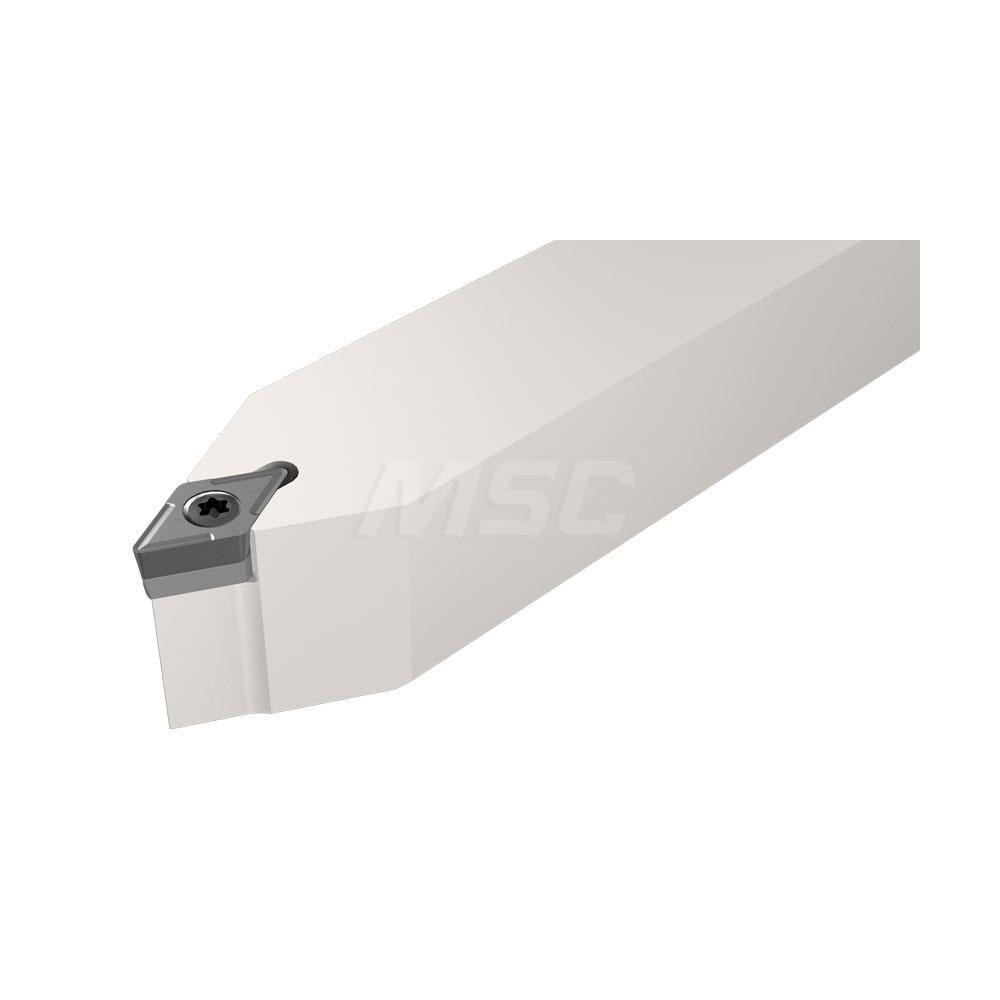

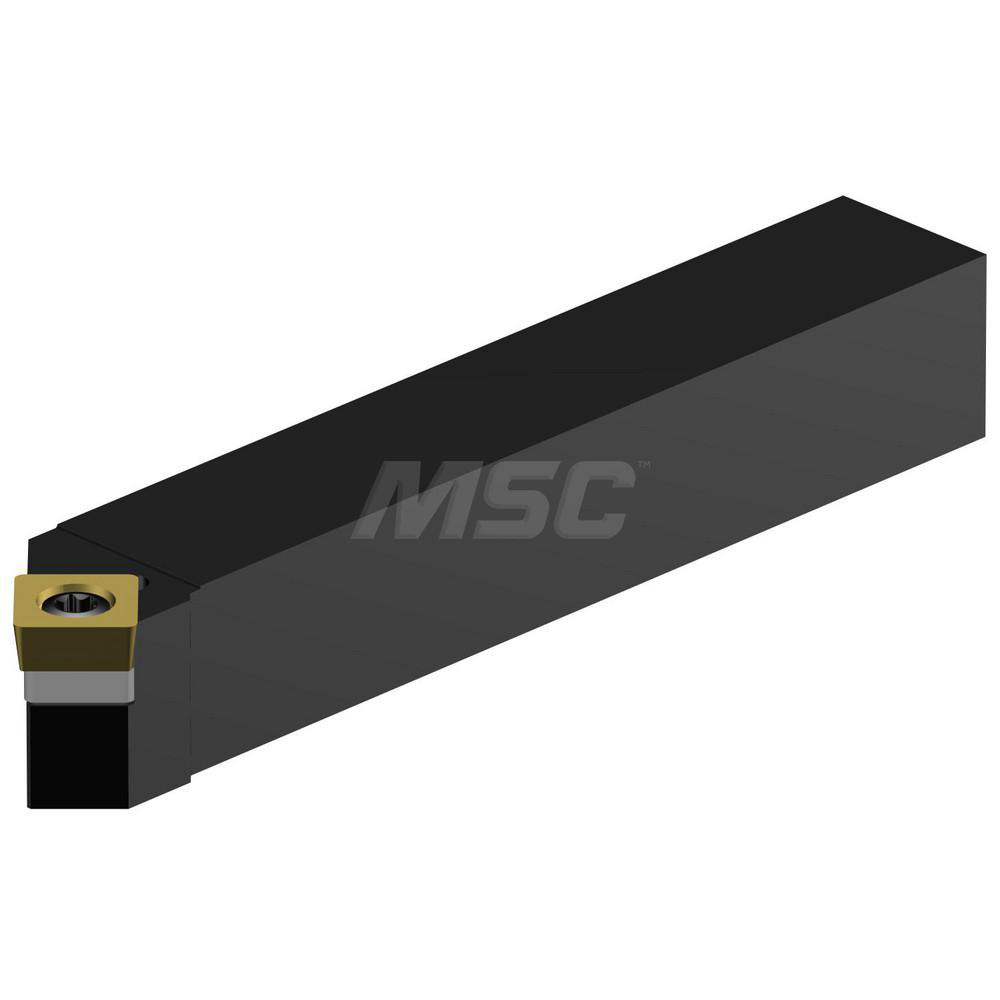

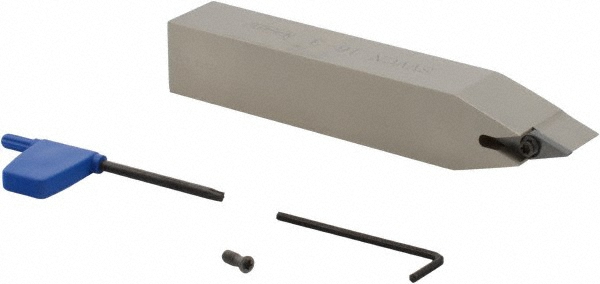

5/8" Shank
| Toolholder Style | SSDC |
|---|---|
| Hand of Holder | Neutral |
| Lead Angle | 45.0 |
| Insert Compatibility | SC..09T3..; SC..32.5.. |
| Insert Holding Method | Screw |

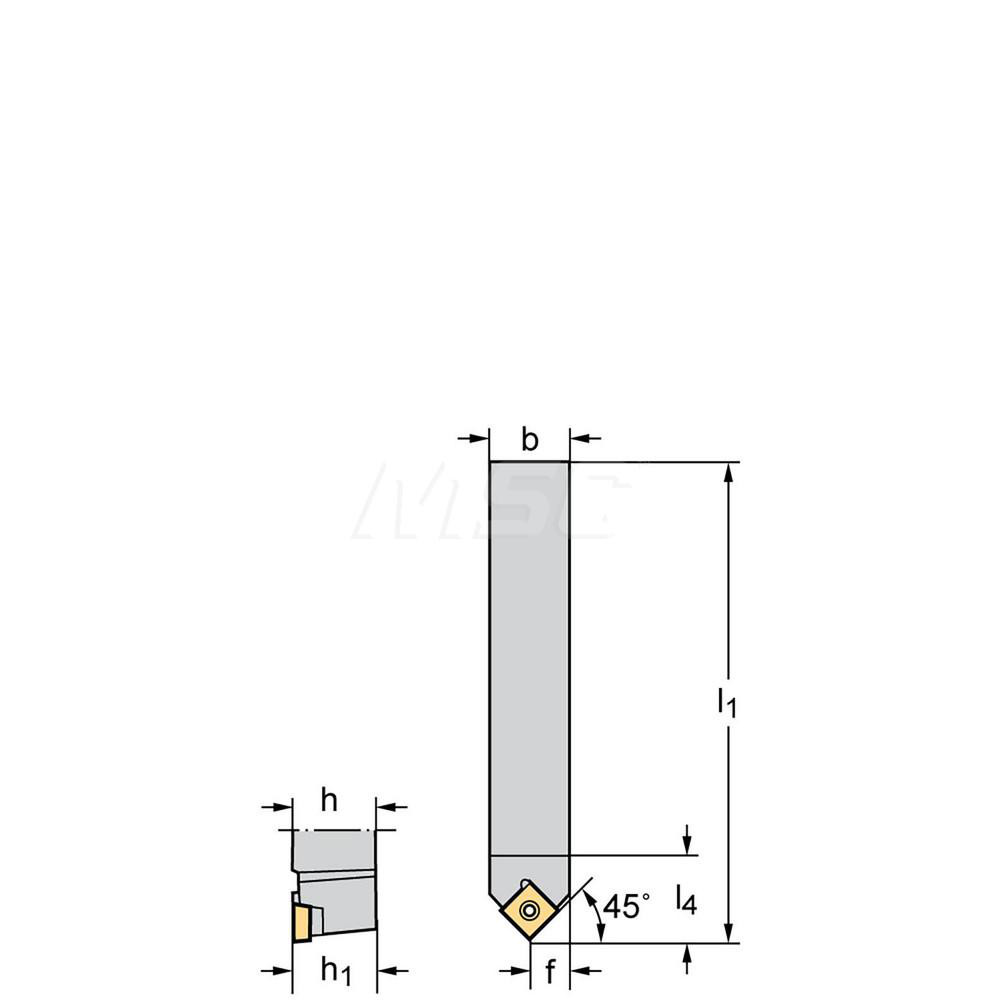

| Shank Width (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.0000 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | SC09T3; SC325 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.5940 |
| Maximum Overhang (Inch) | 0.5940 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3230 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 53060638 |
