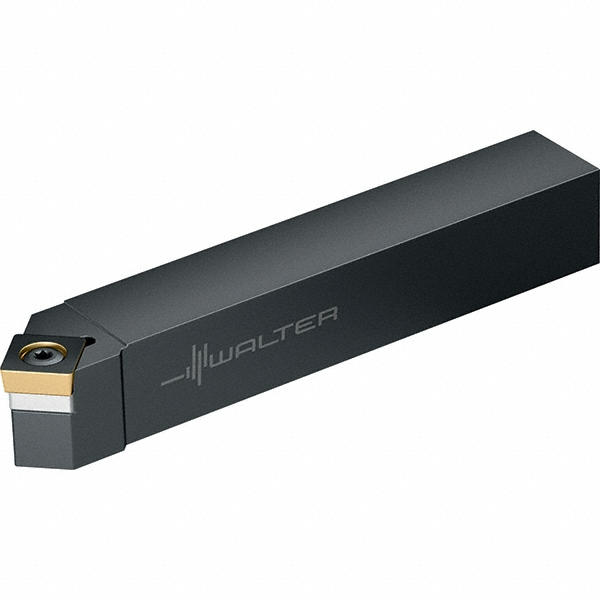

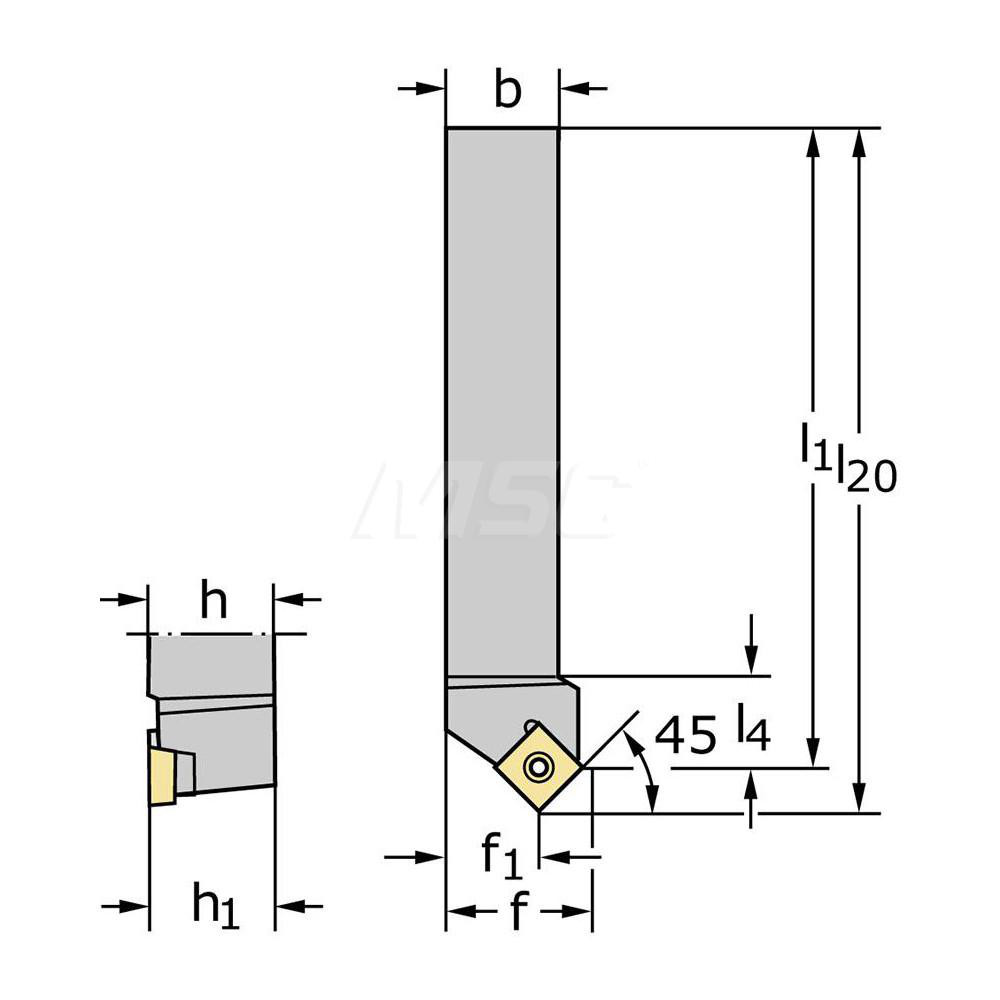

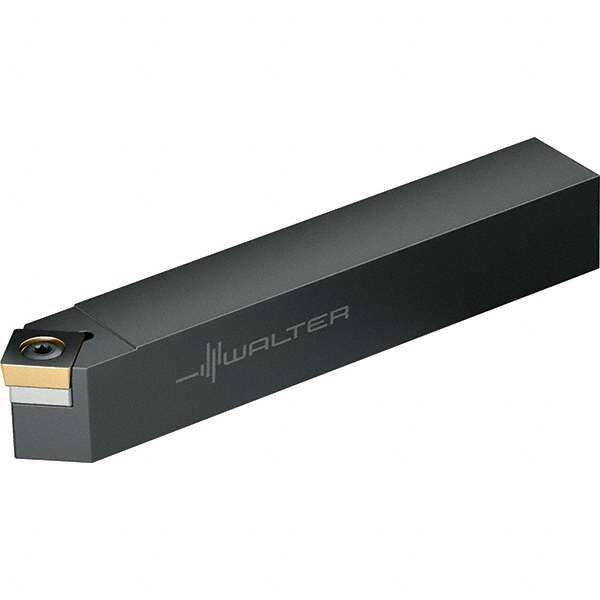

16.00 x 16.00 mm Shank, 100.00 mm OAL
| Toolholder Style | SSDC |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 45.0 |

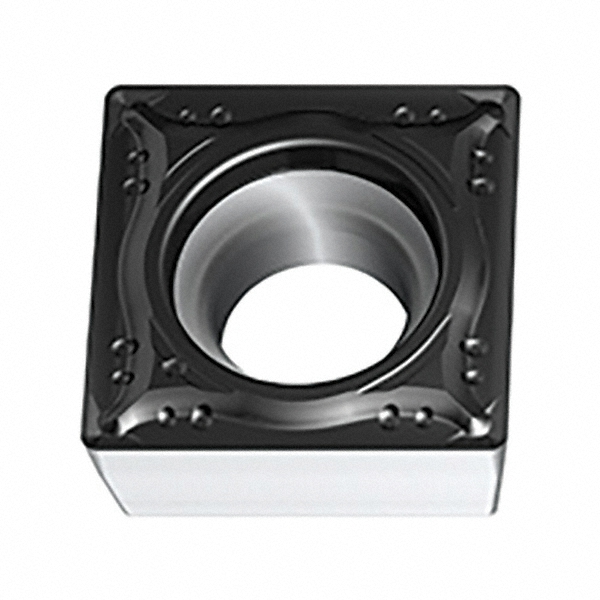

| Insert Compatibility | SC..09T3.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | SC09T3 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.5945 |
| Head Length (mm) | 15.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4291 |
| Back of Bar to Cutting Edge (mm) | 10.90 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 53060489 |
