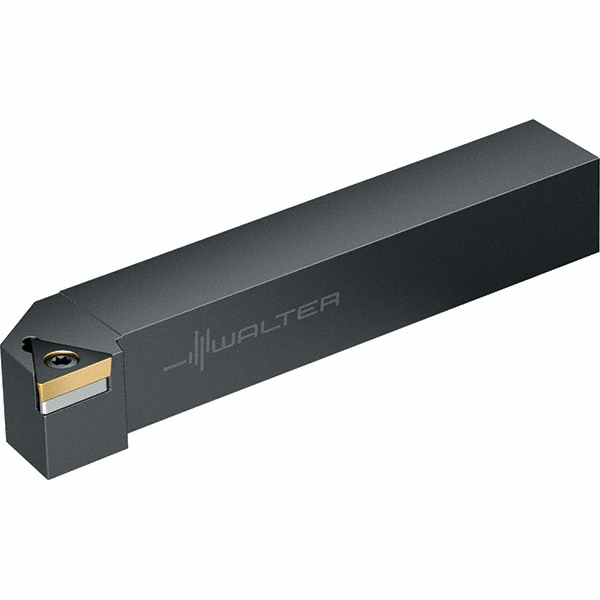

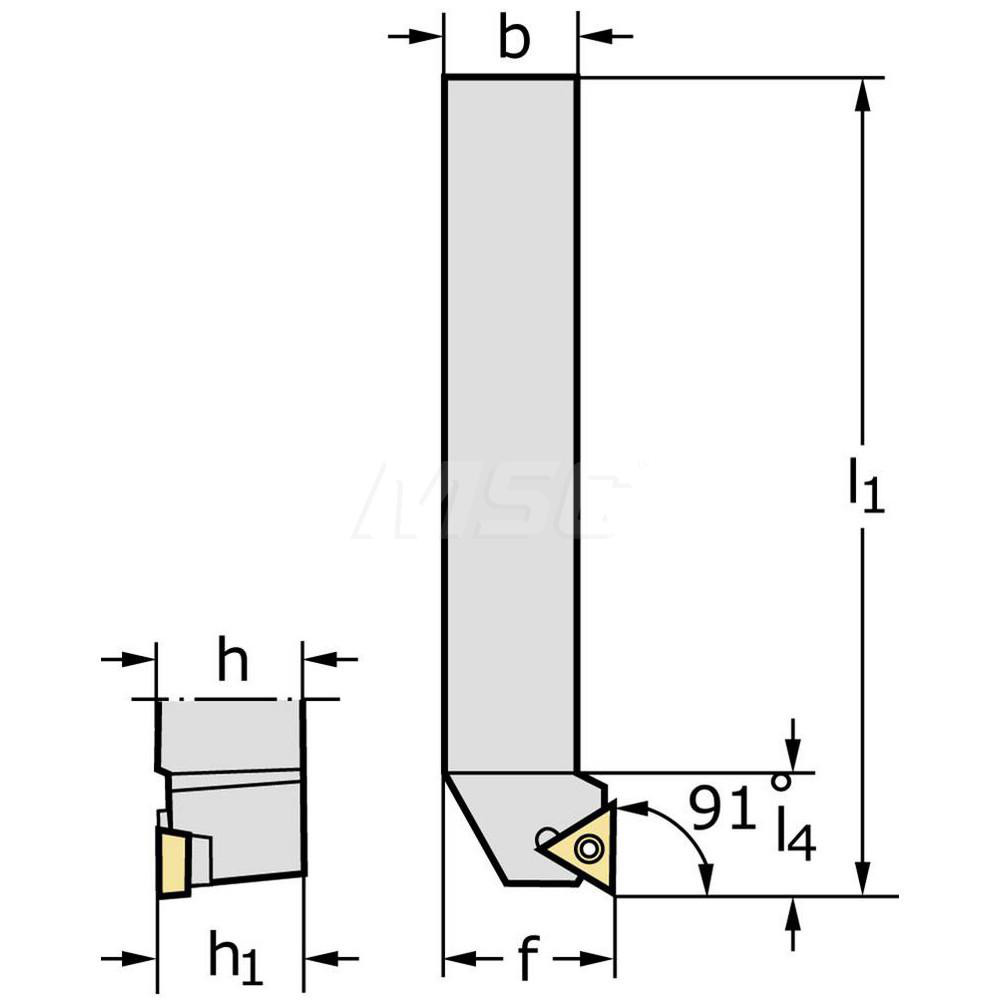

12.00 x 12.00 mm Shank, 80.00 mm OAL
| Toolholder Style | STGC |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 91.0 |
| Insert Compatibility | TC..1102.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | TC1102 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (Decimal Inch) | 0.4724 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.5118 |
| Head Length (mm) | 13.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Width (mm) | 11.00 |
| Insert Width (Decimal Inch) | 0.4331 |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 53049763 |
