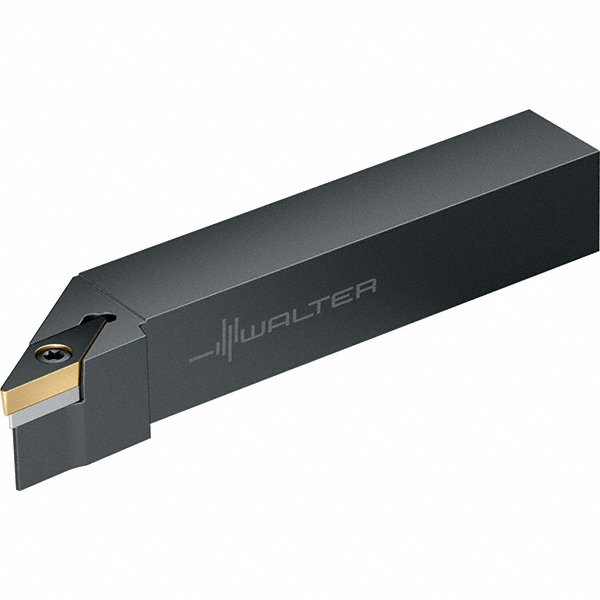

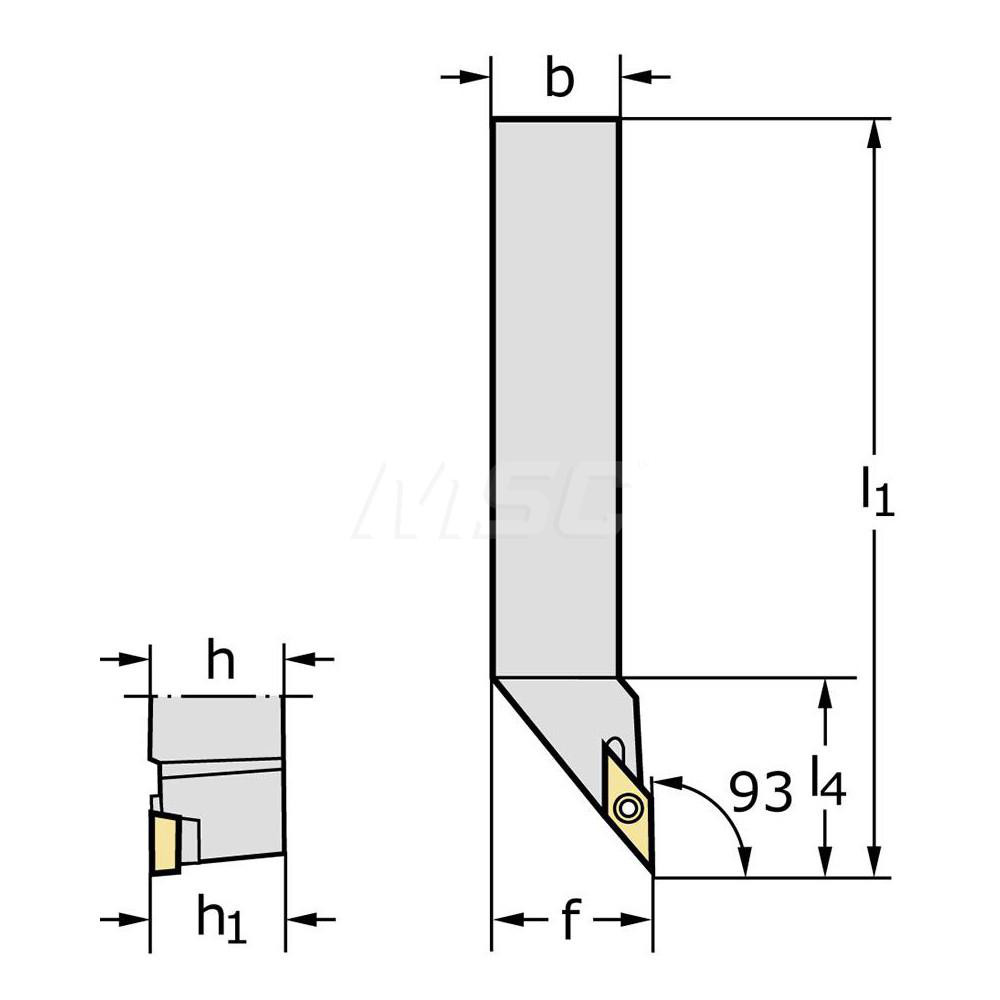

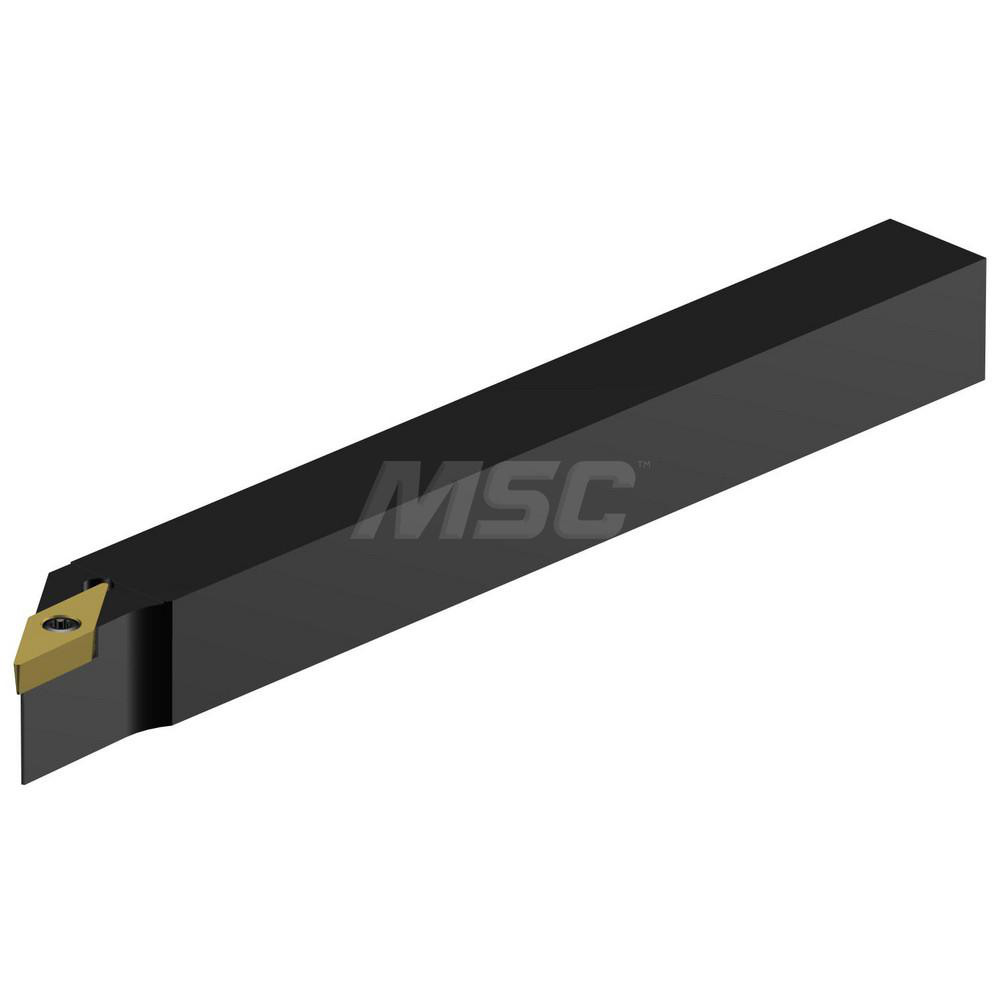

1" Shank
| Toolholder Style | SVJB |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 93.0 |
| Insert Compatibility | VB/C..1604..; VB/C..33.. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 1 |
| Overall Length (Decimal Inch) | 1.2400 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VB/C 1604; VB/C33 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Walter Turn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 6.0000 |
| Maximum Overhang (Inch) | 1.2400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (mm) | 16.61 |
| Insert Width (Decimal Inch) | 0.6540 |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 53059226 |
