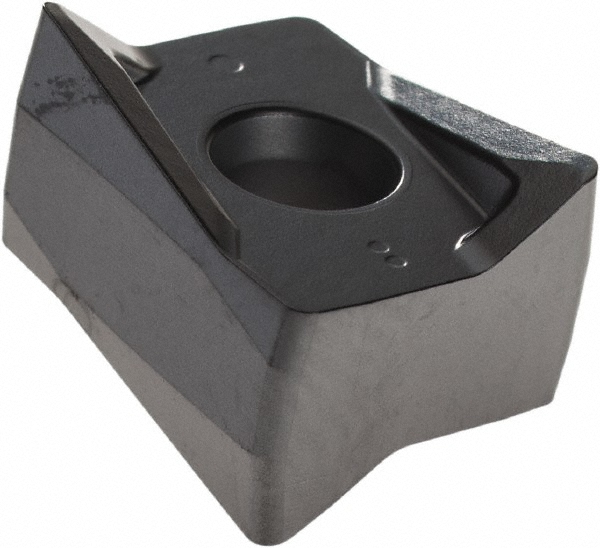

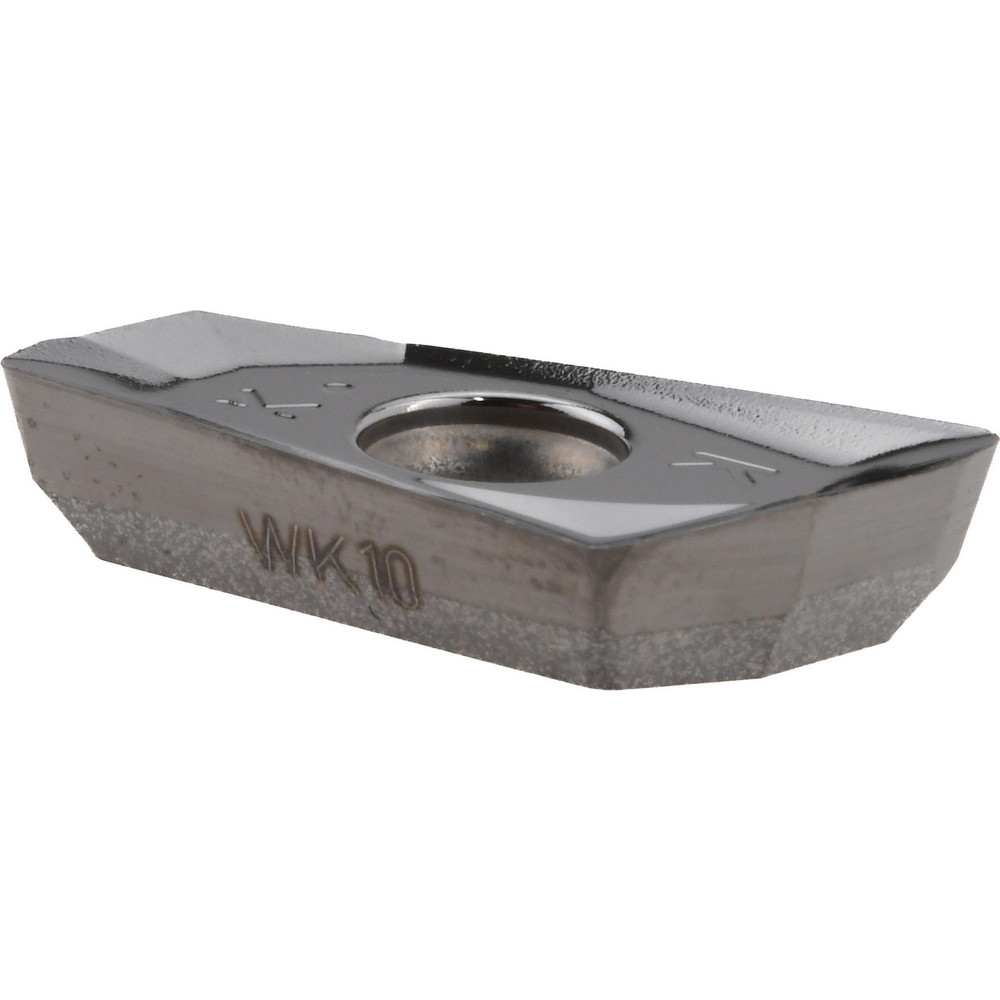

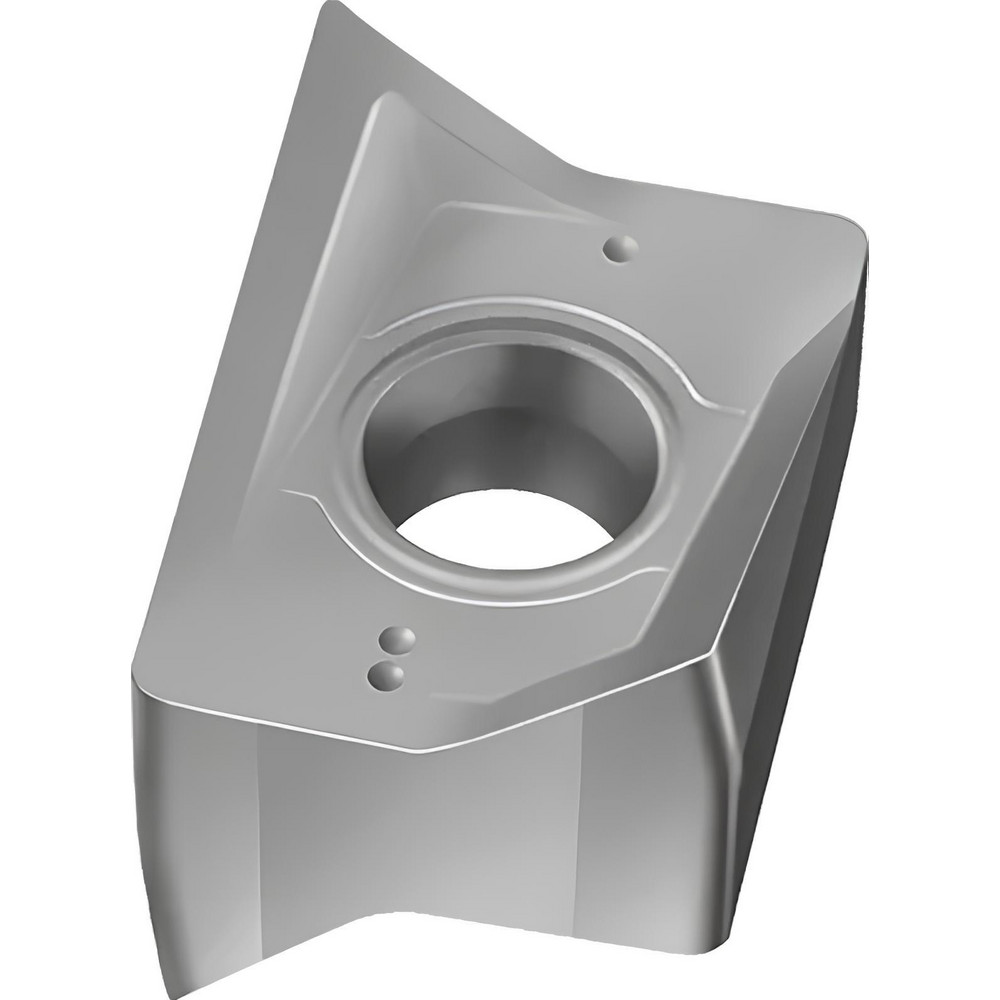

Bright/Uncoated Finish, 0.3050" Thick, 0.4330" Wide
| Insert Style | LNGX |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | WK10 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3050 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0.00 |
| Insert Size Code | 130708 |
| Material Grade | N10 |
| Inscribed Circle (Decimal Inch) | 0.4330 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5390 |
| Series | LNGX |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | LNGX130708R-L88 WK10 |
| Iso Code | LNGX130708R-L88 WK10 |
| Standards | ISO; ANSI |
| Rake Angle | 28 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | LNGX130708R-L88 |
| Cutter Series Compatibility | F2010; F4041 |
| Chip Breaker | L88 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4330 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5390 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 75439661 |
