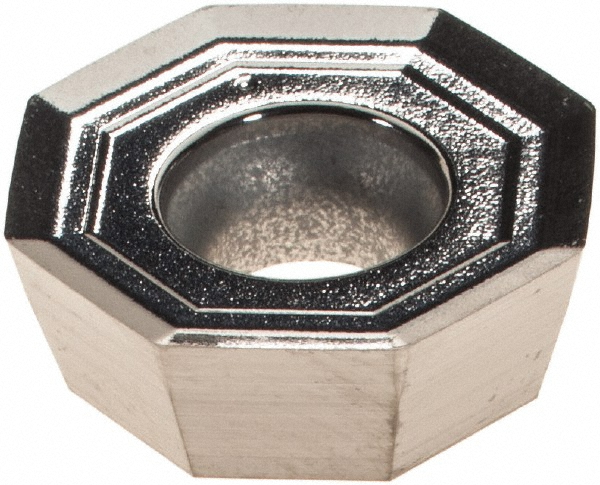

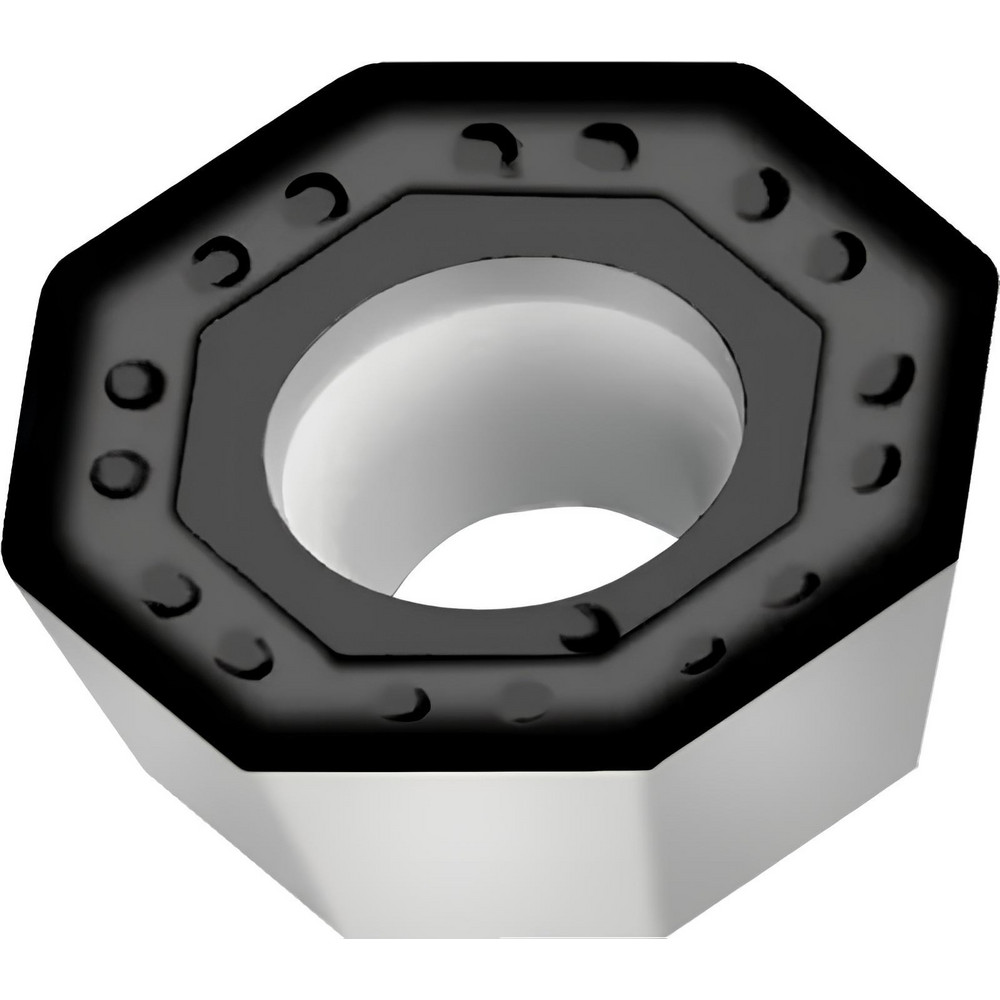

TiCN Finish, 0.2190" Thick, 0.2590" Wide
| Insert Style | ODHT |
|---|---|
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | WXN15 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
| Coating/Finish | TiCN |
| Relief Angle | 15.00 |
| Insert Size Code | 0605 |
| Material Grade | N15 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2590 |
| Series | ODHT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | ODHT0605ZZN-G88 WXN15 |
| Iso Code | ODHT0605ZZN-G88 WXN15 |
| Standards | ISO; ANSI |
| Rake Angle | 20 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | ODHT0605ZZN-G88 |
| Cutter Series Compatibility | F2010; M5004 |
| Chip Breaker | G88 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.2590 |
| Width (mm - 2 Decimals) | 6.58 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6252 |
| Country of Origin | Germany |
| MSC Number | MSC# 71712921 |
