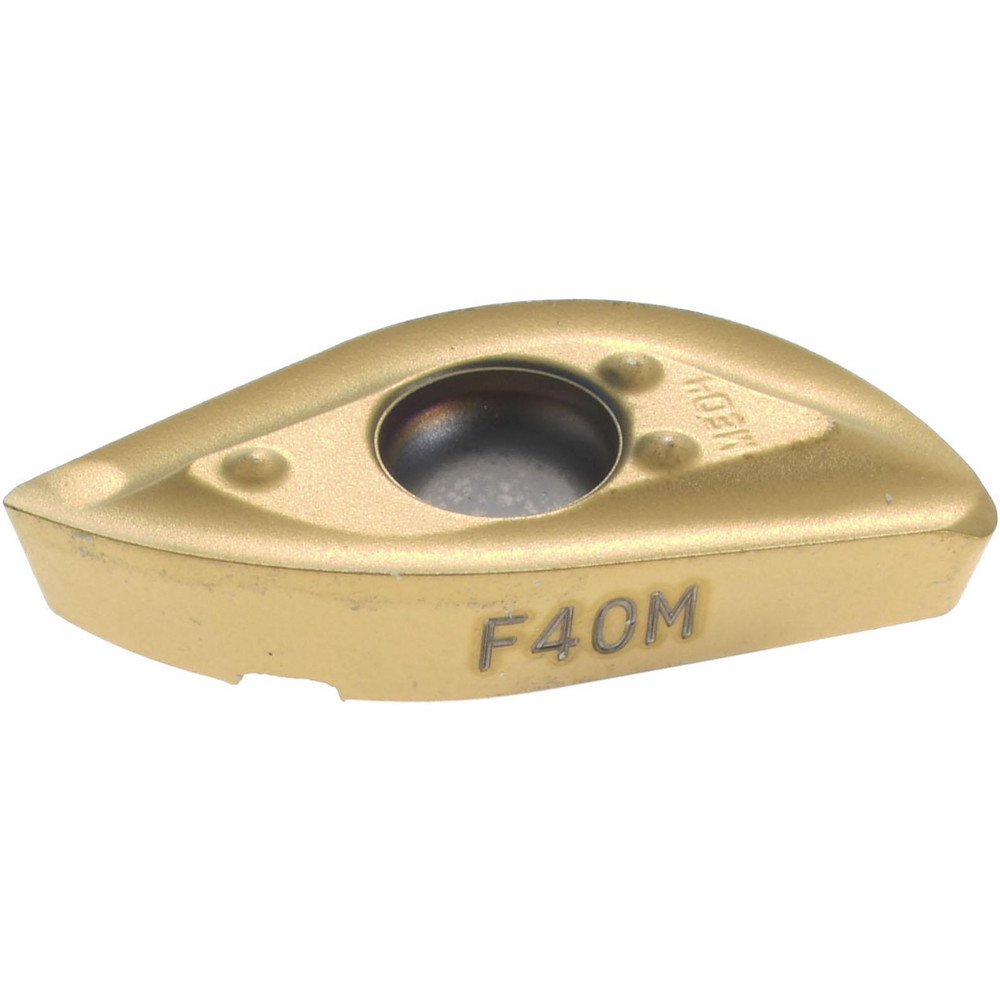

TiCN & Al2O3 Finish, 0.1180" Thick, 0.3370" Wide
| Insert Style | XDMT |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | WKP35S |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1180 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 1303080 |
| Material Grade | P35; K35 |
| Inscribed Circle (Decimal Inch) | 0.3350 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3350 |
| Series | XDMT |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | XDMT1303080R-F55 WKP35S |
| Iso Code | XDMT1303080R-F55 WKP35S |
| Standards | ISO; ANSI |
| Rake Angle | 16 |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | XDMT1303080R-F55 |
| Cutter Series Compatibility | F2339 |
| Chip Breaker | F55 |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.3370 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3350 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 66139452 |
