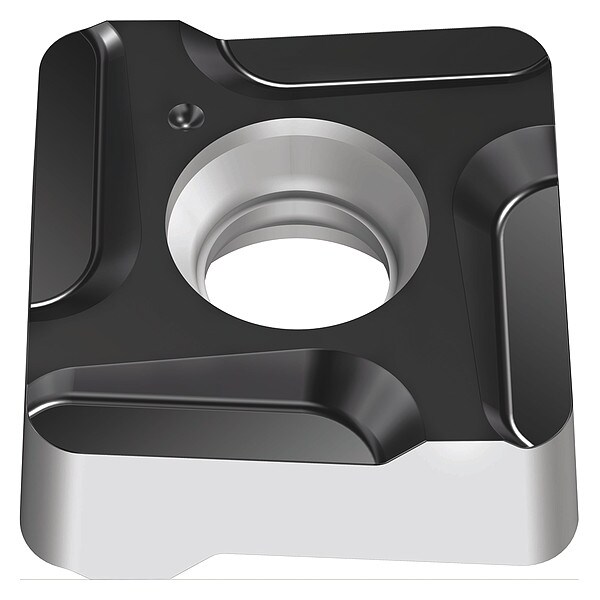

Milling Insert, Square, Negative, 0 Degrees, SNEX, WKP35S
| Item | Square Milling Insert |
|---|---|
| Insert Style | SNEX |
| Insert Size | 15T612 |
| Corner Radius | 3/64 in |
| ISO Number | SNEX15T612R-B67 |
| Rake | Negative |
| Inscribed Circle | 5/8 in |
| Chip-Breaker | Yes |
| Number of Cutting Edges | 4 |
| Material - Machining | Carbide |
| Coating Process | CVD |
| Shape | Square |
| Thickness | 0.28 in |
| Clearance Angle | 0 deg |
| Chip-Breaker Code | B67 |
| ANSI Code | SNEX15T612R-B67 |
| Manufacturer Grade | WKP35S |
| Measurement System | Fractional Inch |
| Finish - Machining | TiCN+Al2O3+ |
| Hole Type | With Hole |
| Package Quantity | 1 |
